Arize Element
®
L1000 Gen2 Installation Guide

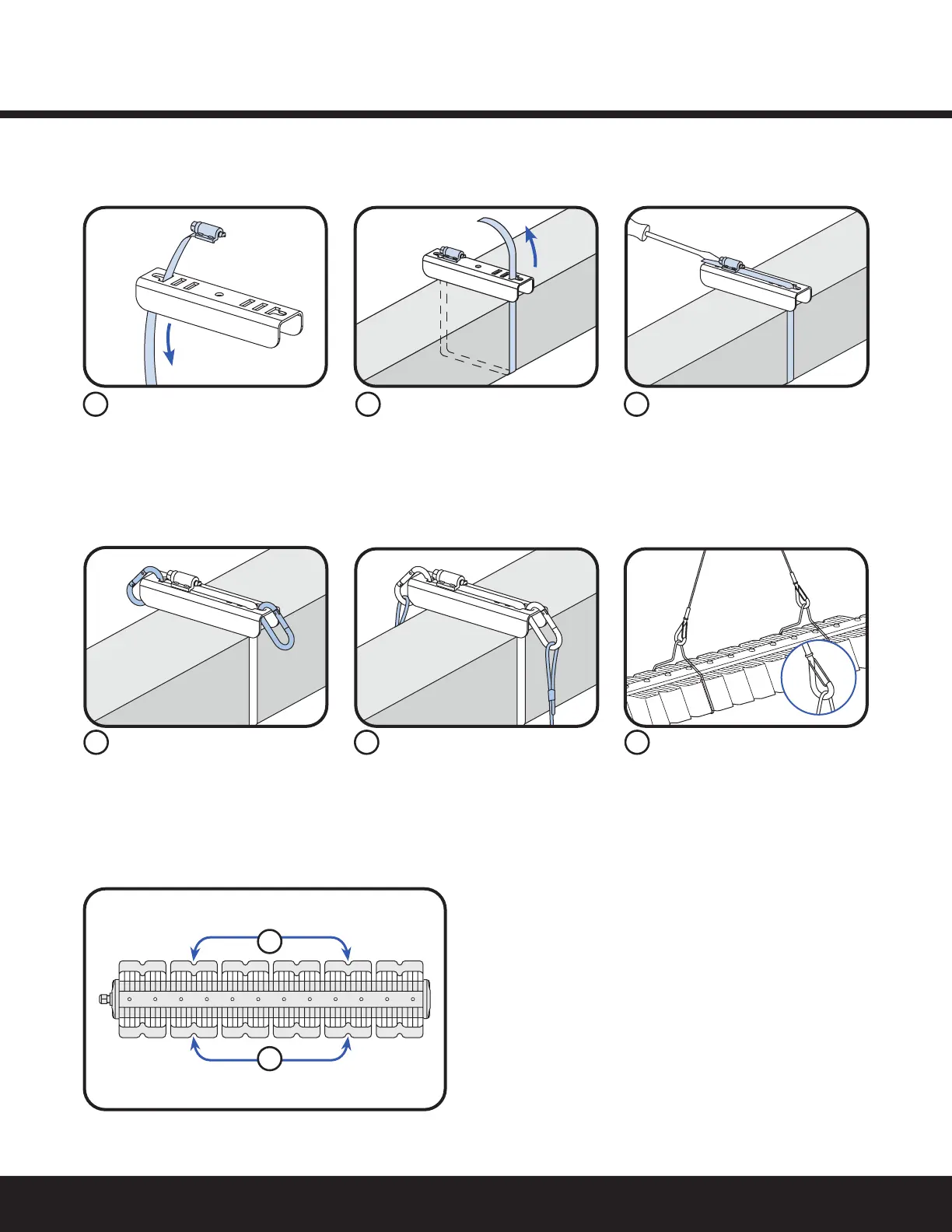

Installation Steps for Perpendicular 90° Universal Mounting Kit
First determine which 2 slots on
the metal bracket most closely
correspond to the structural
member width. Insert strap of
the worm drive clamp through
the rst slot of the metal
bracket from the top.
Place the metal bracket on
top of the structural member
and wrap the strap around
the bottom of the structural
member and back up through
the second slot.
Secure the metal bracket on
to the top of the structural
member by inserting the
strap into the open end of the
clamp and tightening down
the screw.
Attach a carabiner to each
side of the metal bracket.
Attach a support cable to each
carabiner and ensure the gates
are closed.
Attach other end of cables
to light module. Ensure hook
gates are closed.
1.6 Installation with Custom Brackets
If you choose to use your own
custom mounting method, attach
to points A.
1 2 3
4 5 6
A
A
