L1000 Gen2 Installation Guide
2 Installation of the Driver

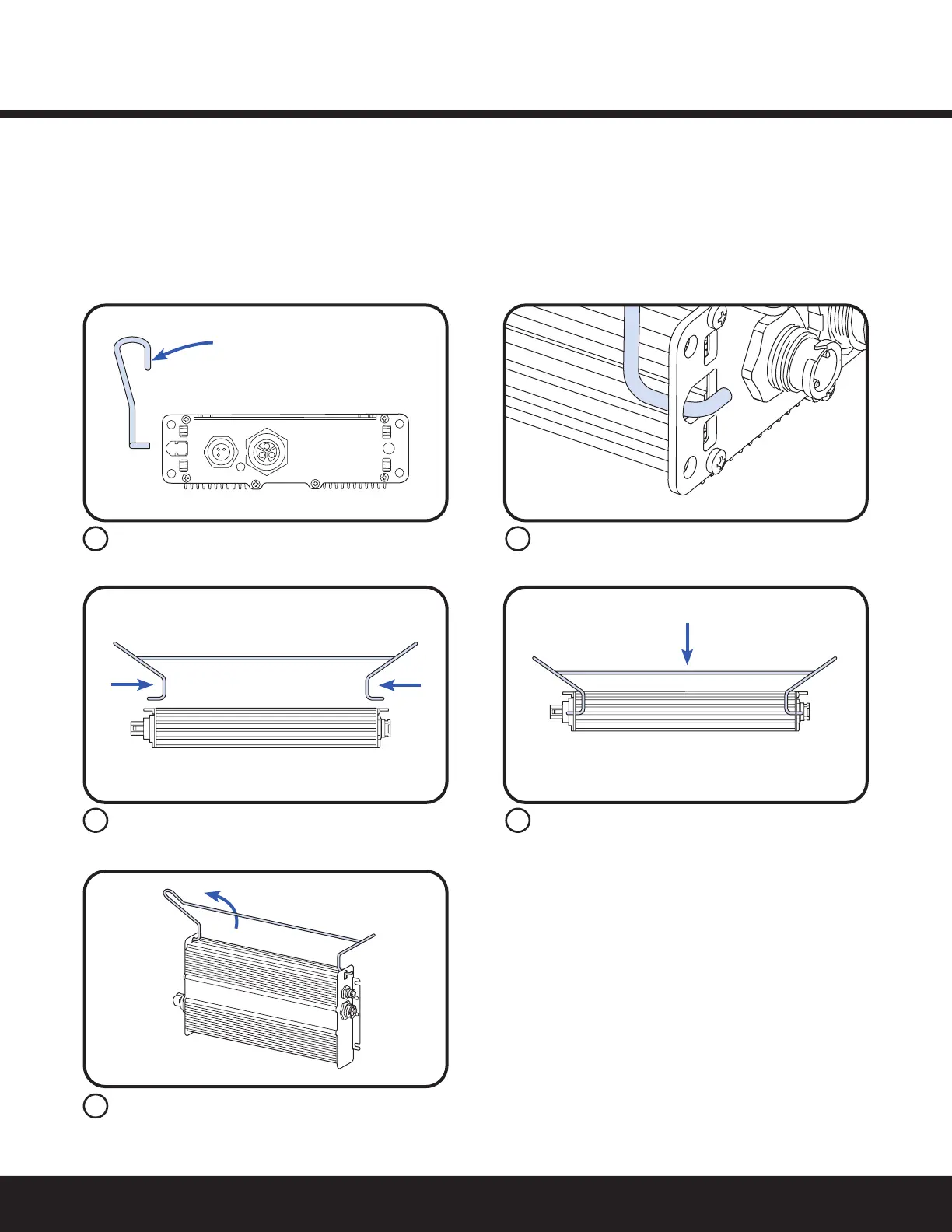

Orient driver perpendicular to the bracket.
Bracket
Squeeze bracket arms together & slide
hook into rst driver mounting hole.
Let driver swing free upright & ensure
hooks on both sides are correctly engaged.
Ensure rst end of bracket hook is lined up with
oval mounting hole of driver.
Repeat on opposite driver mounting hole.
If not preassembled, install driver bracket onto driver.
2.1 Installation of Driver Bracket
1
3
5
2
4
