GE Arize Element L1000 Gen2 - Selection of Mounting Hardware; Installation with Hangers

9
Arize Element
®
L1000 Gen2 Installation Guide
2.2 Selection of Mounting Hardware

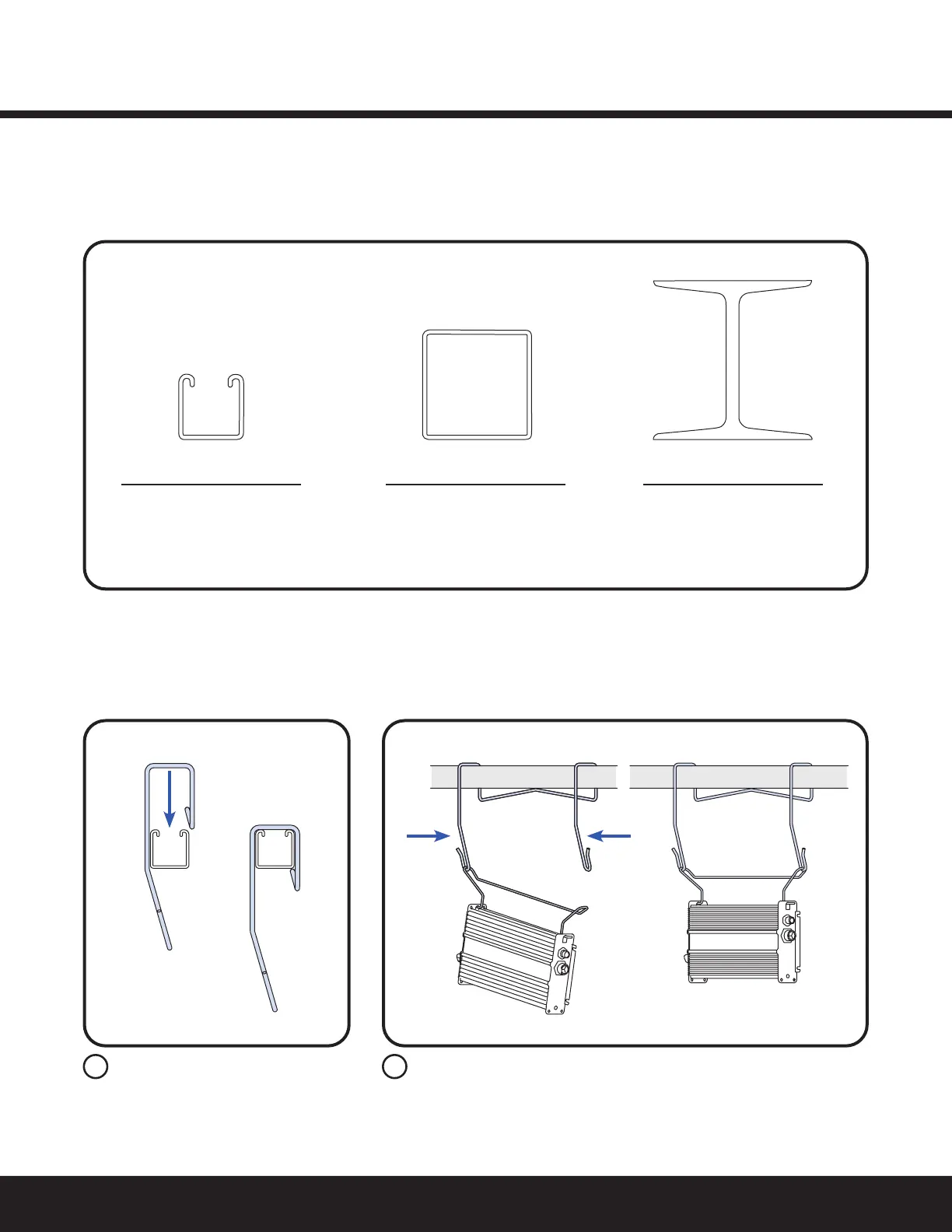

Based on the cross section of the structural member select the correct hanger or mounting cable.
Hang brackets of driver module
onto hanger and push down until
brackets snap into place.
Hang driver bracket from one hook, then hang other driver
bracket end by pressing hanger arms together.
2.3 Installation with Hangers
SNAP!
Use standard hanger 41 mm
OR
Oset hanger 41 mm
to clear the bottom of the Unistrut
Use standard hanger 70 mm Use 0.5 m universal cable
Unistrut 41 mm
Square 70 mm Other Structural Members
1 2
