INDOOR UNIT CONTROLS and COMPONENTS
PAGE 14
ENGLISH
Indoor Unit Introduction
Display
Fan Motor
Louver Motor
1
2
3
4
(PCB)
Piping Temperature Sensor
Coil Supply Board
Terminal Block
5
6
7
8
5
7
6
4
8
1
3
2

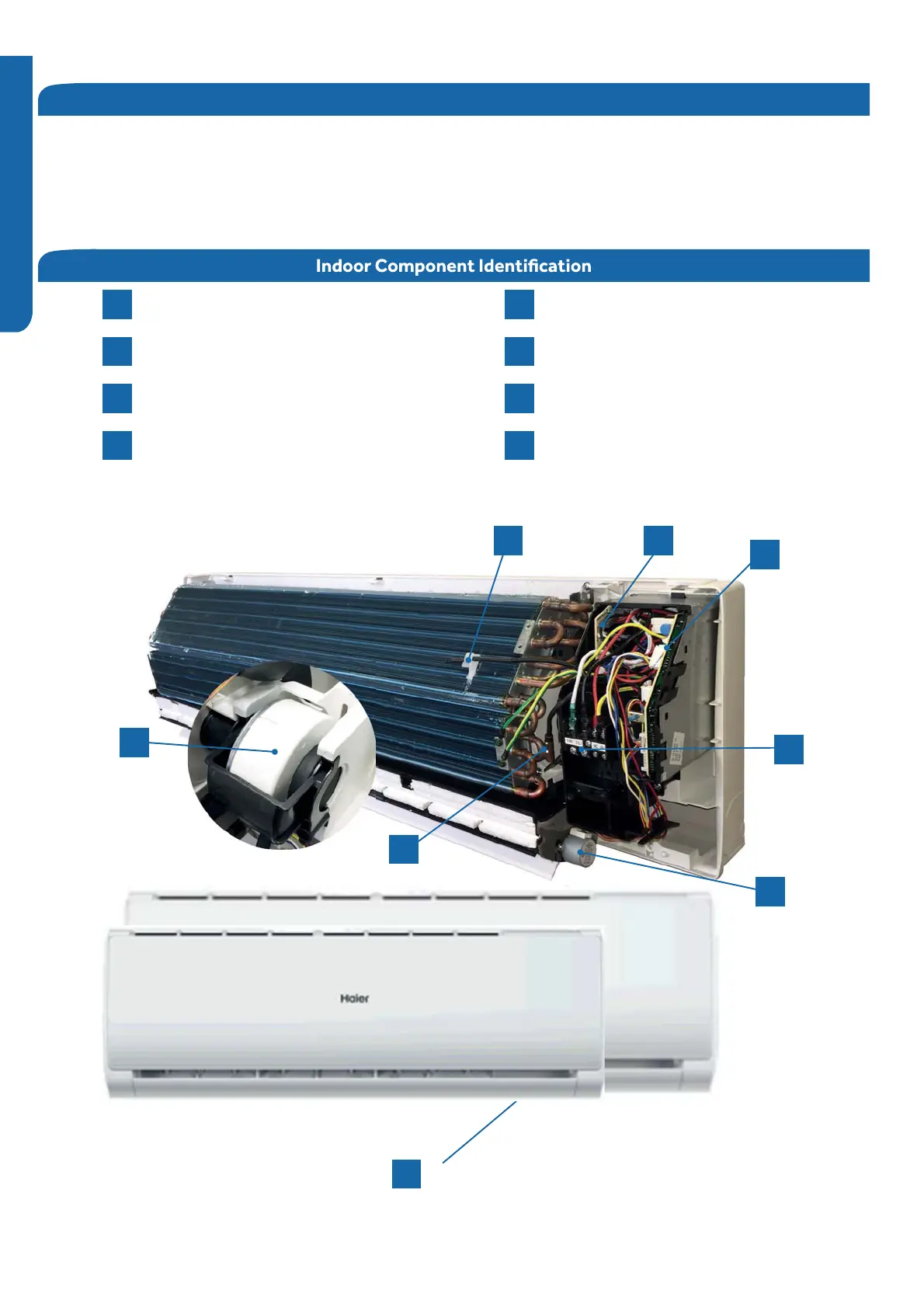

The indoor unit is mounted high on the wall to provide conditioned air to the space.Features of the system include: variable
speed blower operation that speeds up and slows down with changes in demand,moving louvers to direct air, indoor air
temperature sensing, evaporator coil temperature sensing, consumer operation display,evaporator coil with metering
device located in outdoor unit, and an emergency operation switch.
Ambient Temperature Sensor
