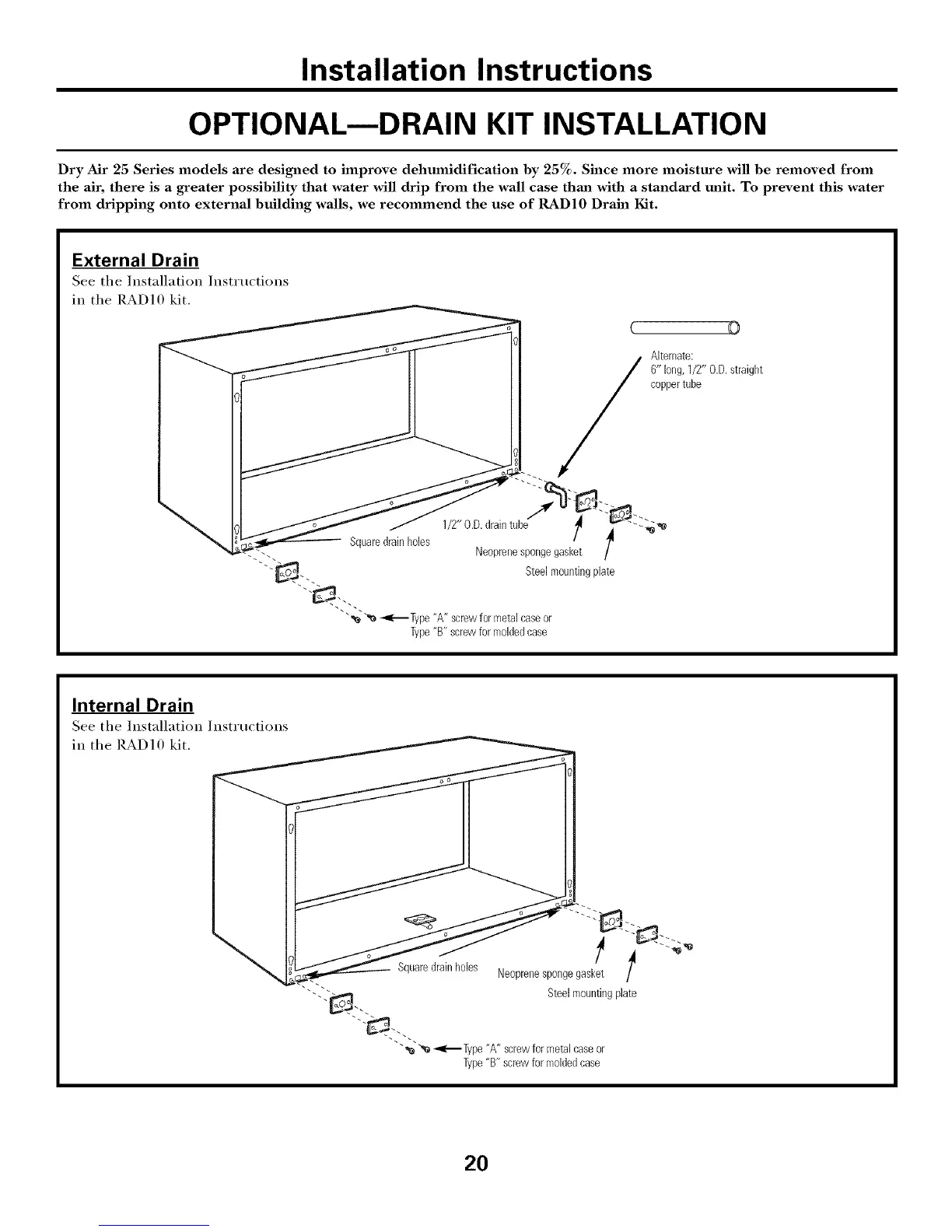

Installation Instructions
OPTIONAL--DRAIN KIT INSTALLATION
Dry Air 25 Series models are designed to improve dehumidification by 25%. Since more moisture will be removed from
the air, there is a greater possibility that water will drip from the wall case thml with a standard mlit. To prevent this water
from dripping onto external building walls, we recommend the use of RAD10 Drain Kit.
External Drain
See the Installation ]nstHwtions
in the RADIO kit.
¢
/
©
Alternate:
6"long, 1/2" O.D. straight
coppertube
Squaredrainholes
"_ "_ _._ Type"A" screwfor metalcaseor
Type"B" screwfor moldedcase
1/2" O.D.draintube / 4:_'_'" :'_'_
Neoprenespongegasket /
Steelmountingplate
Internal Drain
See the Installation Instructions
in the RAD 10 kit.
Squaredrainholes
,I
Neoprenespongegasket /
Steelmountingplate
"_ -_ _-_ Type"A" screwfor metalcaseor
Type"B" screwfor moldedcase
