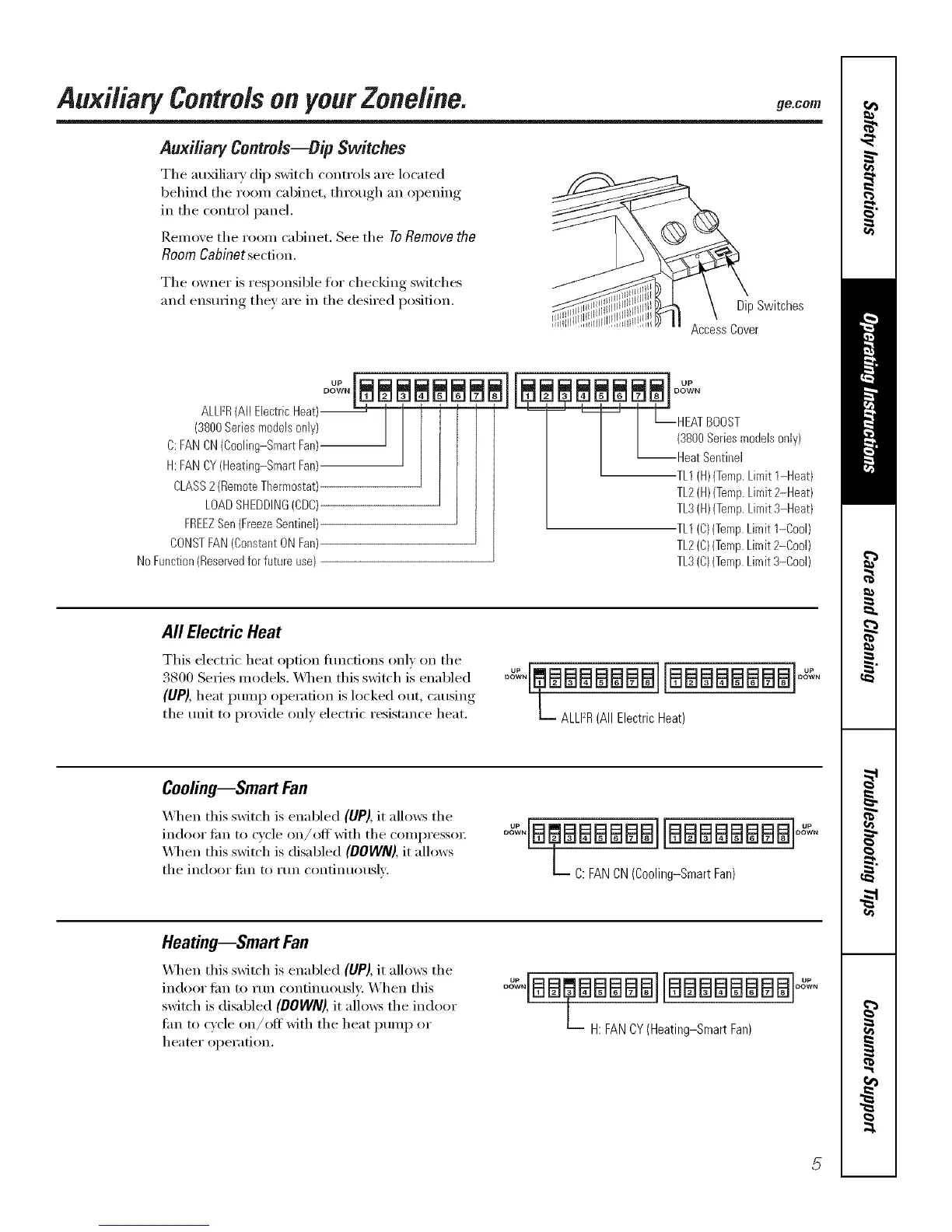

GE AZ38H12DABM2 User Manual

Auxiliary Controls onyour Zone/ine. ge.com
Auxiliary Controls--Dip Switches
The au_liary dip switch controls are located
behind the ro()m cabinet, through an opening
in the control panel.
Remove the room cabinet. See the To Remove the
Room Cabinet section.
The owner is responsible for checking switches
and ensuring they are in the desired position.
DipSwitches
Access Cover
ALLI2R(All Electric Heat)--
(3800Series models only)
C:FAN CN(Cooling-Smart Fan)
H:FAN CY(Heating-Smart Fan)
CLASS2 (Remote Thermostat)
LOADSHEDDING(CDC)
FREEZSen (FreezeSentinel)
CONSTFAN(Constant ON Fan)
No Function(Reservedfor future use)
-- _ [--HEAT BOOST
I
(3800Seriesmodels only)
--Heat Sentinel
TL1(H)(Temp. Limit 1-Heat)
TL2(H)(Temp. Limit 2-Heat)
TL3(H)(Temp. Limit 3-Heat)
TL1(C)(Temp. Limit 1-Cool)
TL2(C)(Temp. Limit 2-Cool)
TL3(C)(Temp. Limit 3-Co01)
All Electric Heat
This electric heat option flmcfions only on the
3800 Series models. X,_q_enthis switch is enabled
(UP), heat pump operation is locked out, causiw,,
the unit to provide only electric resistance heat.
oo%4maaaaaawl[BaaBaaaaloo%.
L ALLFR (All Electric Heat)
Cooling--Smart Fan
_Al_en this switch is enabled (UP), it allo_vs the
indoor lira to cycle on/offwith the compresso_:
\A]_en this switch is disabled (DOWN),it allows
the indoor tilIl to I'tln contintlOtlslv.
° "[B?BBBBBBBBBBBBB
C: FAN CN (Cooling-Smart Fan)
Heating--Smart Fan
\_l_en this switch is enabled (UP), it allo_vs the
indoor tim to run continuously. When this
switch is disabled (DOWN),it allo_:s the indoor
lira to cycle on/off with the heat pump or
heater opei'ation.
° °IBB BBBBBBBBBBBBB
L__ H: FAN CY (Heating-SmartPan)
