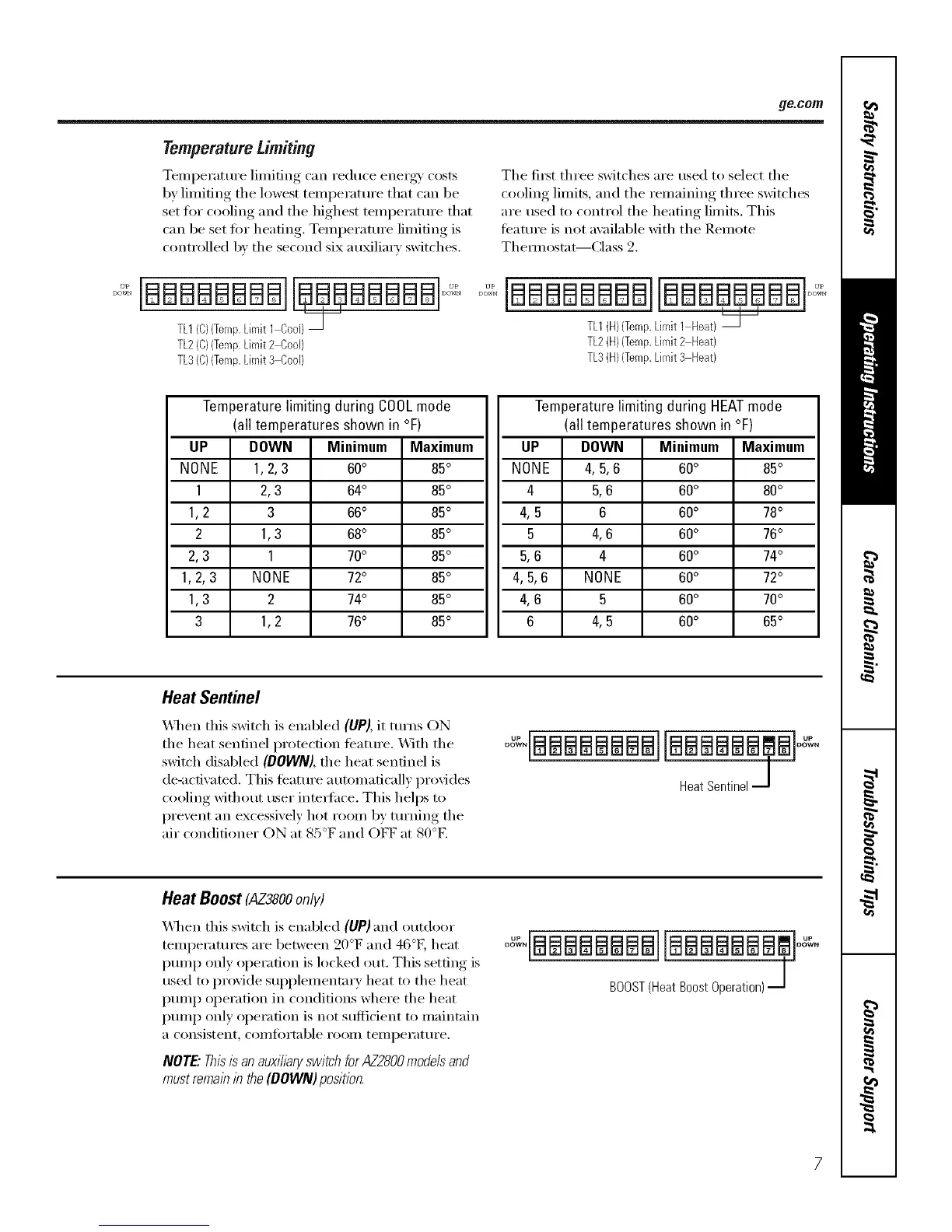

Page #7 background imageLoading...
Page #7 background image
ge.com
Temperature Limiting
Temperature limiting can reduce energy' costs
by limiting the lowest temperature that can be
set fl)r cooling and the highest temI)erature that
can be set fin" heating, Temperature limiting is
controlled by the second six au_liarv switches,
The fit_t three switches are used to select tile
cooling limits, and the remaining three switches
are used to control the heating limits, This
teatm'e is not available with the Remote
Them_ostat--Class 2.
iBBBBBBBBi BBBBBBB
TL1/C)(Temp.Limit 1 Cool)"_'-
TL2(C)(Temp.Limit 2 Cool)
TL3(C)(Temp.Limit 3 Cool)
°°%iBBBBBBBBiIBBB
TL1(H)(Temp.Limit 1 Heat)
TL2(H)(Temp.Limit 2 Heat)
TL3(H}(Temp.Limit 3 Heat)
Temperature limiting during COOLmode
(all temperatures shown in °F)
UP DOWN Minimum Maximum
NONE 1, 2,3 60° 85°
1 2,3 64° 85°
1,2 3 66° 85°
2 1,3 68° 85°
2,3 1 70° 85°
1,2,3 NONE 72° 85°
1,3 2 74° 85°
3 1,2 76° 85°
Temperature limiting during HEATmode
(all temperatures shown in °F)
UP DOWN Minimum Maximum
NONE 4, 5,6 60° 85°
4 5,6 60° 80°
4,5 6 60° 78°
5 4,6 60° 76°
5,6 4 60° 74°
4,5,6 NONE 60° 72°
4,6 5 60° 70°
6 4,5 60° 65°
Heat Sentinel
_,_]/eil this switch is enabled (UP), it turns ON
the heat sentinel protection teatm'e. _,_]th the
switch disabled (DOWN), the heat sentinel is
de-actiw_ted. This teatm'e automatically provides
cooling without user intedhce. This helps to
prevent an excessively hot room by turning the
air conditioner ON at 85°F and OFF at 80°E
oo%qaBBBBaBB]laaaaaaa,ale,,.
Heat Sentinel J
Heat Boost (AZ3800only)
_&]/en this switch is enabled (UP) and outdoor
teml)eratures are between 20°F and 46°E heat
pmnp only operation is locked out. This setting is
used to provide SUl)plementa_ T heat to tile heat
pmnp operation in conditions where tile heat
pmnp only operation is not sufficient to maintain
a consistent, coi//ti)rtable i'OOlil tei//l)ei'at/li'e.
NOTE."ThisisanauxilbryswitchforAZ2800modelsand
mustremabb the(DOWN)position.
BOOST(Heat Boost Operation) J
