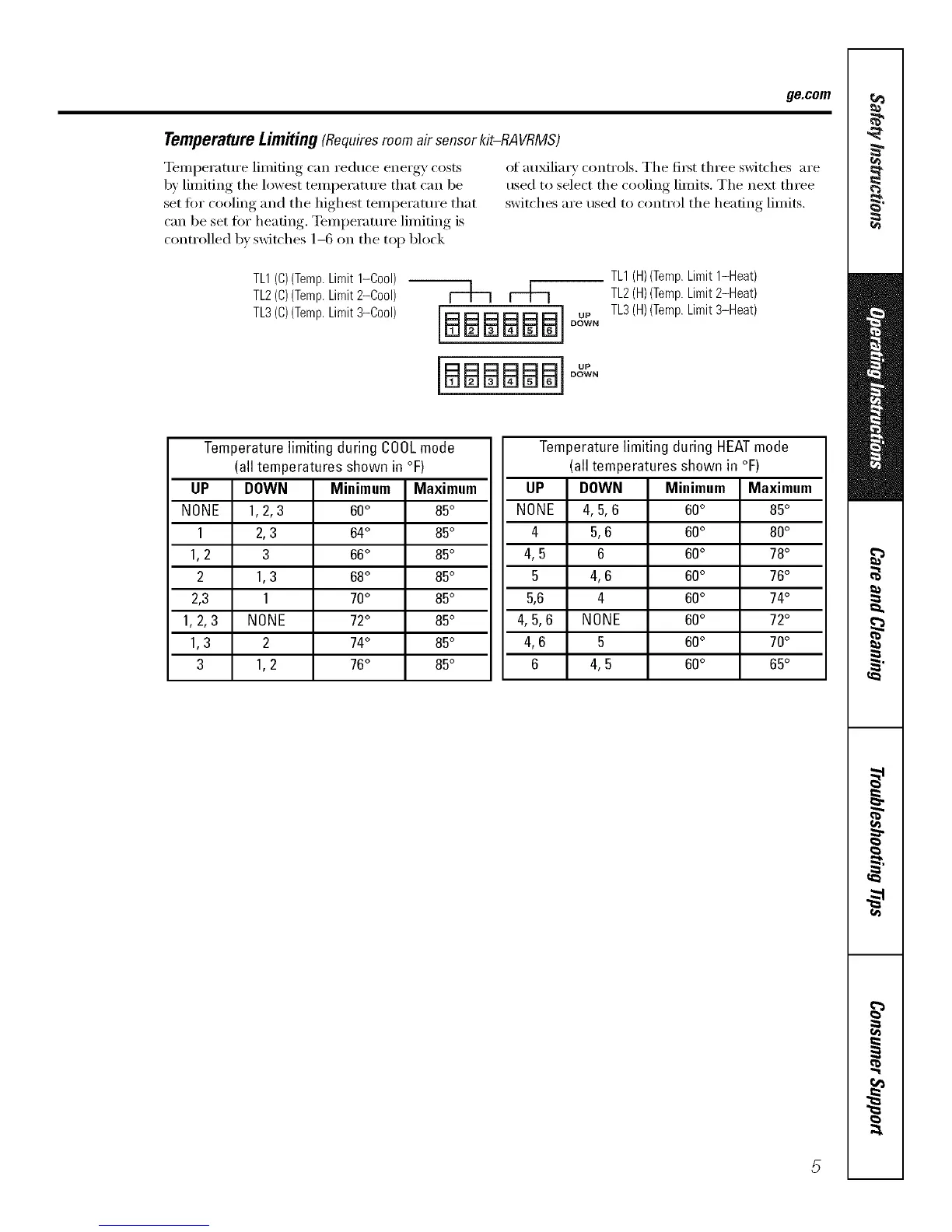

Temperature Limiting(Requiresroomair sensorkit-RAVRMS)
Temperature limiting can reduce energy costs of auxiliary controls. The ti_t three switches are
b)' limiting the lowest teini)erature that can be used to select the cooling limits. The next three
set fin" cooling and the highest temperature that switches are used to control the heating limits.
can be set fin" heating, TemI)erature limiting is
controlled by switches 1-6 on the top block
TL1(C)(Temp.Limit1-Cool)
TL2(C)(Temp.Limit2-Cool)
TL3(C)(Temp.Limit3-Cool)
[aBBBBBI
DOWN
[aaaaaal
DOWN
TL1(H)(Temp.Limit 1-Heat)
TL2(H)(Temp.Limit2-Heat)
TL3(H)(Temp.Limit3-Heat)
Temperaturelimiting during COOLmode
(all temperatures shown in °F)
UP DOWN Minimum Maximum
NONE 1,2,3 60° 85°
1 2,3 64° 85°
1,2 3 66° 85°
2 1,3 68° 85°
2,3 1 70° 85°
1,2,3 NONE 72° 85°
1,3 2 74° 85°
3 1,2 76° 85°
Temperaturelimiting during HEATmode
(all temperatures shown in °F)
UP DOWN Minimum Maximum
NONE 4, 5, 6 60° 85°
4 5,6 60° 80°
4, 5 6 60° 78°
5 4,6 60° 76°
5,6 4 60° 74°
4,5,6 NONE 60° 72°
4,6 5 60° 70°
6 4, 5 60° 65°
5
