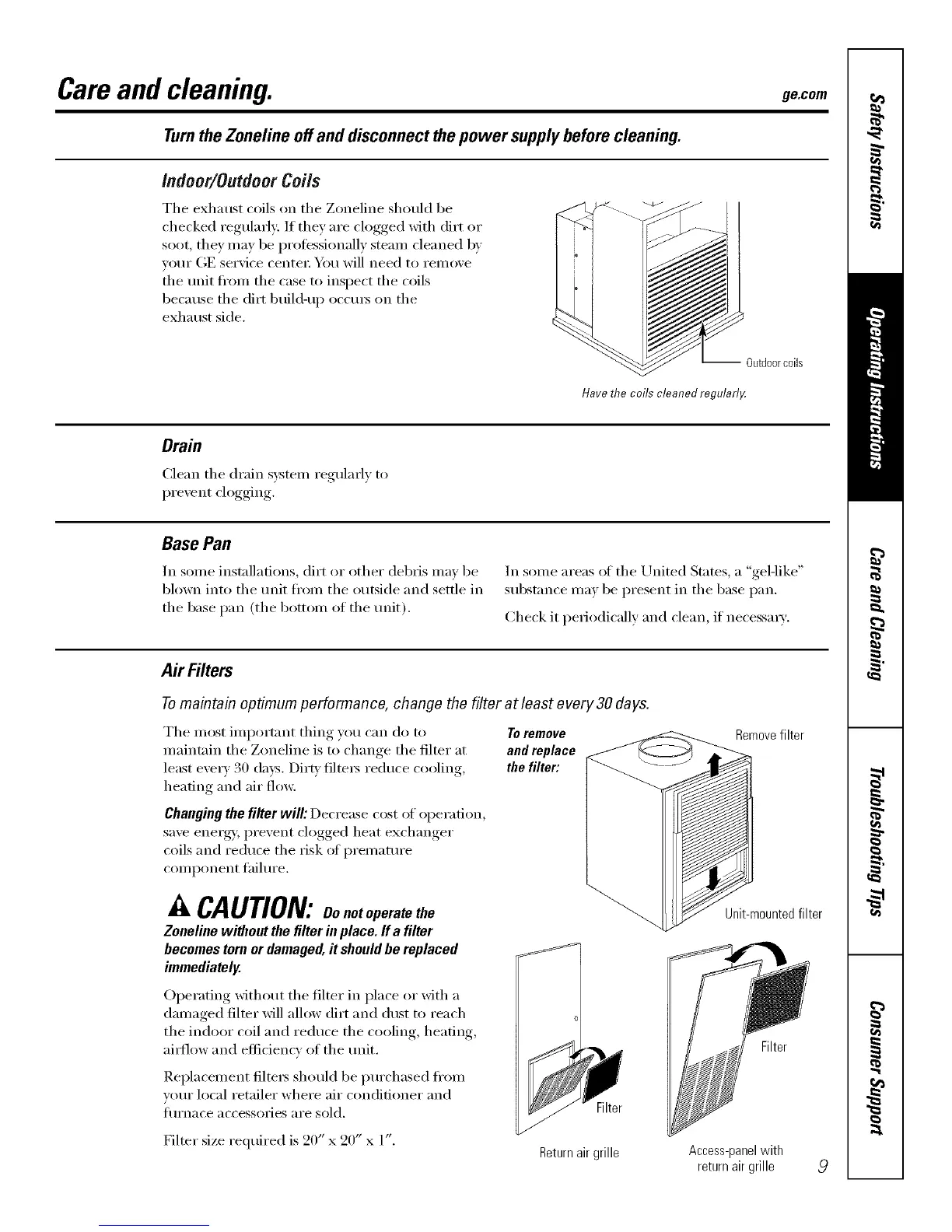

Careand cleaning, gecem
Turnthe Zoneline offand disconnectthepower supplybeforecleaning.
Indoor/Outdoor Coils
The exhaust coils on the Zoneline should be
checked regularly: If they are clogged with dirt or
soot, they may be protessionally steam cleaned by
w)ur (;E service center; You will need to remove
the refit fl'om the case to inspect the coils
because the dirt build-u I) occm_ on the
exhaust side.
-- Outdoor coils
Have the ceils cleaned regularl,_
Drain
Clean the drain system regularly to
prevent clogging.
Base Pan
In some installations, dirt or other debris may be
blown into the refit fl'om the outside and settle in
the base pan (the bottom of the refit).
In some areas of the United States, a "gelqike"
subst;mce may be present in the base pan.
Check it periodically and clean, if necessa_w:
Air Filters
To maintain optimum performance, change the filter at least every30 days.
The most important thing )'ou can do to Toremove
maintain the Zoneline is to change the filter at and replace
least eve_w 30 days. Dirty filte_ reduce cooling, the filter:
heating and air flow.
Changing the filter will: Decrease cost of operation,
save energai, prevent clogged heat exchanger
coils and reduce the risk ot premature
component tailm'e.
CAUTION: Oonot operate the
Zoneline wi_out the filter in place. If a filter
becomes tornor damaged, It should be replaced
immediately.
Operating without the filter in place or with a
damaged filter will allow dirt and dust to reach
the indoor coil and reduce the cooling, heating,
airflow and efficiency of the unit.
Replacement filtex_ should be imrchased fl'om
your local retailer where air conditioner and
lilI'IlaCe accessolJes are sold.
Filter size required is 20" x 20" x 1".
Filter
Remove filter
Unit-mounted filter
Filter
Returnairgrille Access-panelwith
returnair grille 9
