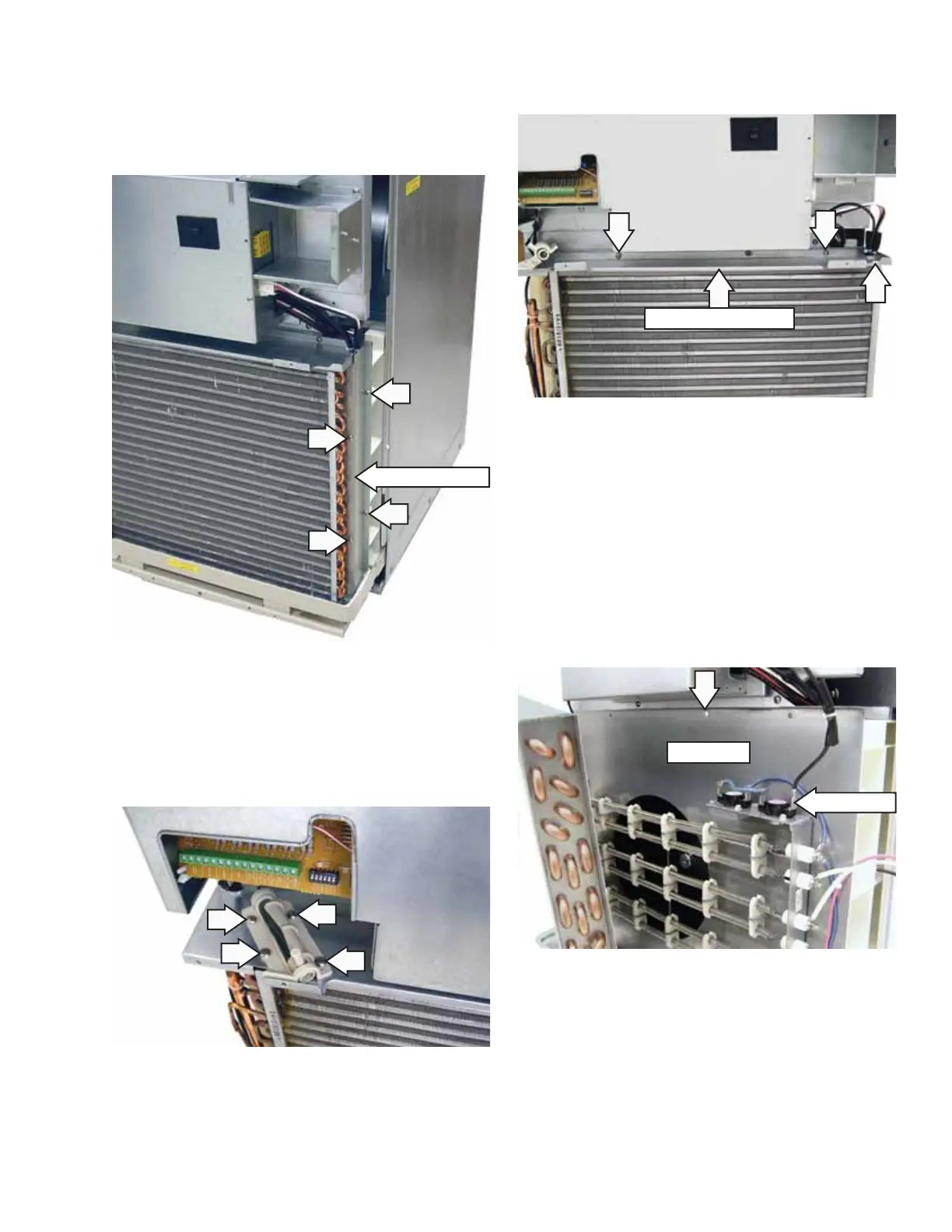

5. Remove the 4 Phillips-head screws that attach
the ventilation control to the indoor coil top
panel.
6. Remove the 3 Phillips-head screws and the
indoor coil top panel.
7. Carefully lift, then swing out the evaporator
assembly to access the heater assembly.
8. Disconnect the black wire from the one-shot
thermal protector.
9. Remove the Phillips-head machine screw from
the metal plate.
10. Lift, then slide the metal plate and heater
assembly out the right side of the unit.
3. Remove the 4 Phillips-head screws and the
corner sheet metal panel fastened to the right
side of the indoor coil.
4. Disconnect the heater wire harness.
Disconnect
Metal Plate
Indoor Coil Top Cover
Right Side Panel
(Continued next page)
