– 40 –

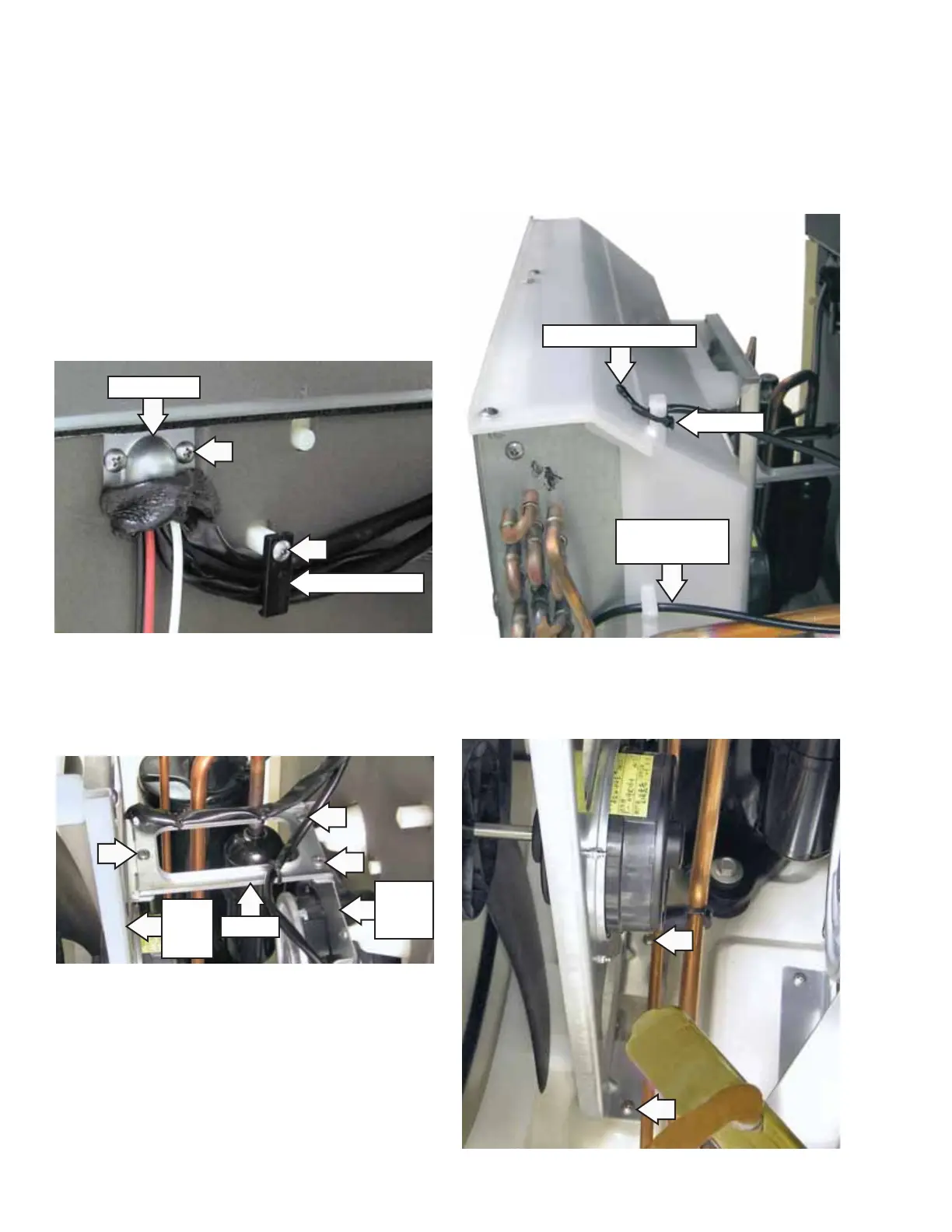

4. Disconnect the outdoor fan wire connector
(CN102) from the drive board. (See Circuit Boards
Locator Views.)
5. Cut off plastic wire ties that retain outdoor fan
motor wiring.
6. Remove the Phillips-head screw that attaches
each of the 2 wire retainers to the back of the
indoor fan housing.
7. Remove the seal, 2 Phillips-head screws, and the
wire cover.
8. Pull the fan motor wires through the opening.
Retainer (1 of 2)
Wire Cover
9. Remove the 3 Phillips-head screws and the
brace from the indoor fan motor bracket and
outdoor fan motor angle.
10. Remove the plastic wire tie that attaches the
outdoor air thermistor to the top of the fan
shroud.
11. Remove the outdoor coil thermistor wire from
the retainer located on the left side of the fan
shroud.
12. Remove the 2 Phillips-head screws that attach
the motor angle to the basepan.
Brace
Fan
Motor
Angle
Fan
Motor
Bracket
Wire Tie
Outdoor Air Thermistor
Outdoor Coil
Thermistor Wire
(Continued next page)
