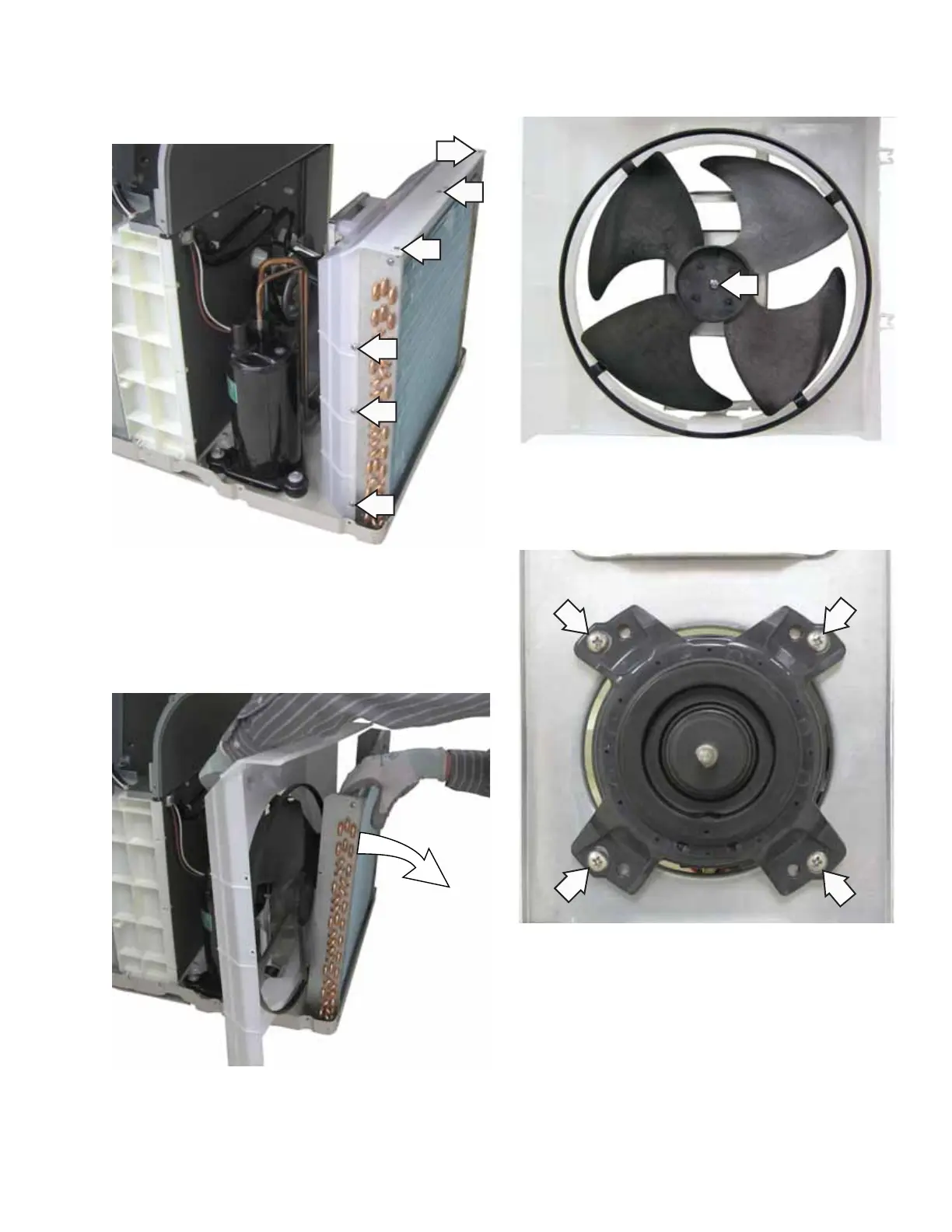

13. Remove the 9 Phillips-head screws (3 on each
side and 3 on top) that attach the fan shroud to
the outdoor coil.
14. Carefully lift the fan shroud, motor angle, and
fan motor as an assembly. Gently tilt the con-
denser out enough to remove the assembly
from the right side of the unit.
15. Remove the 8-mm nut and the fan from the mo-
tor shaft.
16. Remove the 4 Phillips-head screws and the fan
motor from the fan motor angle.
