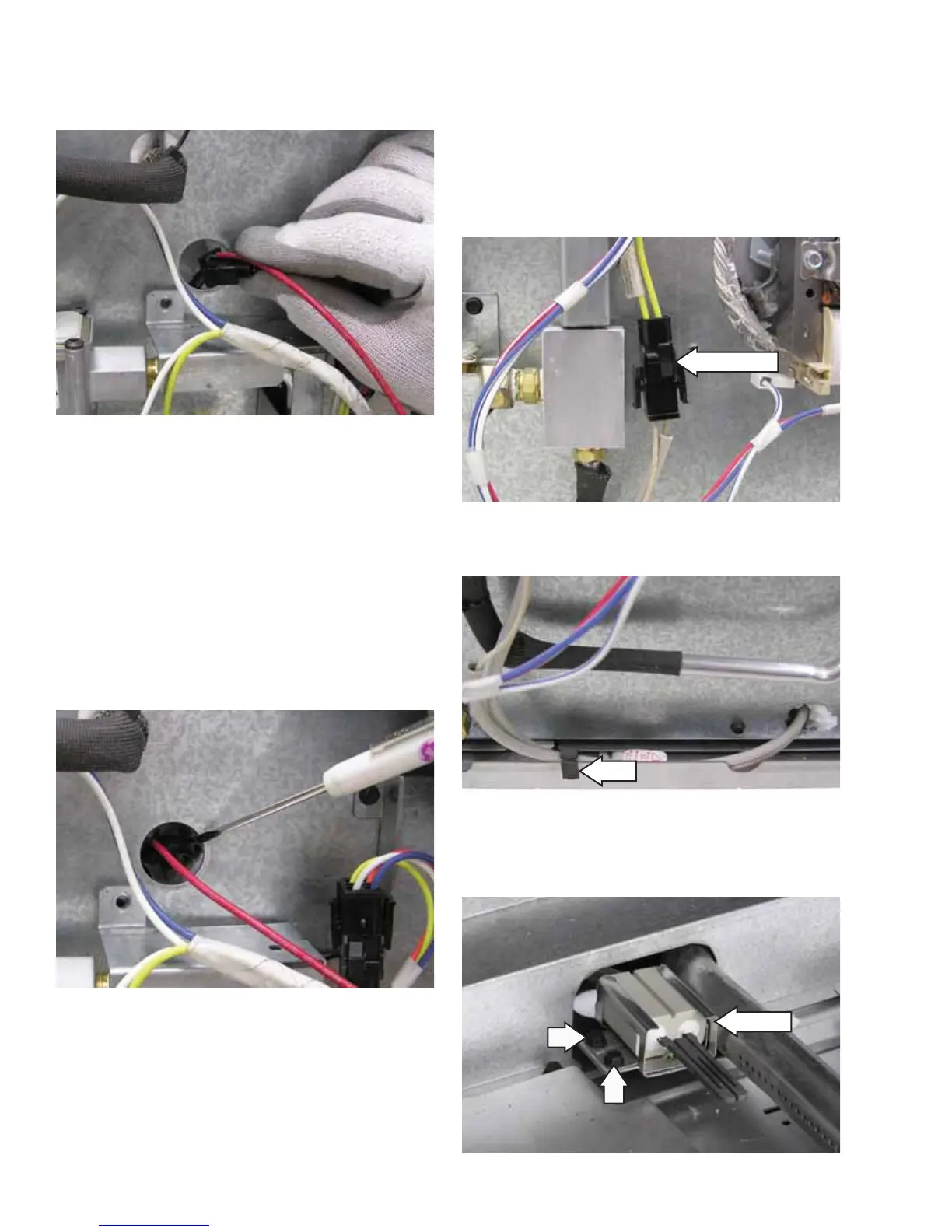

14. Carefully pull the igniter and part of the retrieval
wire thru the opening at the bottom right corner
of the upper oven.
15. Remove the retrieval wire and, as in steps 13
and 14, attach it securely to the replacement
igniter harness.
16. Carefully pull the retrieval wire and igniter
harness to the opening in the rear panel.
17. Use a small fl at blade screwdriver to guide the
bake igniter harness thru the opening.
Note: As the following step is performed, it will be
necessary to guide the igniter harness thru the
opening in the rear panel.
18. Remove the retrieval wire and connect the
igniter wire harness.
Lower Oven
To remove the bake burner and glow bar igniter:
1. Follow steps 1–5 from the upper oven procedure
to remove the bake burner and replace the glow
bar igniter.
2. Disconnect the bake igniter wire harness.
(Continued next page)
Disconnect
3. Release the bake igniter wiring from the clip.
Clip
4. Remove the two 1/4-in. hex-head screws that
attach the bake igniter to the side of the burner,
then pull the igniter out of the oven cavity.
Igniter
To Next Page
