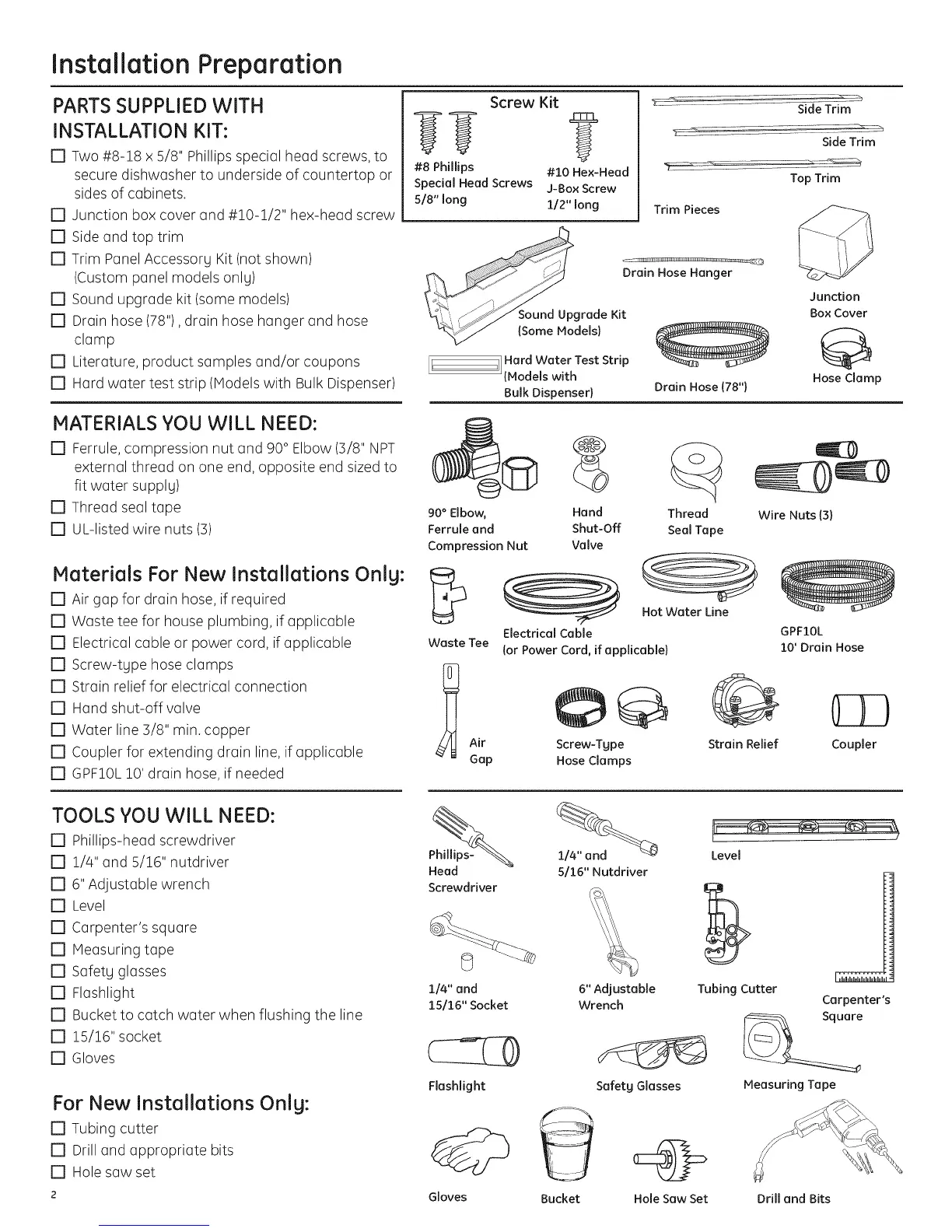

Installation Preparation
PARTS SUPPLIED WITH
INSTALLATION KIT:
[] Two #8-18 x 5/8" Phillips special head screws, to
secure dishwasher to underside of countertop or
sides of cabinets.
[] Junction box cover and #!0-1/2" hex-head screw
[] Side and top trim
[] Trim Panel Accessorg Kit (not shown)
(Custom panel models onlg)
[] Sound upgrade kit (some models)
[] Drain hose (78"), drain hose hanger and hose
clamp
[] Literature, product samples and/or coupons
[] Hard water test strip (Models with Bulk Dispenser)
Screw Kit
??
#8 Phillips
Special Head Screws
5/8" long
?
#10 Hex-Head
J-Box Screw
1/2" long
_ound Upgrade Kit
{Some Models)
tl Hard Water Test Strip
J(Models with
Bulk Dispenser)
Side Trim
Side Trim
Top Trim
Trim Pieces
Drain Hose Hanger
Drain Hose (78")
Q
Junction
Box Cover
Hose Clamp
MATERIALS YOU WILL NEED:
[] Ferrule, compression nut and 90° Elbow (5/8" NPT
external thread on one end, opposite end sized to
fit water supplg)
[] Thread seal tape
[] UL-listed wire nuts (3)
Materials For New Installations Only:
[] Air gap for drain hose, if required
[] Waste tee for house plumbing, if applicable
[] Electrical cable or power cord, if applicable
[] Screw-tgpe hose clamps
[] Strain relief for electrical connection
[] Hand shut-off valve
[] Water line 5/8" min. copper
[] Coupler for extending drain line, if applicable
[] GPF10L !0' drain hose, if needed
90° Elbow, Hand Thread Wire Nuts (3)
Ferrule and Shut-Off Seal Tape
Compression Nut Valve
Waste Tee
_ Air
Gap
Hot Water Line
Electrical Cable
(or Power Cord, if applicable)
GPF20L
20' Drain Hose
Screw-Tgpe Strain Relief Coupler
Hose Clumps
TOOLS YOU WILL NEED:
[] Phillips-head screwdriver
[] !/4" and 5/16" nutdriver
[] 6" Adjustable wrench
[] Level
[] Carpenter's square
[] Measuring tape
[] Safetg glasses
[] Flashlight
[] Bucket to catch water when flushing the line
[] !5/16" socket
[] Gloves
For New Installations Only:
[] Tubing cutter
[] Drill and appropriate bits
[] Holesaw set
2
Head
Screwdriver
114" and
15116" Socket
Flashlight
Gloves
5/16" Nutdriver
Level
6" Adjustable Tubing Cutter
Wrench Carpenter's
Safetg Glasses Measuring Tape
Bucket Hole Saw Set Drill and Bits
