GE CL 5

CL 5 Issue 01, 04/05 4-5

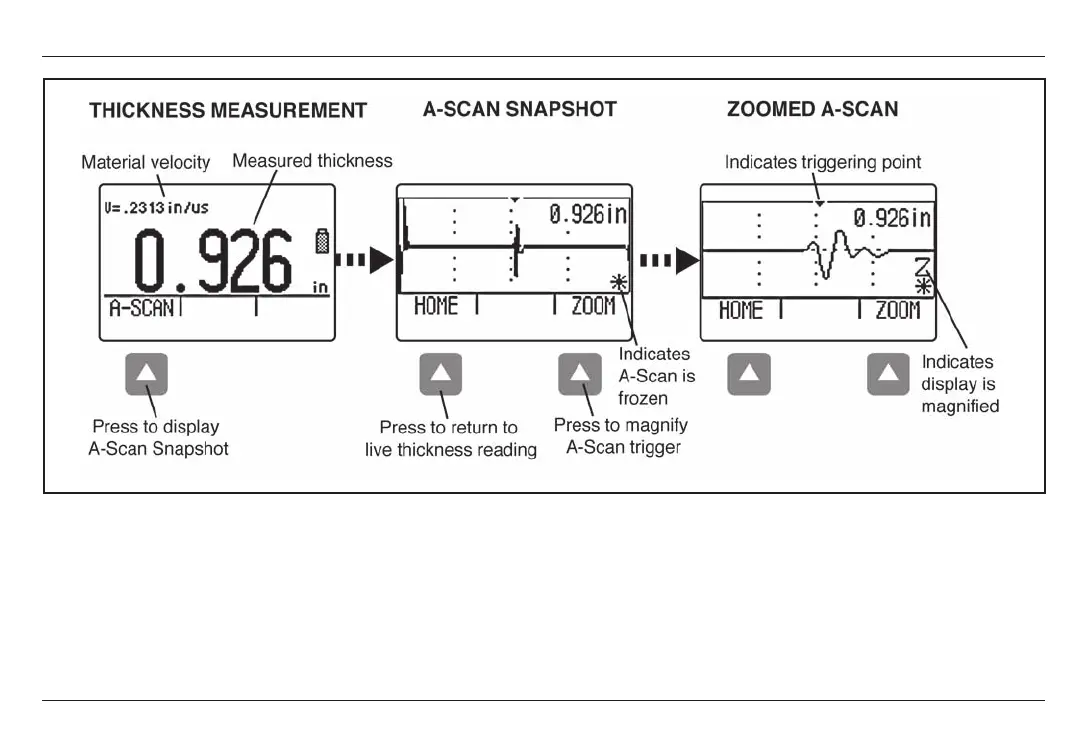

FIGURE 4-1NORMAL view mode displays only the thickness reading. Selecting the A-SCAN function bar option
allows you to view a Snapshot of the A-Scan echo that is represented by the thickness reading. This A-Scan is frozen.
No live A-Scan echo is available in this view mode.
Measuring Thickness
Normal Measurement Mode
CL 5 Issue 01, 04/05 4-5
FIGURE 4-1NORMAL view mode displays only the thickness reading. Selecting the A-SCAN function bar option
allows you to view a Snapshot of the A-Scan echo that is represented by the thickness reading. This A-Scan is frozen.
No live A-Scan echo is available in this view mode.
Measuring Thickness
Normal Measurement Mode
