4.3 Min Scan and Max Scan
Measurement Modes
These modes allow the user to continuously evaluate
material thickness then, when the evaluation period is
complete, display the extreme (minimum or maximum)
material thickness observed. During the evaluation
period, thickness is displayed along with the minimum
and maximum observed thickness values (Figure 4-2).
See Section 4.1 to select view mode.

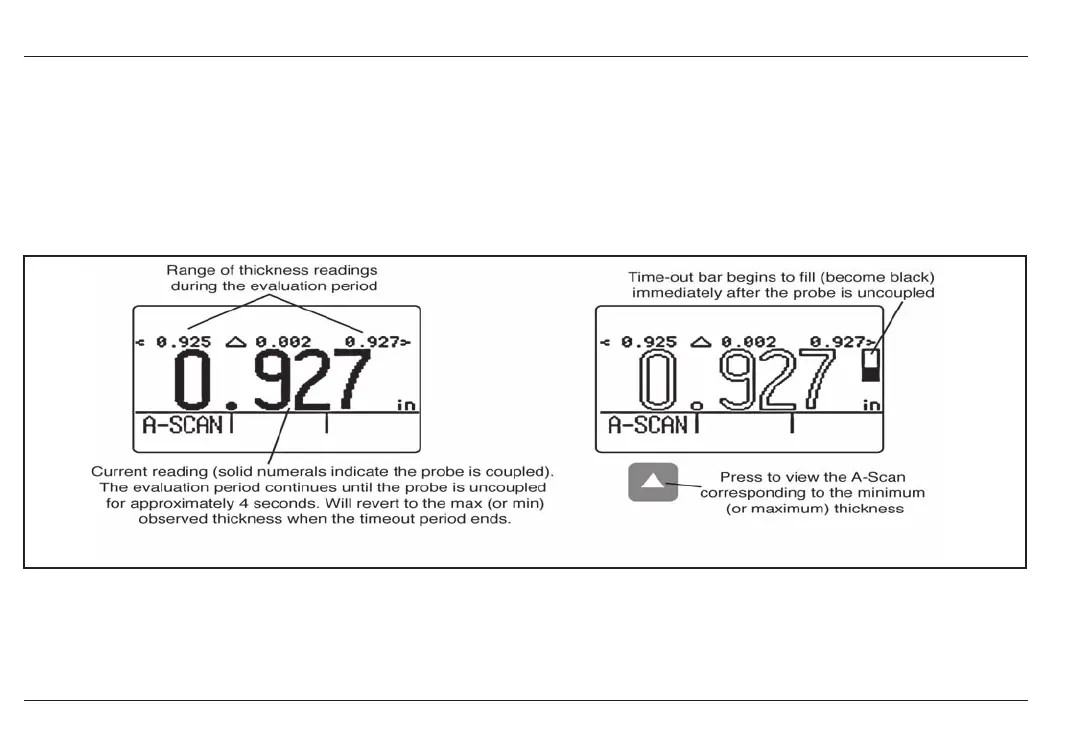

FIGURE 4-2MIN SCAN and MAX SCAN views allow the user to observe thickness measurements over an area, and
display the maximum and minimum thickness encountered during the evaluation period. The time-out feature
(represented by the bar shown here) allows the user to momentarily uncouple during the evaluation period, and then
recouple to continue the same period. In these modes the instrument will continue to collect and compare thickness
readings for as long as the probe remains coupled.
