CL 5 Issue 01, 04/05 4-9
4.6 Velocity Measurement Mode
(Optional)
This optional view mode displays measured material
velocity (see Section 4.1 to select view mode). The
material velocity calculation depends on the value
inputted for the test materials nominal thickness. This
nominal thickness value can be manually inputted
(Section 3.2.3) or by using the digital caliper supplied
with all instruments that incorporate the Velocity option.
(Figures 4-5 and 4-6). Note that when operating in
VELOCITY view mode, material velocity values may
be entered for MINIMUM and MAXIMUM ALARMs
(Section 3.4).

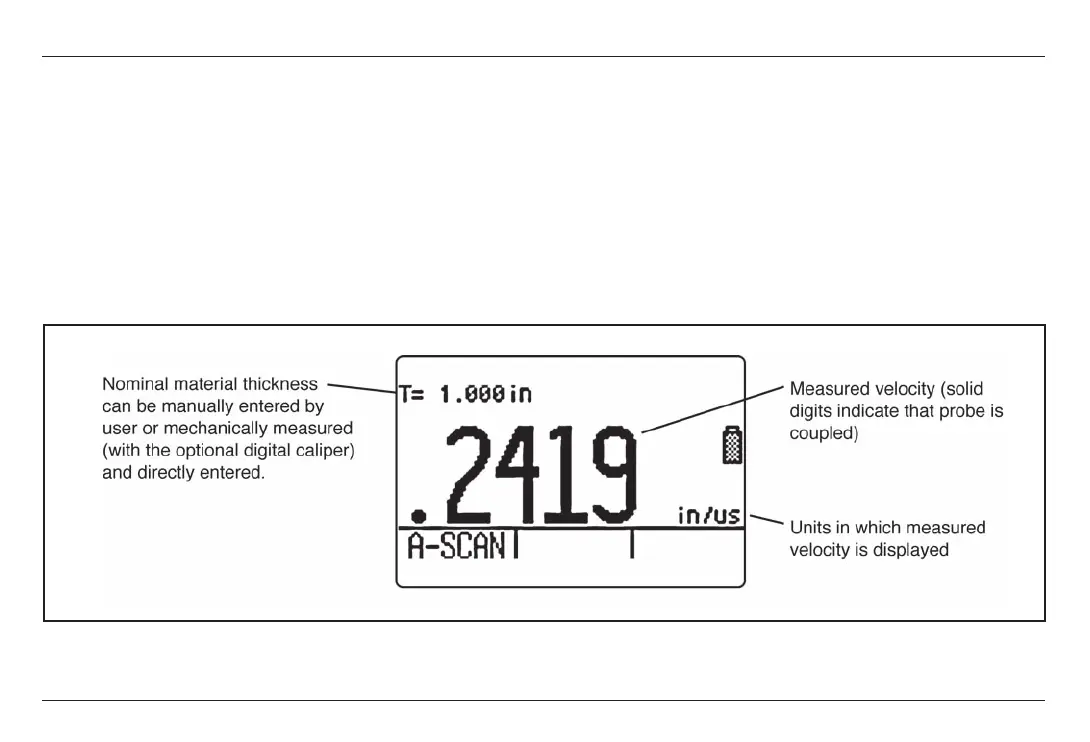

FIGURE 4-5VELOCITY view mode allows measurement of acoustic velocity based on a user inputted (or manually
measured) mechanical thickness.
Measuring Thickness
Velocity Measurement Mode
