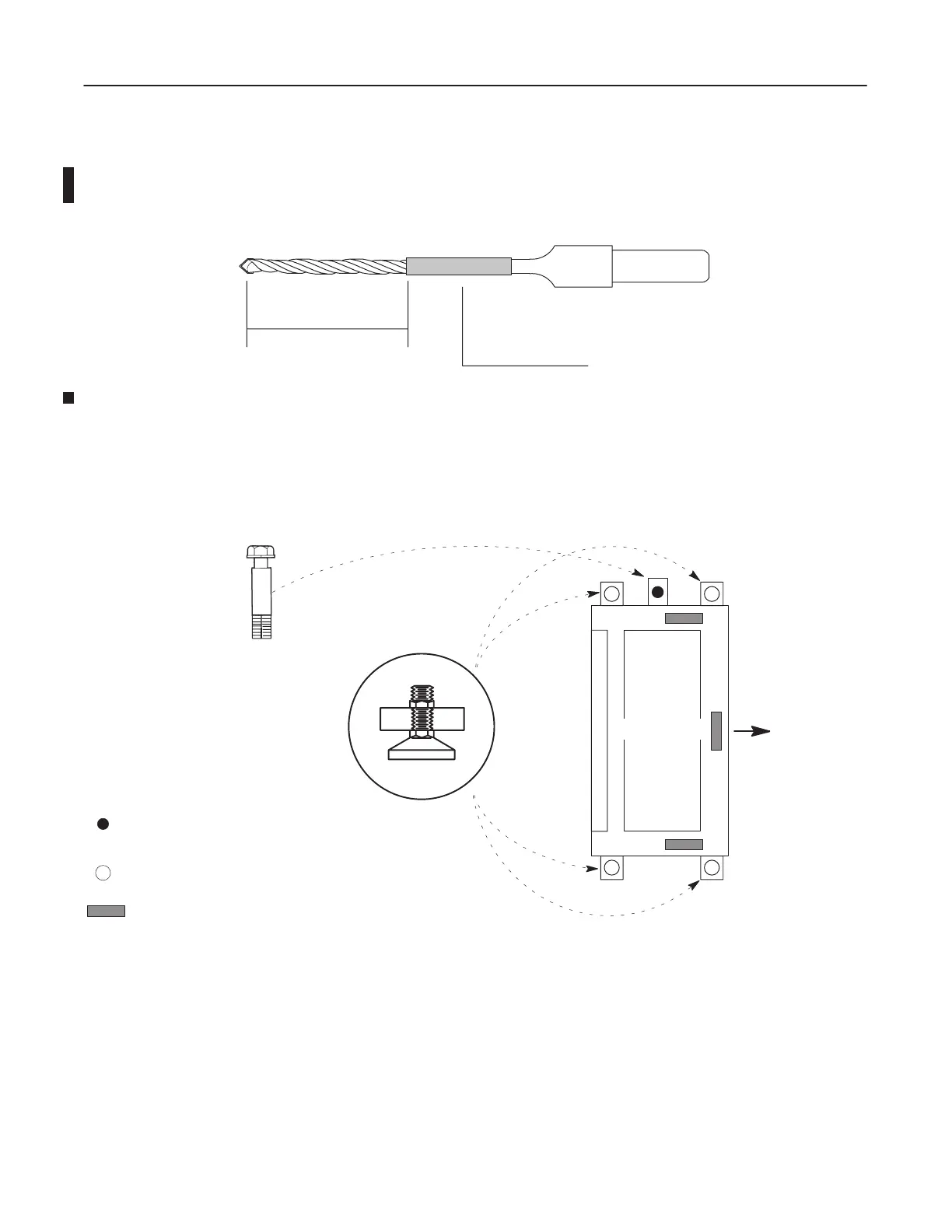

1. Affix
a piece of tape to the 5 mm concrete drill bit (Illustration 5-1) in order to assure 5 cm depth of anchor nut
hole.
TAPE
5cm
ILLUSTRA
TION 5-1
2. Make a hole at the anchor position shown in Illustration 5-2, using electric drill with the bit prepared in the
previous step, so that the lower edge of the tape just touch the floor surface.
TO TABLE
BUBBLE
LEVEL POSITION
ANCHOR
(Bolt during anchoring only)
ADJUSTER
ADJUSTER
ILLUSTRA
TION 5-2
To Next Page
