GE MEDICAL SYSTEMS CT PROSPEED SERIES INSTALLATION
2124011
3-18
REV 15
3–2–2 OC CRT
Note
The CRT display was removed for protection during shipment. It should not be installed until after
system wiring.
1. Set the CRT terminator to 75 W.
2. Refer to Section 4–2–3, OC Cable Connections.
Note
Some systems are equiped with 15” monitor instead of 14” monitor.

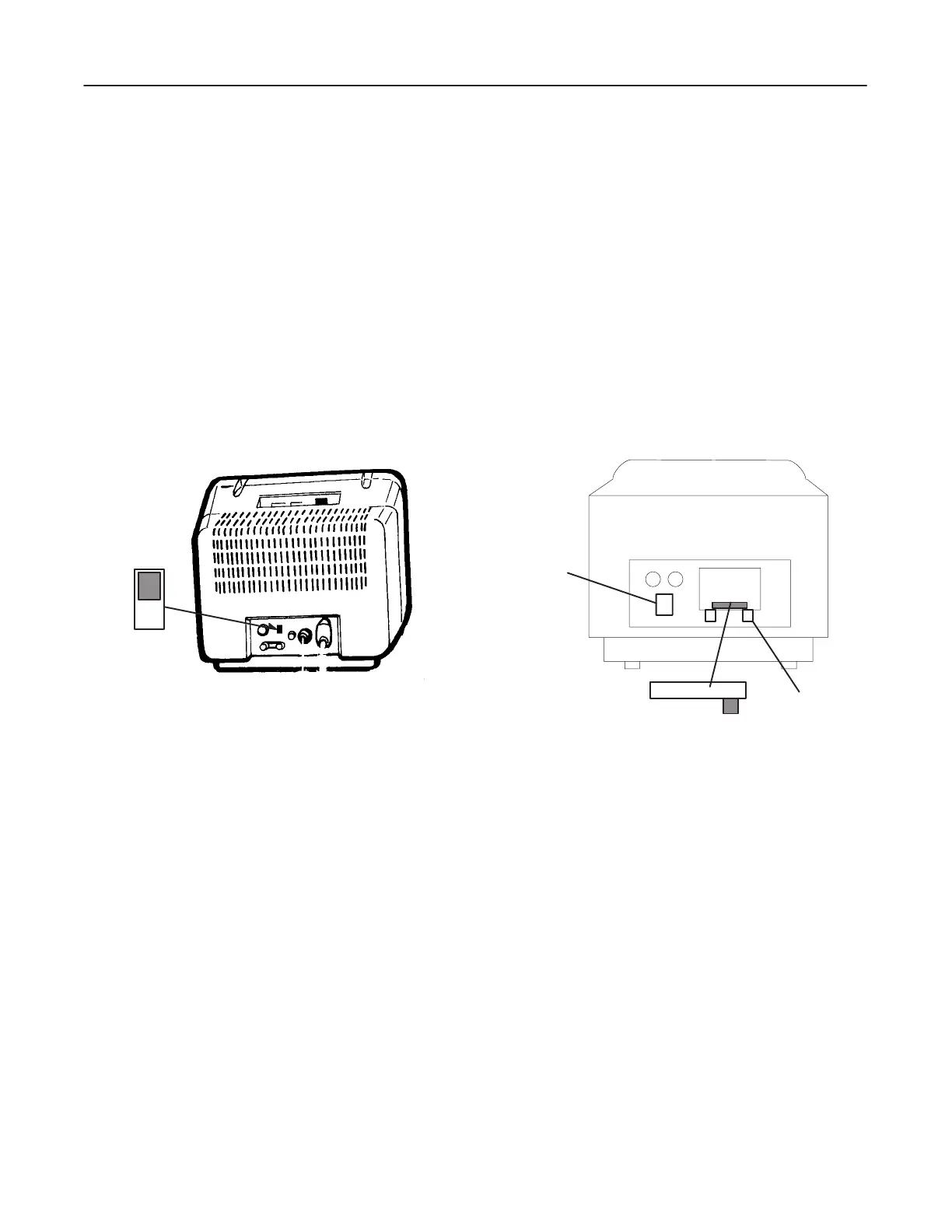

75 W
OFF
14” MONITOR 15” MONITOR
75 WOFF
VIDEO CABLE
POWER CABLE
TERMINAT
OR SETTING
ILLUSTRA
TION 3–13
3–2–3 Foot Pedal Assy
Refer to Section 4–2–3, OC Cable Connections.
