3–3–2 OC CRT
1. Place the OC CRT on the OC and remove the back panel of the OC.
2. Remove the 4 screws from the fan panel while holding the panel in place by hand, and then disconnect the fan
cable connector.
3. Connect the power cable and the signal cable into the back of the CRT as shown in Illustration 3–15.

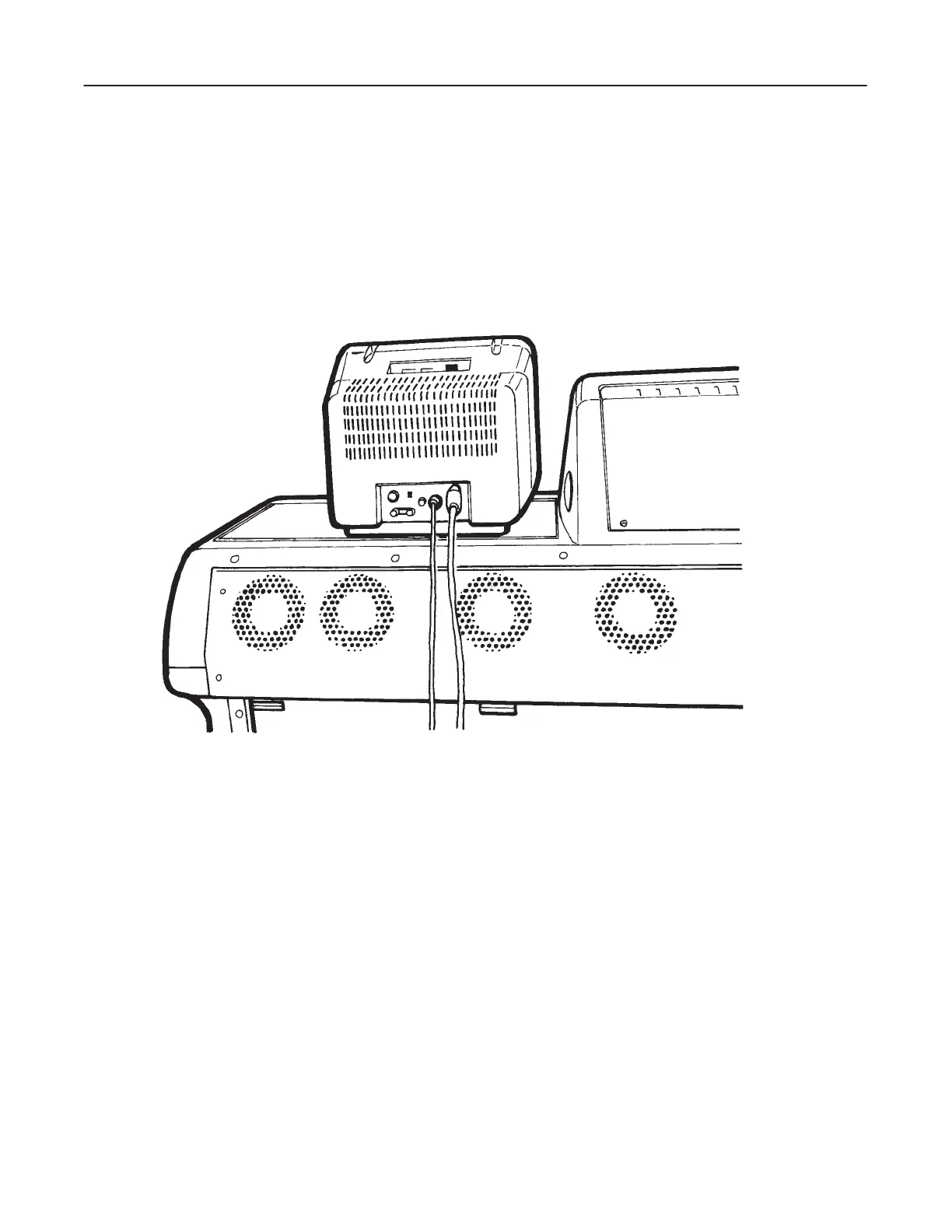

CRT CABLE CONNECTION
ILLUSTRA TION 3–15
