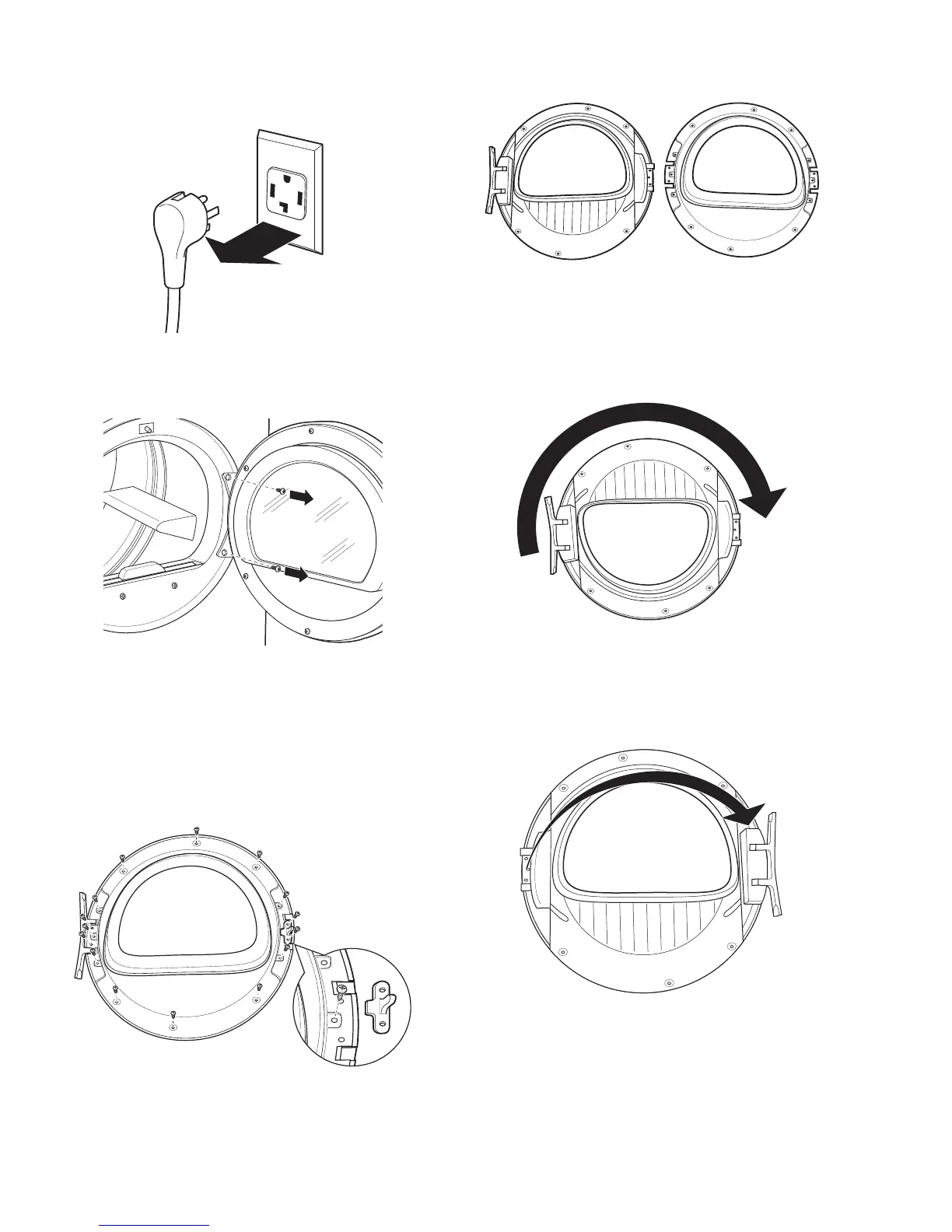

To reverse the door swing:
1. Unplug the dryer from its electrical outlet.
2. Remove the hinge bracket anchoring screws.
3. Slide door and hinge assembly upward, and
then remove the assembly from the dryer front
panel.
4. Remove 16 door screws and male end of latch
from the inner side of the door.
5. Remove the inner face.
6. Lift and rotate the window assembly 180° and
place it back into the assembly. Also rotate the
inner face 180 degrees and place it into the
assembly.
7. Replace a door screw in the center of the side
opposite the hinge. Put the male end of the latch
into place and fasten with two door screws.
