5
NOTE: When exhausting from the side or bottom, a vent kit is available as publication
#14-A018. The vent kit replaces the existing duct inside the dryer to allow a 90° elbow
to vent the dryer out the side or bottom. The kit consists of a 6 1/2” long, 4” diameter
metal duct with attached mounted bracket and instructions. A 90° elbow is not supplied
and must be provided by the installer.

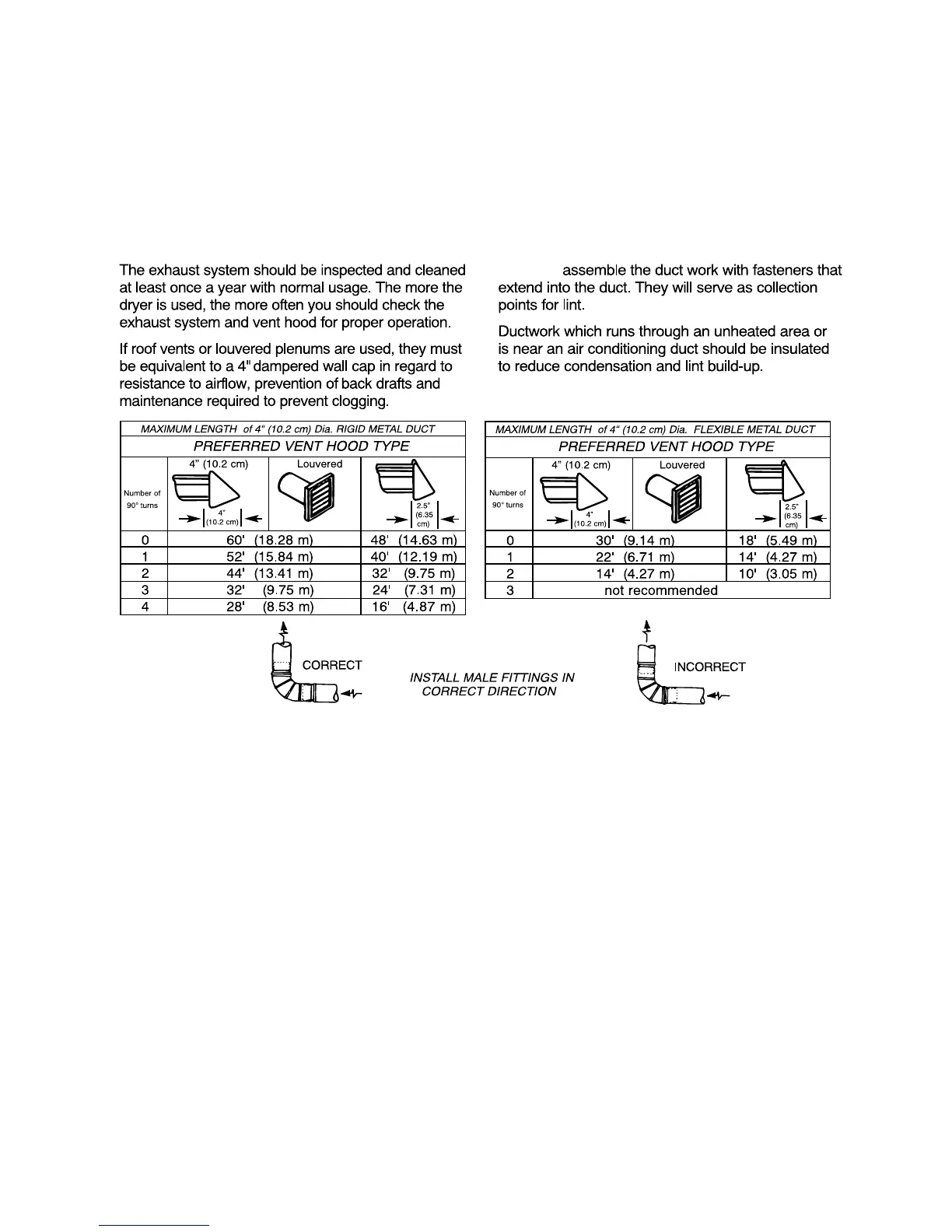

Exhaust Ducting Length
•
DO NOT
•
