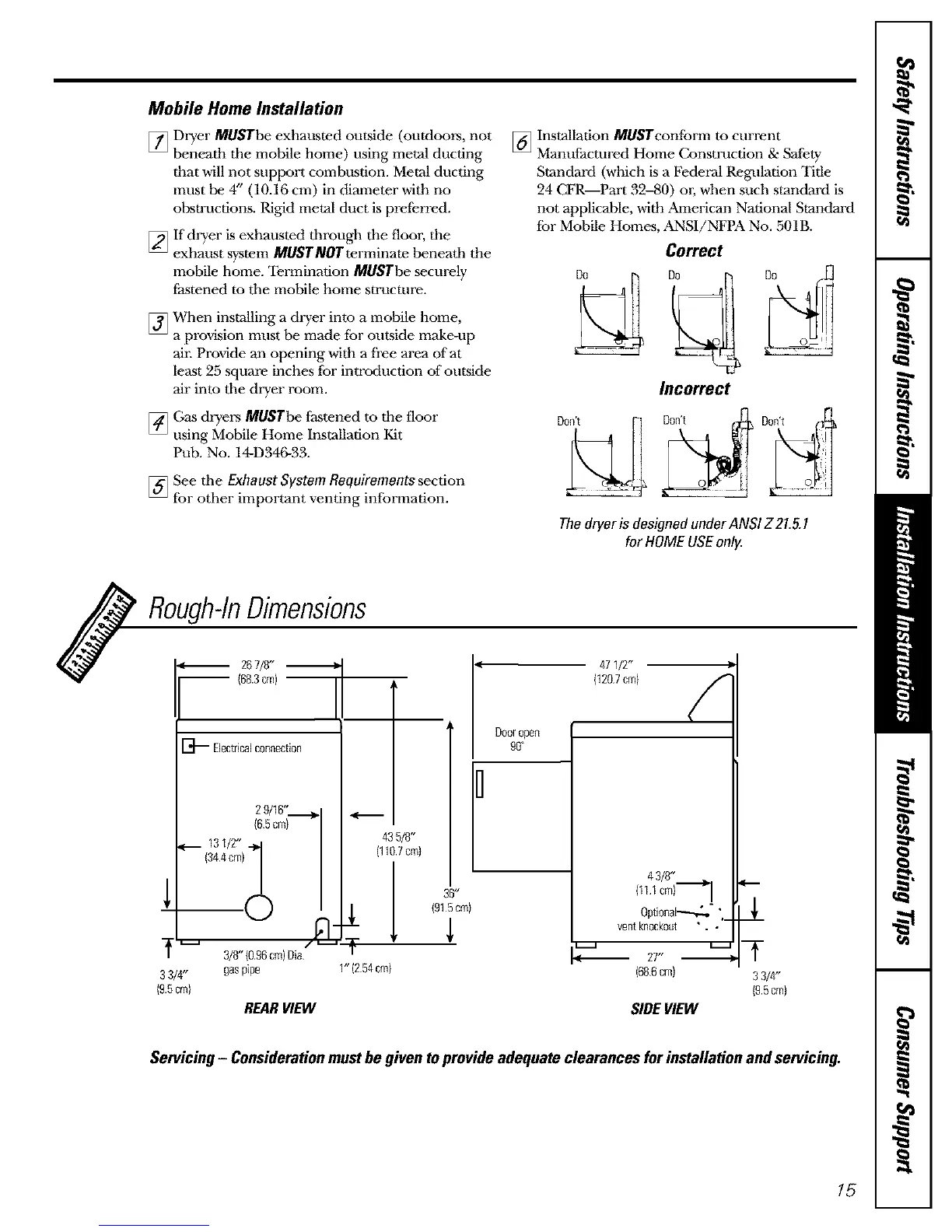

Mobile Home Installation
[]Dryer MUSTbe exhausted outside (outdoors, not
beneath tile mobile home) using metal ducting
that will not support combustion. Metal ducting
must be 4" (10.16 cm) in diameter with no
obstructions. Rigid metal duct is preferred.
[]If dryer is exhausted tbrough tim floor, the
exhaust system MUST NOTterminate beneatb the
mobile home. Termination MUSTbe securely
fastened to tbe mobile home structure.
]When installing a dryer into a mobile home,
a provision must be made for outside make-up
ai_:Provide an opening with a flee area of at
least 25 square inches for introduction of outside
air into tim dryer room.
[]Gas drym.'s MUSTbe fastened to the floor
using Mobile Home Installation Kit
Pub. No. 14-D346-33.
[]See tbe Exhaust System Requirements section
1or other important venting information.
[] Installation MUSTcontorm to current
Manulactured Home Construction & Safety
Standard (which is a Federal Regldation Title
24 CFP,--Part 32-80) or, when such standard is
not applicable, with American National Standard
1or Mobile Homes, ANSI/NFPA No. 501B.
Correct
Incorrect
Thedryer is designedunderANSIZ 21.5.I
for HOMEUSEonl_
Rough-&Dimensions
!
267/8" --
-- (68.3cm)
[3--" Electdcalconnection
435/8"
(110.7era}
,, I
n-
"_ 3/8,,(0 96era)Dia/
gaspipe
35 *_
{915 cm}
1
L
f
1" (254cm}
47 1/2"
Dooropen
90
43/8"
(111crn}'_.
OptionaP~-,-_,, '
vent knockout '.. -
_1_
27"
/
33/4" (686cm) 3 3/4"
{9.5cm} {9.5cm}
REARVIEW SIDEVIEW
Servicing - Considerationmust be given toprovide adequate clearances for installation and servicing.
15
