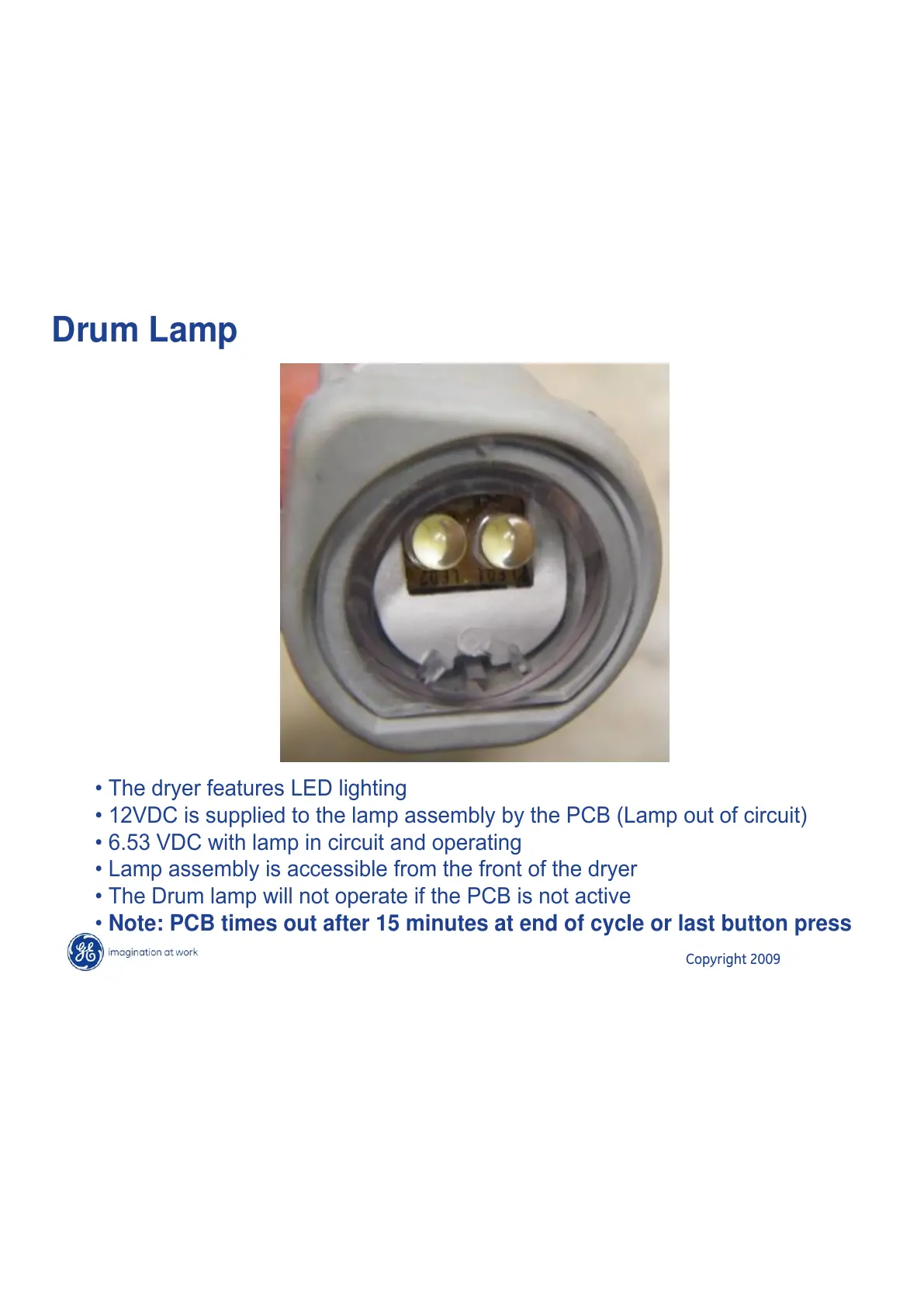

Drum Lamp
• The dryer features LED lighting
• 12VDC is supplied to the lamp assembly by the PCB (Lamp out of circuit)
• 6.53 VDC with lamp in circuit and operating
• Lamp assembly is accessible from the front of the dryer
• The Drum lamp will not operate if the PCB is not active
• Note: PCB times out after 15 minutes at end of cycle or last button press
