GE DCVH480 Series - PCB Heater Testing

Copyright 2009

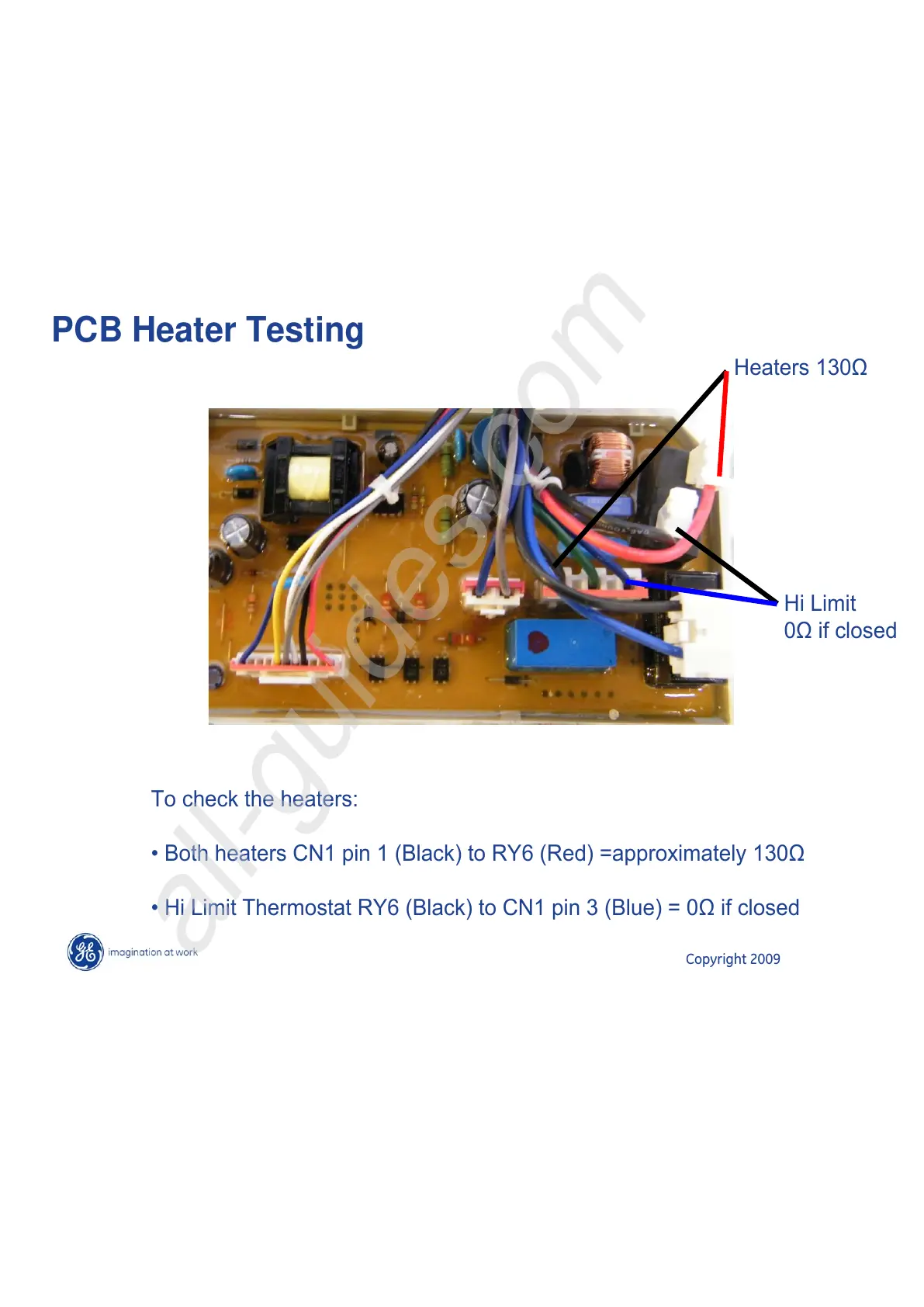

PCB Heater Testing
To check the heaters:
• Both heaters CN1 pin 1 (Black) to RY6 (Red) =approximately 130Ω
• Hi Limit Thermostat RY6 (Black) to CN1 pin 3 (Blue) = 0Ω if closed
Heaters 130Ω
Hi Limit
0Ω if closed
