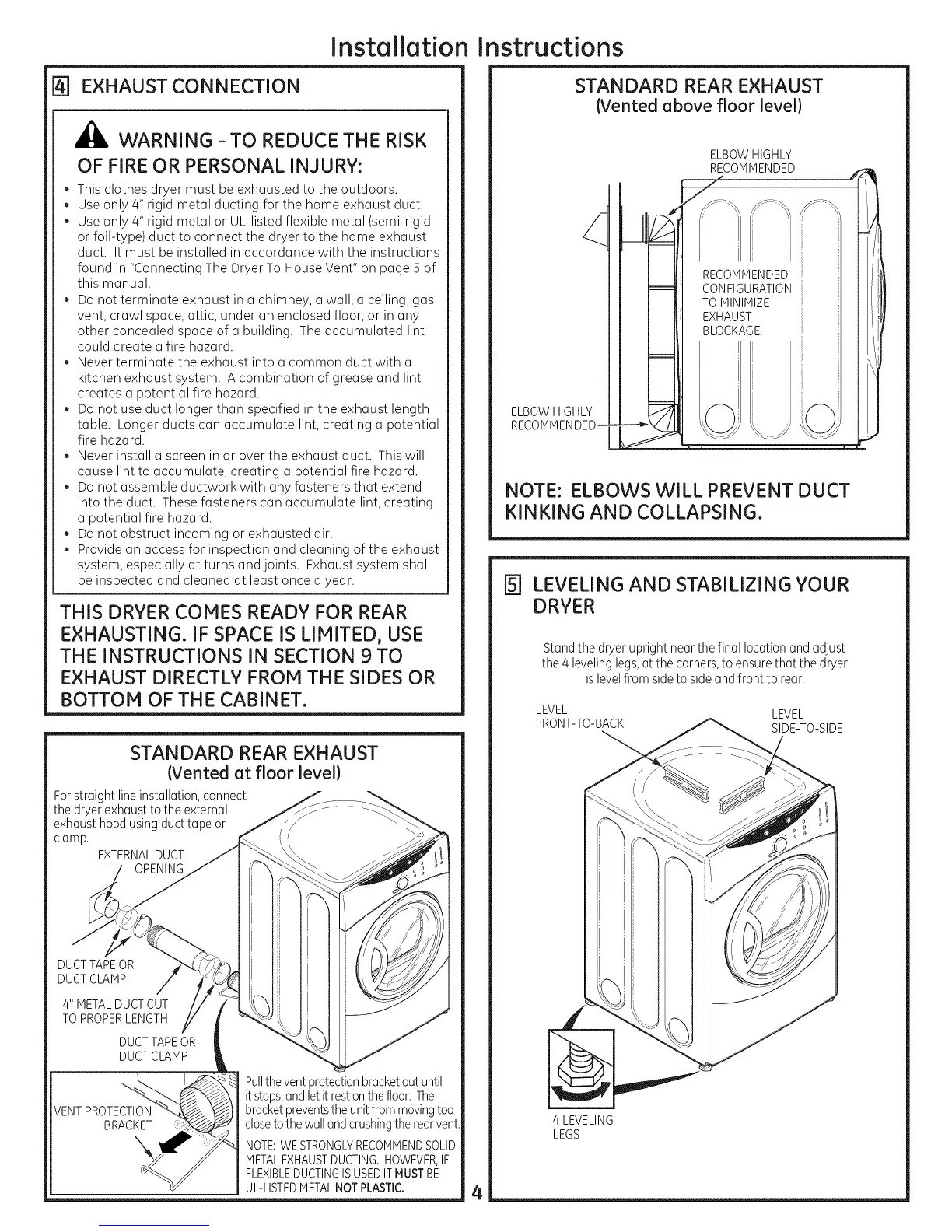

Installation
[] EXHAUST CONNECTION
WARNING - TO REDUCE THE RISK
OF FIRE OR PERSONAL INJURY:
* This clothes dryer must be exhausted to the outdoors.
. Use only 4" rigid metal ducting for the home exhaust duct.
Use only 4" rigid metal or UL-listed flexible metal (semi-rigid
or foil-type) duct to connect the dryer to the home exhaust
duct. It must be installed in accordance with the instructions
found in "Connecting The Dryer To House Vent" on page 5 of
this manual.
Do not terminate exhaust in a chimney, a wall, a ceiling, gas
vent, crawl space, attic, under an enclosed floor, or in any
other concealed space of a building. The accumulated lint
could create a fire hazard.
Never terminate the exhaust into a common duct with a
kitchen exhaust system. A combination of grease and lint
creates a potential fire hazard.
Do not use duct longer than specified in the exhaust length
table. Longer ducts can accumulate lint, creating a potential
fire hazard.
Never install a screen in or over the exhaust duct. This will
cause lint to accumulate, creating a potential fire hazard.
Do not assemble ductwork with any fasteners that extend
into the duct. These fasteners can accumulate lint, creating
a potential fire hazard.
Do not obstruct incoming or exhausted air.
Provide an access for inspection and cleaning of the exhaust
system, especially at turns and joints. Exhaust system shall
be inspected and cleaned at least once a year.
THIS DRYER COMES READY FOR REAR
EXHAUSTING. IF SPACE IS LIMITED, USE
THE INSTRUCTIONS IN SECTION 9 TO
EXHAUST DIRECTLY FROM THE SIDES OR
BOTTOM OF THE CABINET.
STANDARD REAR EXHAUST
(Vented at floor level}
For straight line installation, connect
the dryer exhaust to the external
exhaust hood using duct tape or
clamp.
EXTERNALDUCT
OPENING
DUCTTAPEOR
DUCTCLAMP
4" METALDUCT CUT
TO PROPERLENGTH
DUCT TAPEOR
DUCT CLAMP
VENT PROTECTION
BRACKET
Pulltheventprotectionbracketoutuntil
it stops,and letitrestonthefloor. The
bracketpreventsthe unitfrommovingtoo
closetothe wallandcrushingtherearvent.
NOTE:WESTRONGLYRECOMMENDSOLID
METALEXHAUSTDUCTING.HOWEVER,IF
FLEXIBLEDUCTINGISUSEDITMUSTBE
UL-LISTEDMETALNOTPLASTIC.
instructions
STANDARD REAR EXHAUST
(Vented above floor level}
ELBOW HIGHLY
RECOMMENDED- -
ELBOWHIGHLY
_ECOMMENDED ,,_
NOTE: ELBOWS WILL PREVENT DUCT
KINKING AND COLLAPSING.
r5-] LEVELING AND STABILIZING YOUR
DRYER
Standthe dryer upright nearthe final locationand adjust
the 4 levelinglegs,at the corners,to ensurethat the dryer
islevelfrom sideto sideandfront to rear.
LEVEL LEVEL
FRONT-TO-BACK SIDE-TO-SIDE
4 LEVELING
LEGS
4
