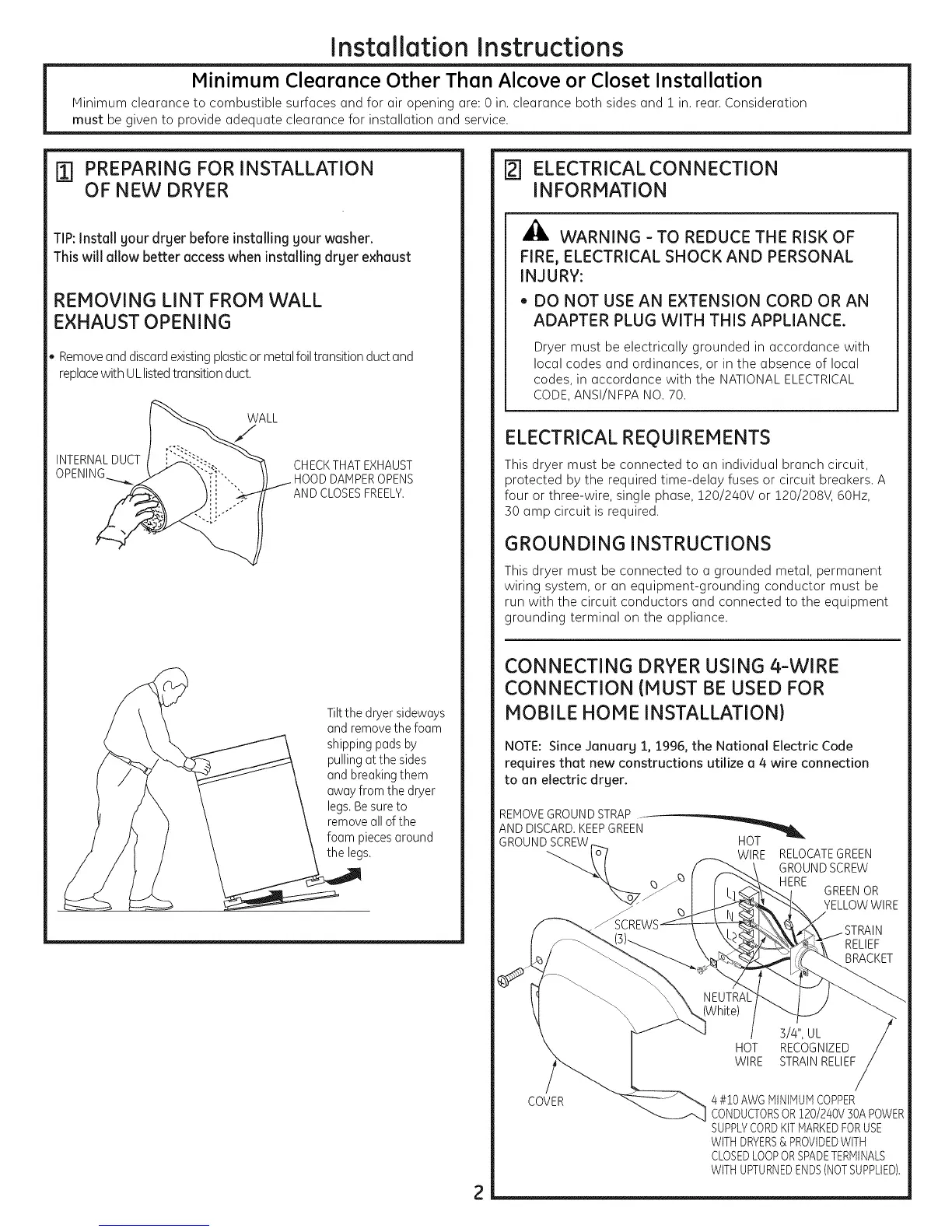

Installation Instructions
Minimum Clearance Other Than Alcove or Closet Installation
Minimum clearance to combustible surfaces and for air opening are: 0 in. clearance both sides and ! in. rear. Consideration
must be given to provide adequate clearance for installation and service.
ITI PREPARING FOR INSTALLATION
OF NEW DRYER
TIP:Install gour drger before installing gour washer.
Thiswill allow better accesswhen installing dryer exhaust
REMOVING LINT FROM WALL
EXHAUST OPENING
• Removeand discardexistingplasticor metalfoiltransition duct and
replacewith ULlistedtransitionduct.
WALL
INTERNALDUCT
CHECKTHAT EXHAUST
DAMPEROPENS
AND CLOSESFREELY.
Tiltthe dryer sideways
and removethe foam
shippingpads by
pullingatthe sides
and breakingthem
awayfrom the dryer
legs.Besureto
removeallof the
foam piecesaround
the legs.
2
[] ELECTRICAL CONNECTION
INFORMATION
A
WARNING-TO REDUCE THE RISK OF
FIRE, ELECTRICAL SHOCK AND PERSONAL
INJURY:
, DO NOT USE AN EXTENSION CORD OR AN
ADAPTER PLUG WITH THIS APPLIANCE.
Dryer must be electrically grounded in accordance with
local codes and ordinances, or in the absence of local
codes, in accordance with the NATIONAL ELECTRICAL
CODE,ANSI/NFPA NO. 70.
ELECTRICAL REQUIREMENTS
This dryer must be connected to an individual branch circuit,
protected by the required time-delay fuses or circuit breakers. A
four or three-wire, single phase, !20/240V or !20/208V, 60Hz,
30 amp circuit is required.
GROUNDING INSTRUCTIONS
This dryer must be connected to a grounded metal, permanent
wiring system, or an equipment-grounding conductor must be
run with the circuit conductors and connected to the equipment
grounding terminal on the appliance.
CONNECTING DRYER USING 4-WIRE
CONNECTION (MUST BE USED FOR
MOBILE HOME INSTALLATION)
NOTE: Since ganuarg 1, 1996, the National Electric Code
requires that new constructions utilize a 4 wire connection
to an electric drger.
REMOVEGROUND STRAP .
AND DISCARD.KEEPGREEN
GROUND SCREW
HOT
WIRE RELOCATEGREEN
GROUNDSCREW
[RE
GREENOR
YELLOWWIRE
COVER
/ S/4", UL
HOT RECOGNIZED
WIRE STRAINRELIEF
4 #i0 AWGMINIMUMCOPPER
CONDUCTORSOR120/240V30A POWER
SUPPLYCORDKITMARKEDFORUSE
WITHDRYERS& PROVIDEDWITH
CLOSEDLOOPORSPADETERMINALS
WITHUPTURNEDENDS(NOTSUPPLIED1,
