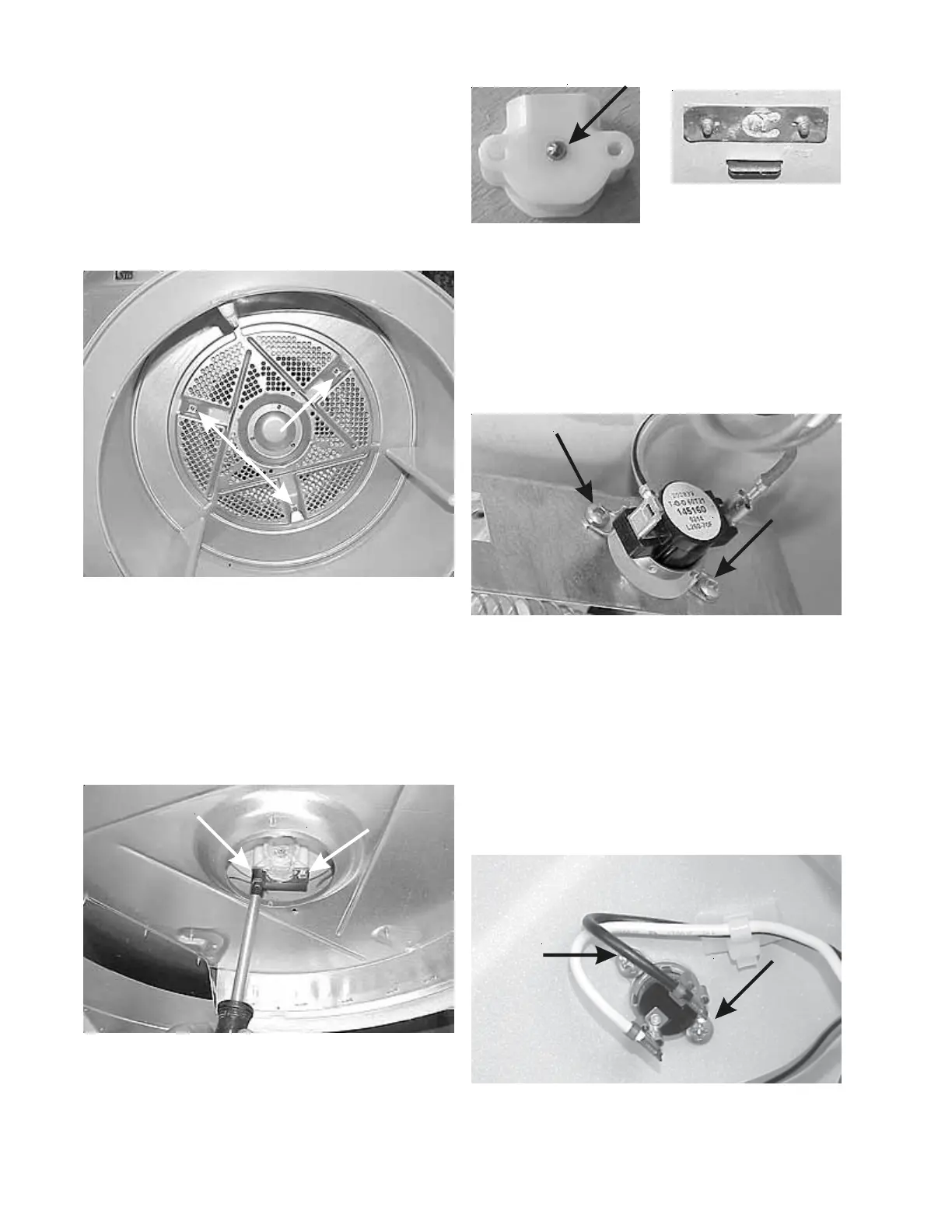

Removing the high limit thermostat:
1. Disconnect the dryer from electrical supply and
remove the top panel.
2. Disconnect the (2) wires and remove the (2)
screws holding thermostat to the heating element
assembly.
Removing the thermal limiter
(Electric dryer):
1. Disconnect the dryer from electrical supply and
remove the top panel.
2. Disconnect the (2) wires and remove the two
screws holding the thermal limiter to the rear
panel.
Removing the drum heat shield
(Electric dryer):
1. Disconnect the dryer from electrical supply and
remove the drum.
2. Remove the (3) screws holding the shield to the
rear of the drum.
Removing the hitch:
1. Disconnect the dryer from electrical supply and
remove the drum.
2. Using a 5/16” nut driver, remove the (2) screws
holding the hitch to the rear panel while holding the
large tinnerman clip from the rear of the dryer.
Note: Do not lose the grounding ball or the tinnerman
mounting clip from the rear of the dryer.
