27
FVR-C9S-2UX

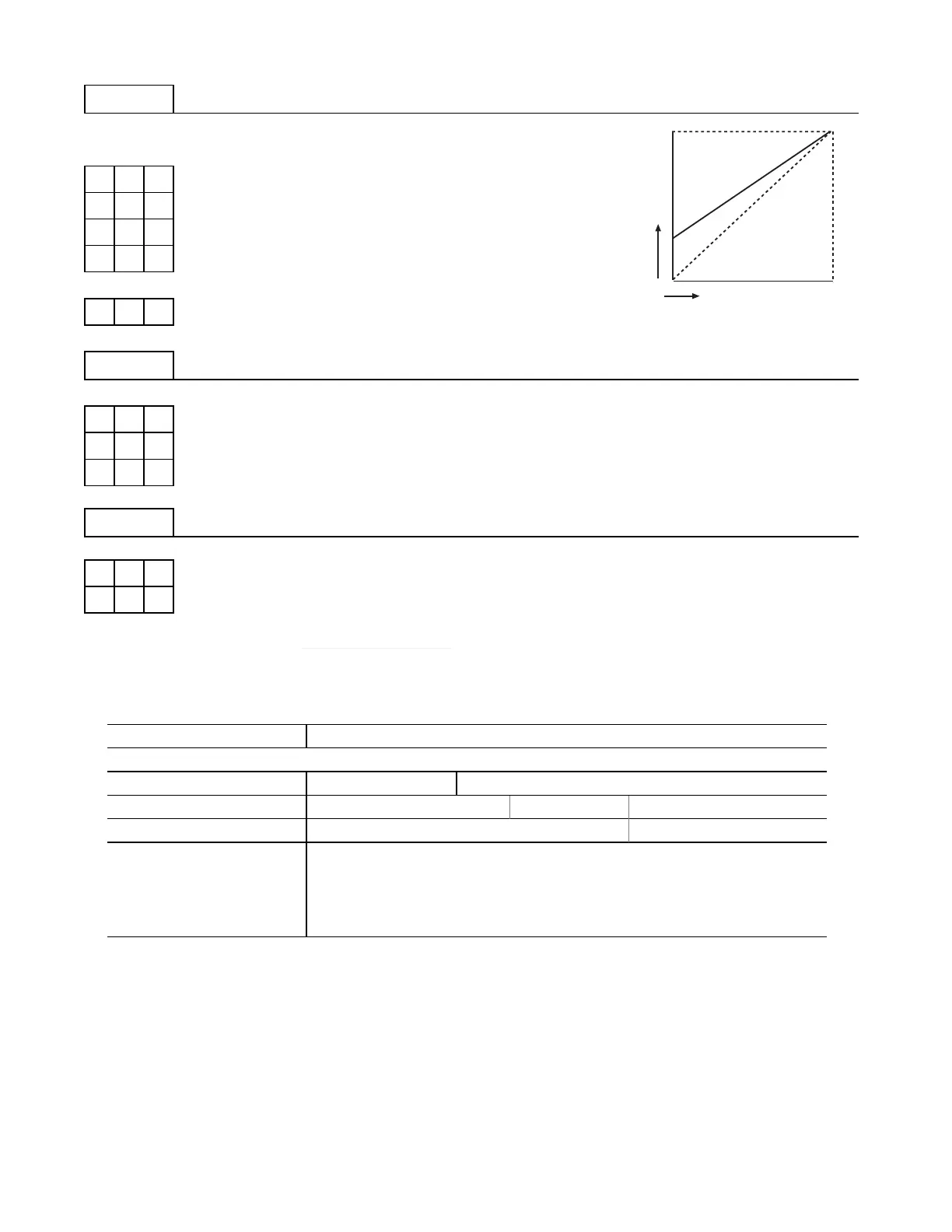

F 0 7 Torque Boost
Can be set from among 32 different levels in accordance with the type of load, the
characteristics of the motor, etc.
0
1
2 Low
3 1 High
8 Set to match this when using a Fuji FV motor designed for use with a drive.
F 0 8 Electronic Thermal Overload Relay
Either of the following two can be selected.
0 Inactive
1 Active (electronic thermal overload relay protection) For a standard 4-pole motor
2 Active (electronic thermal overload relay protection) For a Fuji FV motor
F 0 9 Electronic Thermal Overload Relay Level
Sets the operation level for the electronic thermal overload relay.
30
Setting range: 30 to 105% (increments of 1%)
105
Motor's rated current
Setting value (%) = K X X 100
Drive's rated current
For a reduced torque load (fan, pump, etc.)
Drive Capacity Wiring Length : feet
F12C9S-2UX K = 1.2 External thermal OL relay is recommended
F25C9S-2UX K = 1 K = 1.1 K = 1.2
F50C9S-2UX K = 1 K = 1.1
001C9S-2UX
002C9S-2UX K = 1
003C9S-2UX
005C9S-2UX
C92-10
0 130 165 325 655
Output frequency f
Output
voltage
High
Low
