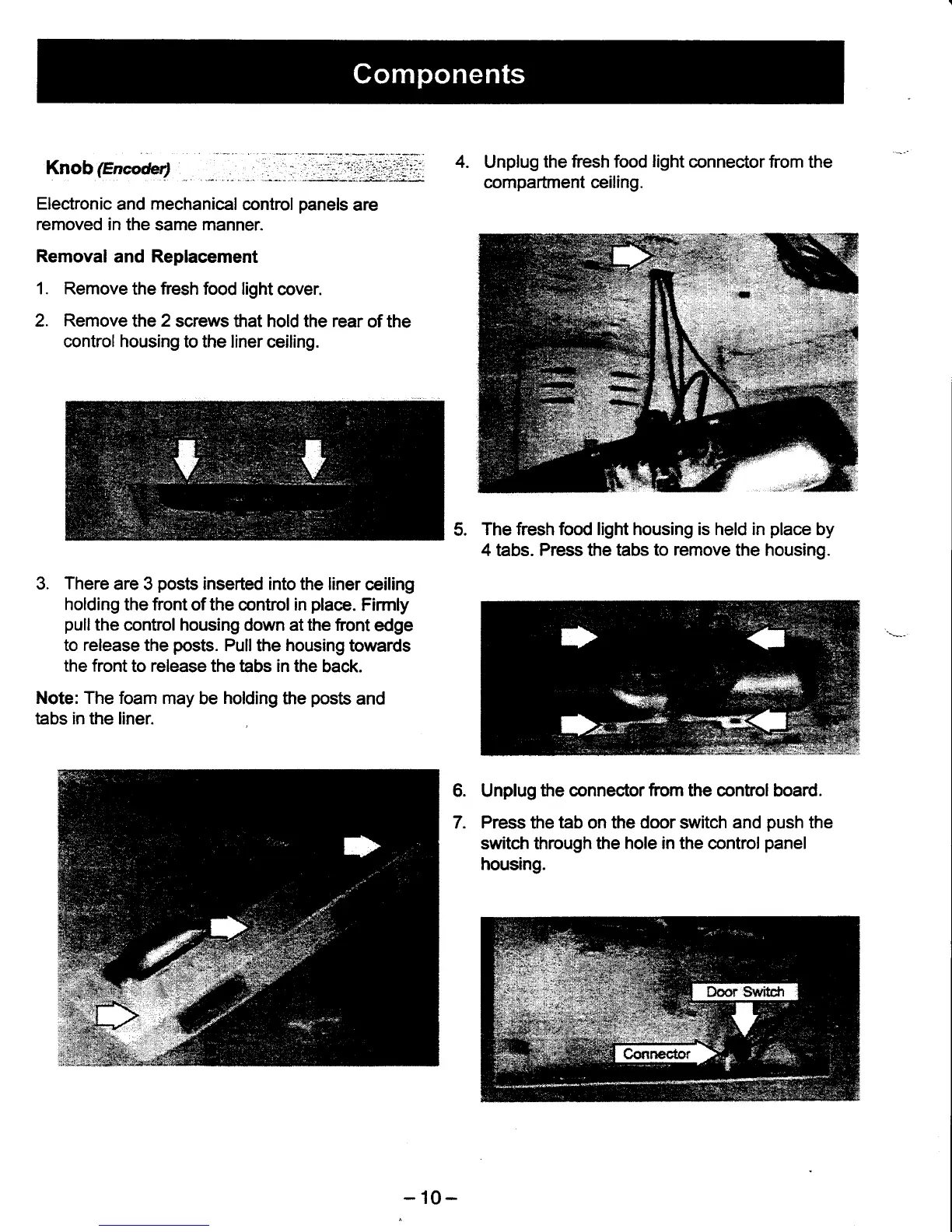

GE GBS22**P - Components; Knob (Encoder) Removal and Replacement

Knob
(Encoder)
"
.
Electronic
and
mechanical
control
panels
are
removed in
the same manner.
Removal and Replacement
1. Remove
the fresh food light
cover.
2. Remove
the
2
screws that hold the rear
of the
control housing
to the liner ceiling.
3. There
are 3
posts
inserted into the liner
ceiling
holding
the front of the
control
in
place.
Firmly
pullthe
control housing down atthe ftont
edge
to release the
posts.
Pull the housing
towards
the front
to release the trabs in the
back.
Note: The foam
may be holding the
posts
and
tabs in the liner.
4. Unplug
the fesh food
light
connector
from the
compartment ceiling.
The fresh food light housing is held in
place
by
4 tabs. Press the tabs
to remove
the housing.
Unplug
the connectorfrom the control board.
Press
the
tab
on the
door
switch
and
push
the
switch through the
hole in
the control
panel
housing.
6.
7.
-
10-
