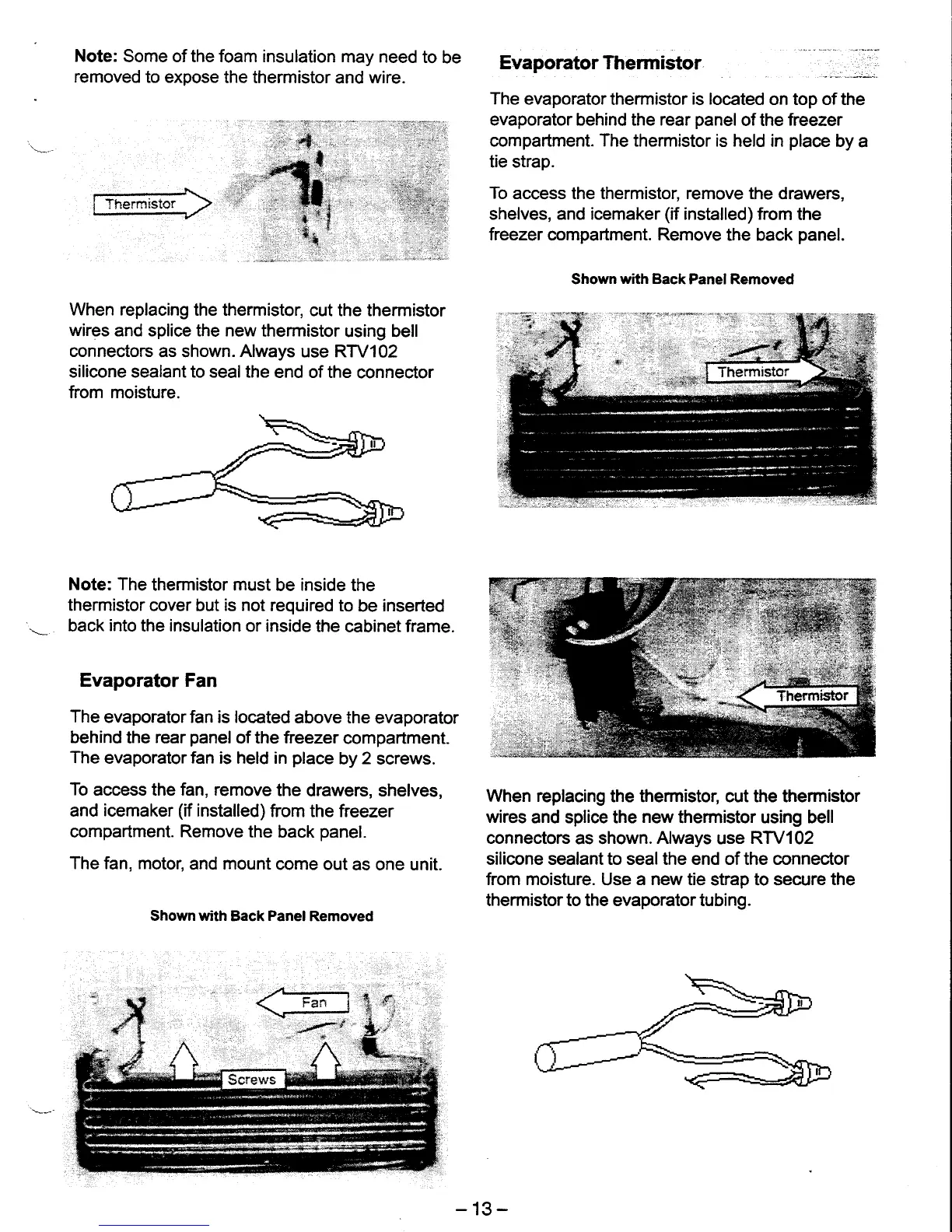

GE GBS22**P User Manual

Note:
Some of the foam insulation
may need
to
be
removed
to expose
the thermistor
and
wire.
i{.
Thernristor
When replacing
the thermistor,
cut the thermistor
wires
and splice the new
thermistor
using bell
connectors
as shown.
Always
use
RTV102
silicone sealant to seal the
end of the
connector
from moisture.
Note:
The
thermistor must
be
inside
the
thermistor
cover but is not required
to
be
inserted
back
into
the insulation
or
inside
the
cabinet frame.
Evaporator Fan
The
evaporator fan is located
above the
evaporator
behind the
rear
panel
of the
treezer
compartment.
The
evaporator
fan
is held in
place
by
2
screws.
To
access the fan, remove
the
drawers, shelves,
and
icemaker
(if
installed)
from the freezer
compartment. Remove the
back
panel.
The fan, motor,
and
mount
come out
as one unit.
Shown with
Back
Panel
Removed
Evaporator Thermistor
The evaporator
thermistor
is located
on top of the
evaporator behind the rear
panel
of the
lreezer
compartment. The thermistor is held
in
place
by
a
tie strap.
To
access the thermistor, remove the
drawers,
shelves, and icemaker
(if
installed) from
the
lreezer
compartment.
Remove
the back
panel.
Shown
with Back
Panel Removed
When replacing
the thermistor, cut the thermistor
wires
and splice the
new
thermistor using bell
connectors
as shown.
Always
use
RTV102
silicone sealant to seal the end of the connector
from moisture.
Use
a new tie
strap to secure
the
thermistor to the evaporator tubing.
ti"=.1
t
":,
":
i#.,
':
.
:,:
r". ..,'-
.
t'^
-13-
