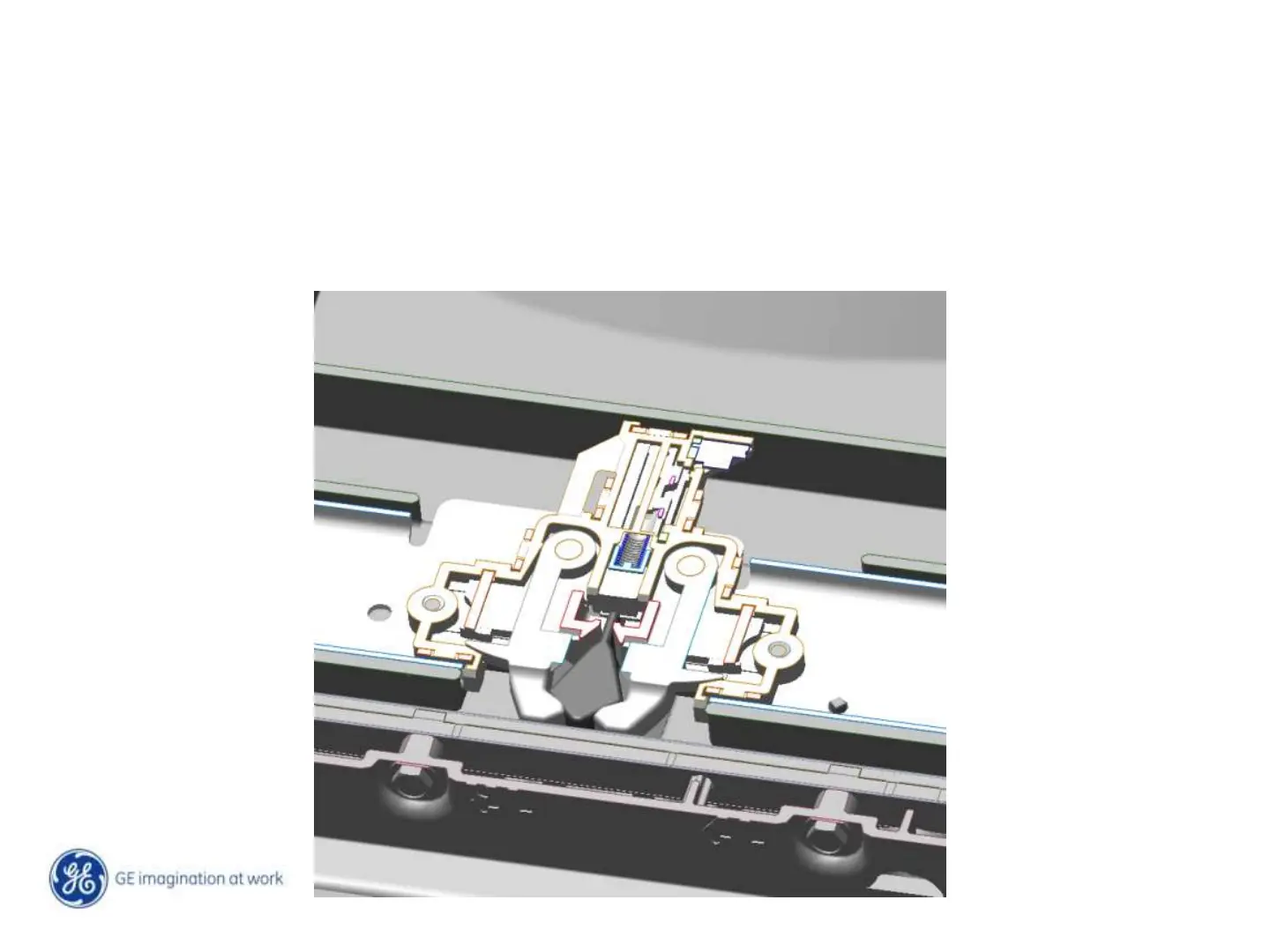

Door Latch
Door Latch assembly
located on the T
ub at the top
of the Dishwasher
.
It is activ
ated
by a strike
located on
the door
Switches ar
e 13.5 VDC
The switches
activate
or de-activate
relays
on the main contr
ol Board
Use Err
or Code
Mode to check operation
