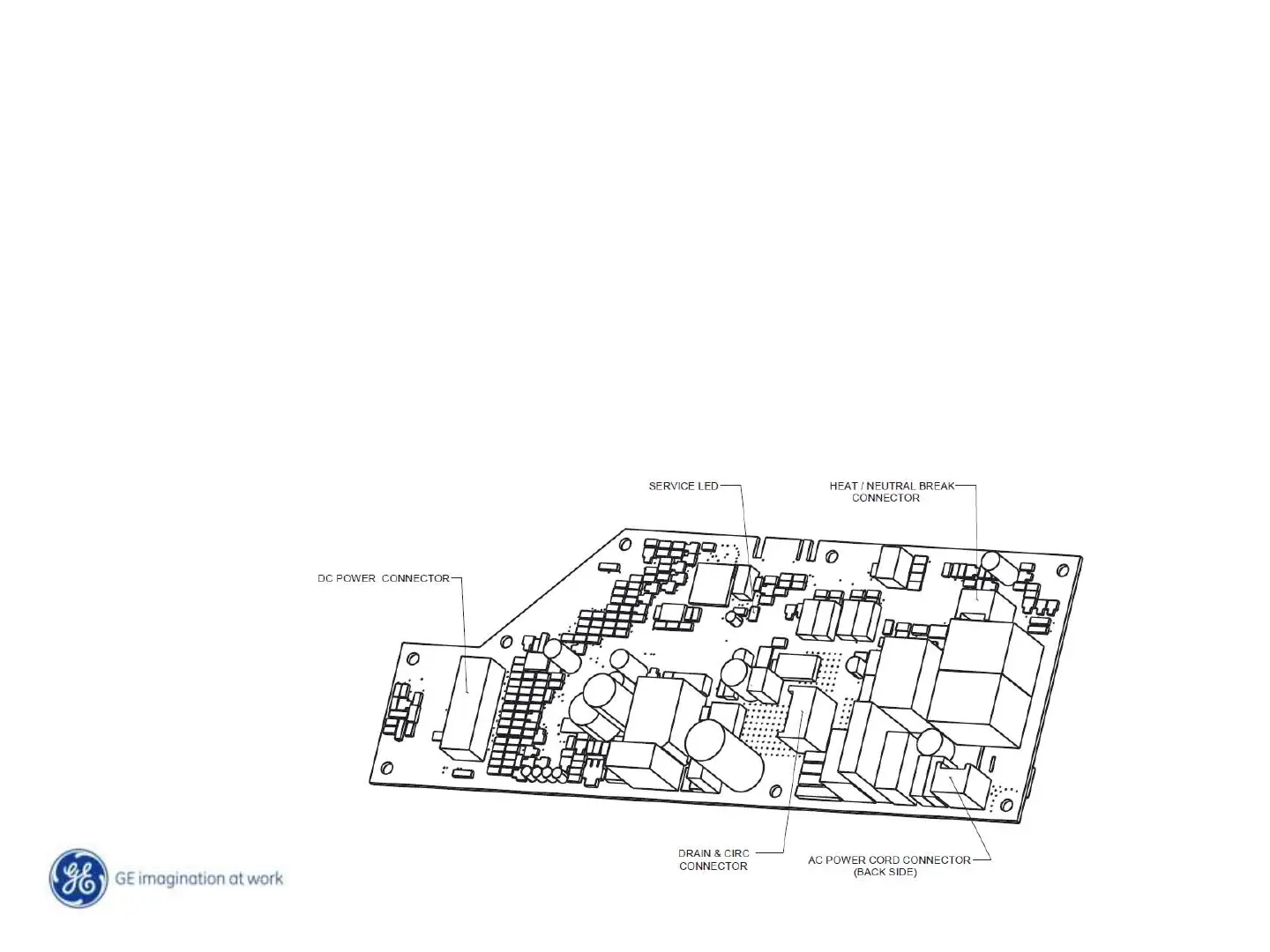

Main Control Board
• 2 boards for all Plastic Tub Models, GDF510P only, has Logic in the Main
Control Board. All other models have Logic in the UI Control Board
• located under the unit at the front and contained in a metal box.
• 120 VAC input
• 120 VAC output to the Wash ,Drain Motors and the Heater.
• 13.5 VDC output to the UI Board, Water Valve and Fill Switch
• 5 VDC output to the Turbidity Sensor
• 13.5 VDC is supplied to the Detergent module from either the main control or
UI Board (depending on model)
