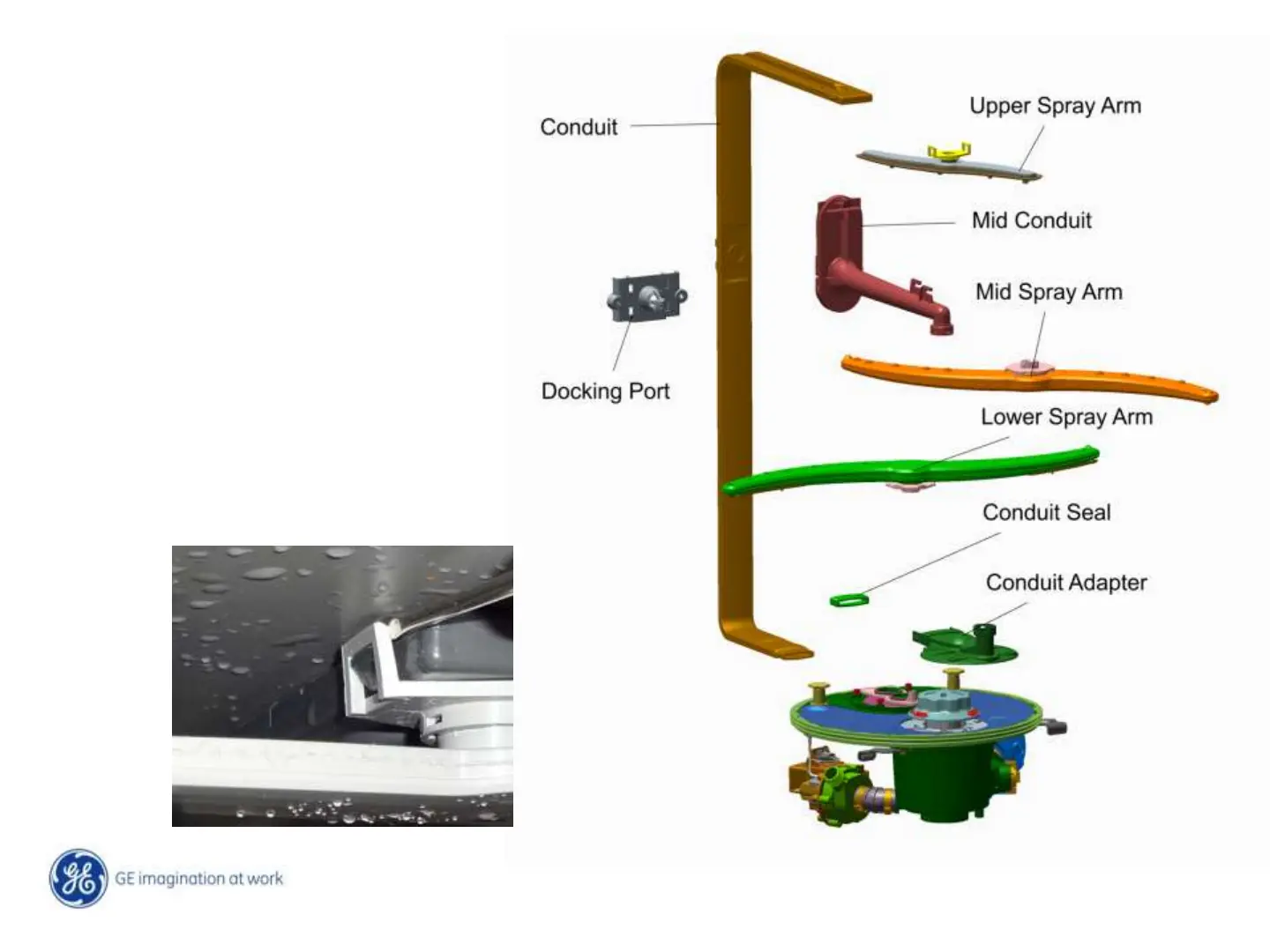

Mid Spray Arm is twist lock to
remove. Turn counter clockwise
To remove
Lower Spray Arm is twist lock to
remove. Turn counter clockwise
To remove
Note: the Lower Spray Arm has Heat
Shields. Mid and Lower Arms can be
Reversed and cause wash complaints
Upper Spray Arm is held in place
With 2 tabs. Release one side
With A small screwdriver and
rotate to unhook the other side
