Copyright General Electric 2011
9/23/2012

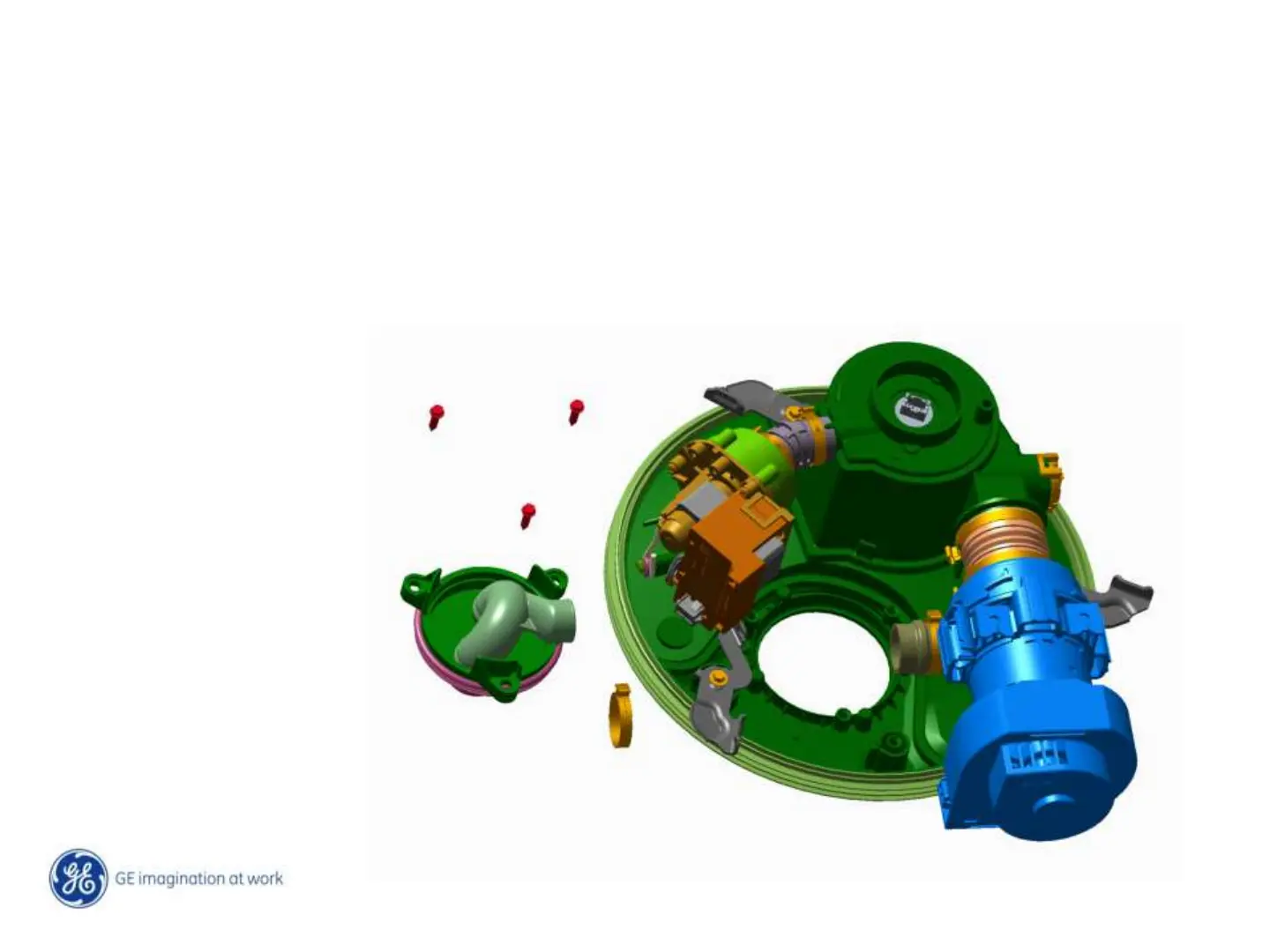

Diverter Removal
• Remove Door
• Remove Sump Module
• Release tension on Diverter Inlet Clamp
• Remove 3 - ¼” hex head screws
• Pull up on diverter
• Remove diverter from hose
• Replace clamp
