105 /

9/23/2012

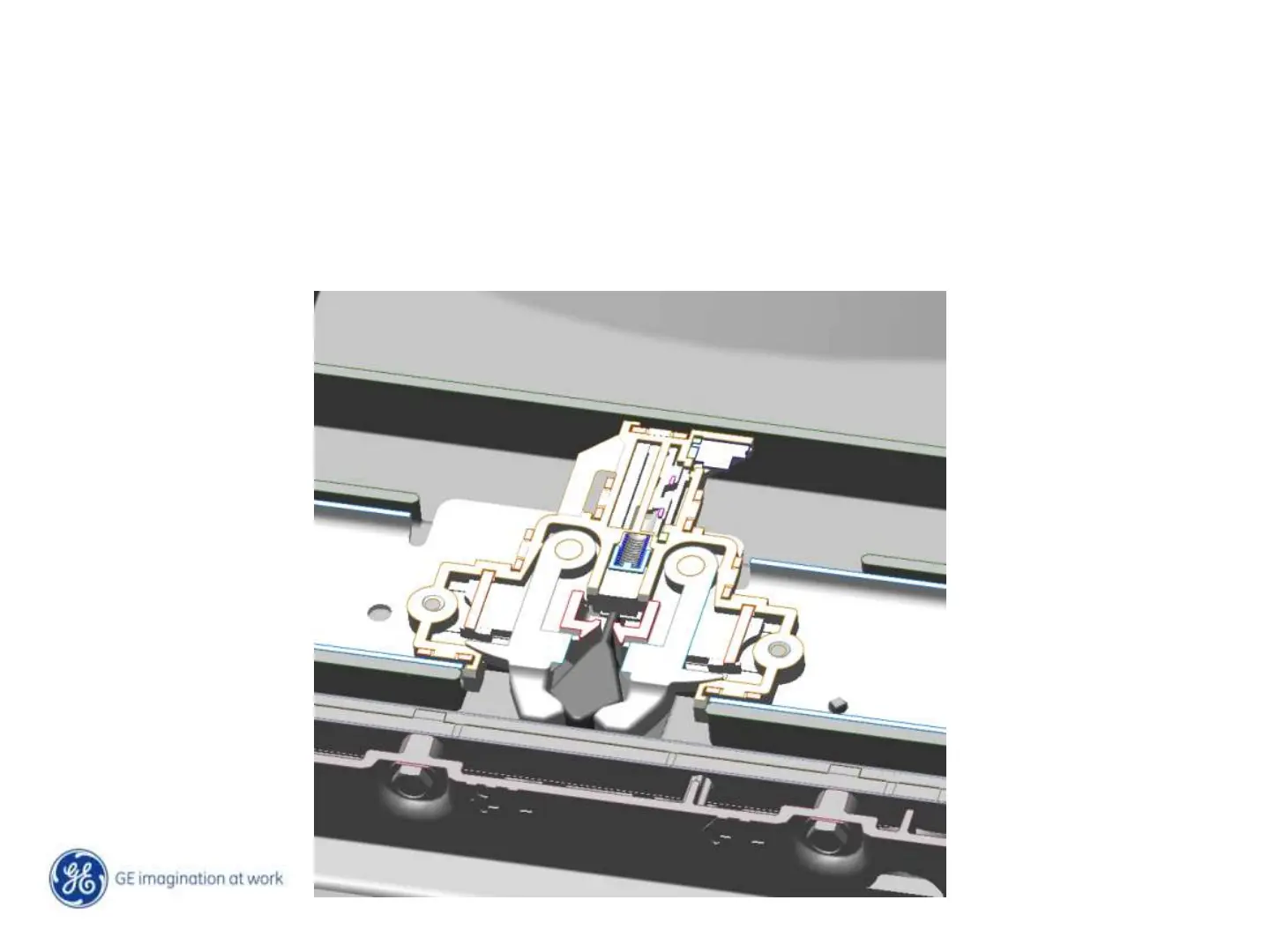

Door Latch

Door Latch assembly located on the Tub at the top of the Dishwasher.

It is activated by a strike located on the door

Switches are 13.5 VDC

The switches activate or de-activate relays on the main control Board

Use Error Code Mode to check operation
