Features

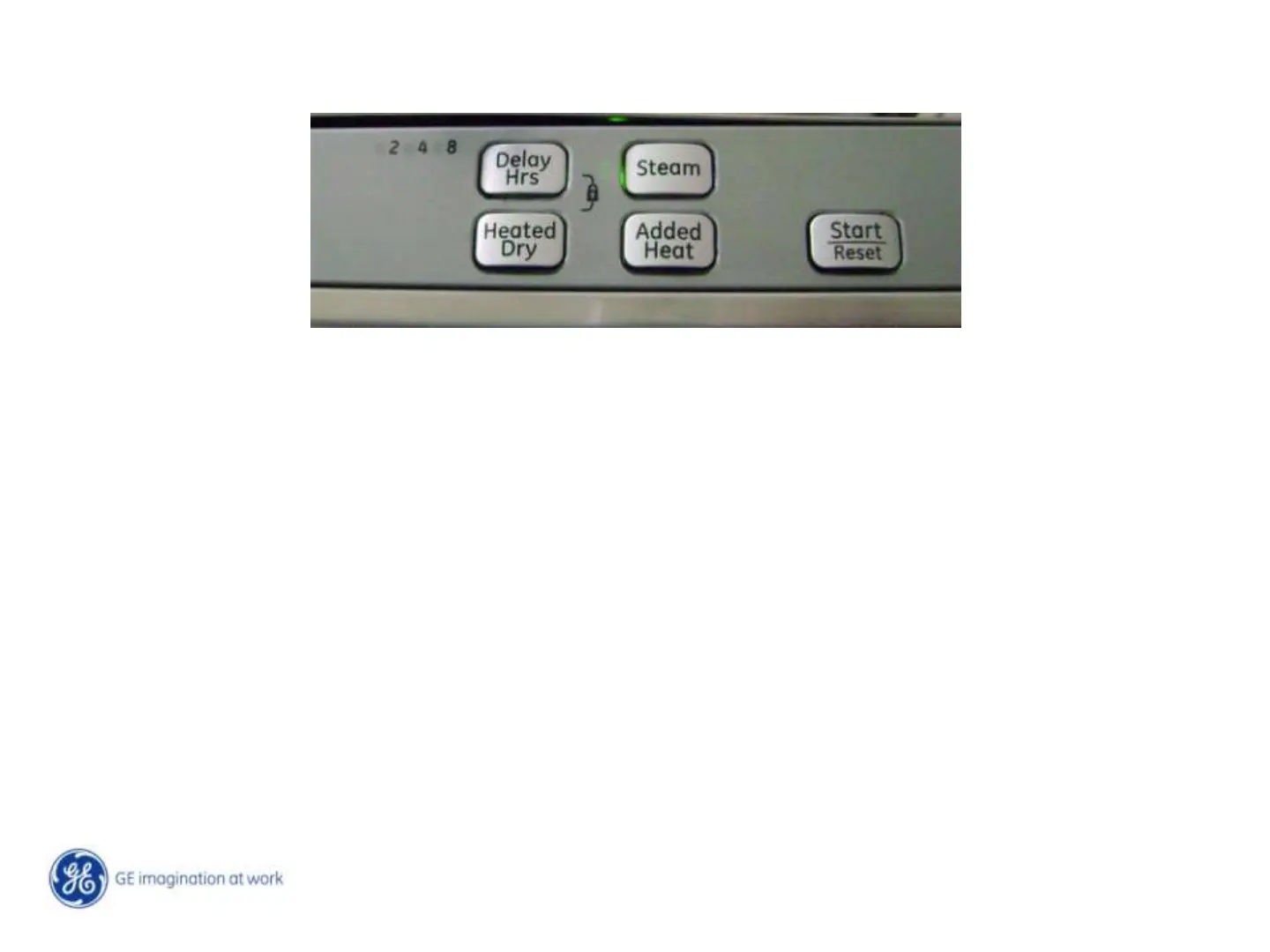

1) Steam is available as an option in almost every cycle, except rinse, which is only
on one or 2 upper end models.
2) When steam is selected the 2 extra wash segments will be added, typically after
the first 2 fills, so the third fill(segment) would start the Steam option. The first
segment of steam will increase the temperature of the water by use of the heater,
in the second segment of the steam option the heater will remain on and the
circulation pump will turn off partially through to allow water to drop onto the hot
calrod and create steam. (Adds 26 minutes to cycle)
The added heat option differs for the various
cycles. Some cycles will not be modified
while, some will increase calrod on time in
main wash and final rinse, while other cycles
will get additional segments added, ie Auto
w/o added heat has 6 segments and with
added heat has 9 segments
