Turbidity Sensor: measures the
amount of suspended particles in
the wash water by transmitting light
and measuring the quantity of that
light.
Note: “Turbidity” is defined as the
amount of suspended particles
suspended in a fluid.

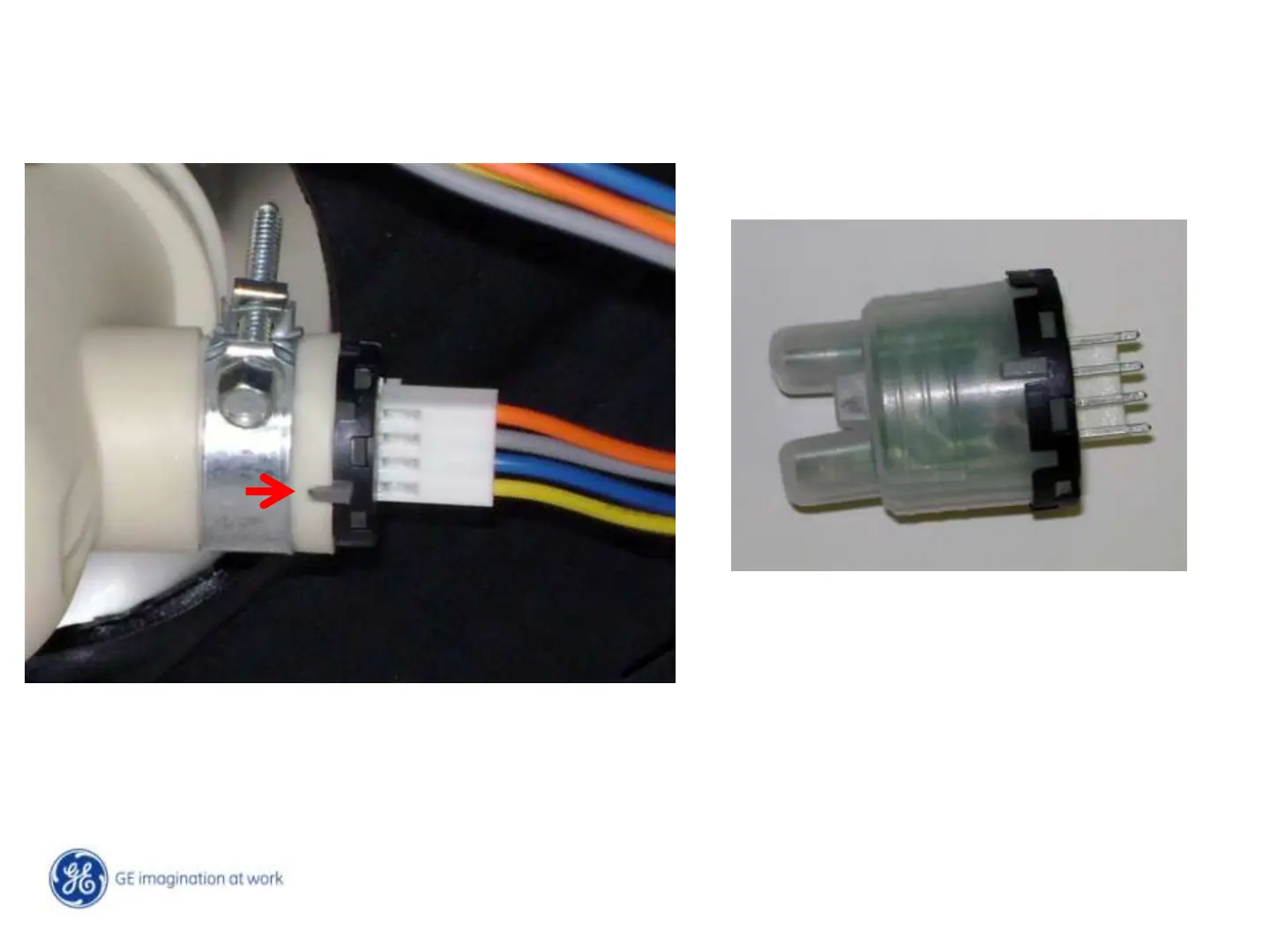

Turbidity Sensor / Thermistor
Turbidity Sensor held in place with clamp.
Note key slot for correctly positioning in sump
