Outer Door Panel

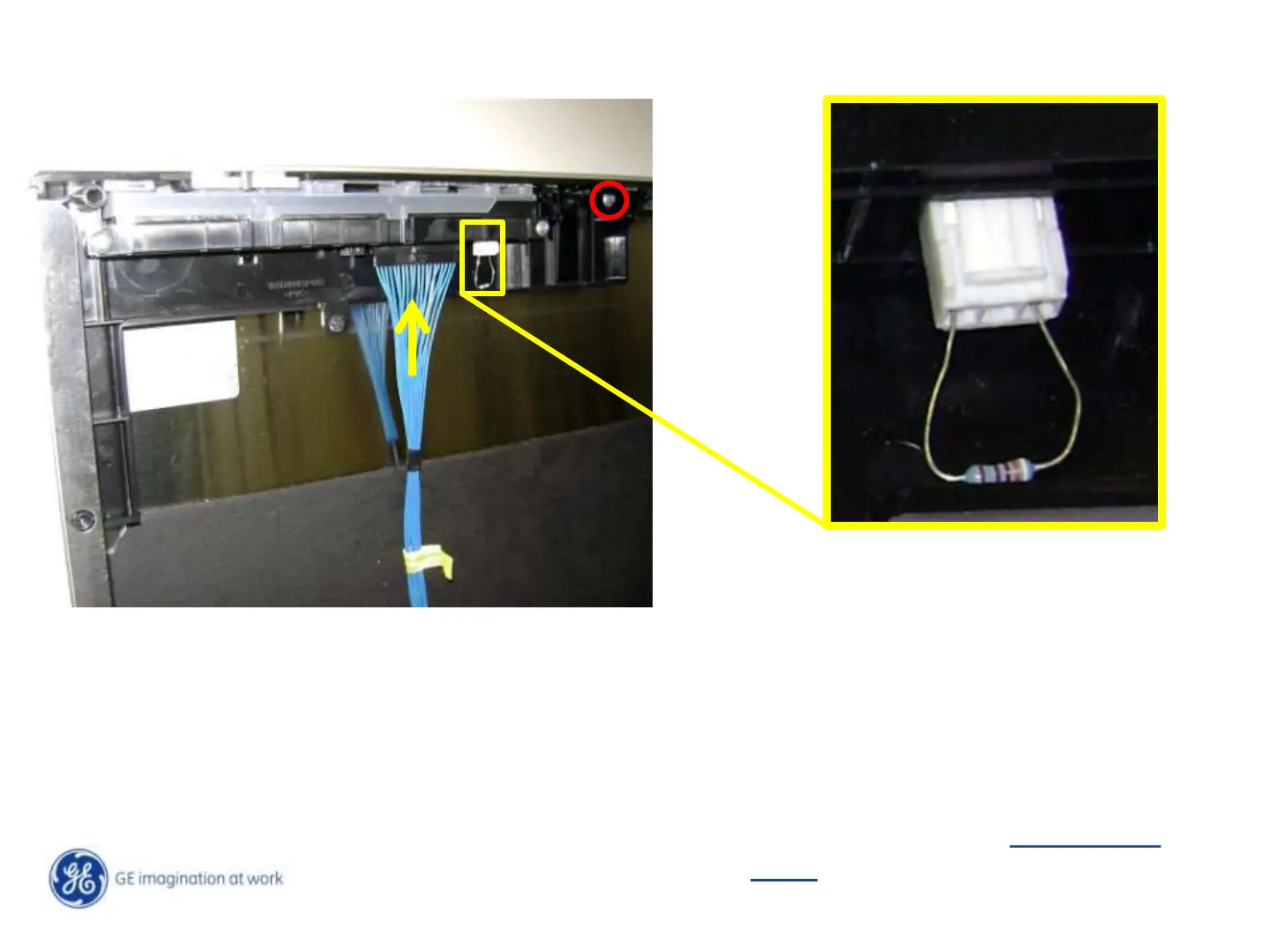

• Disconnect harness from control
• Disconnect “Model Select Plug” (re-use)
• Remove single Phillips head screw
Model Select Plug is a resistor that
the control will read through the
harness from the HMI or UI that it is
plugged in to.
If the model select plug is not
installed, the control will produce a
constant and loud continuous
tone.
