51 /
GE Title or job number /
8/2/2011

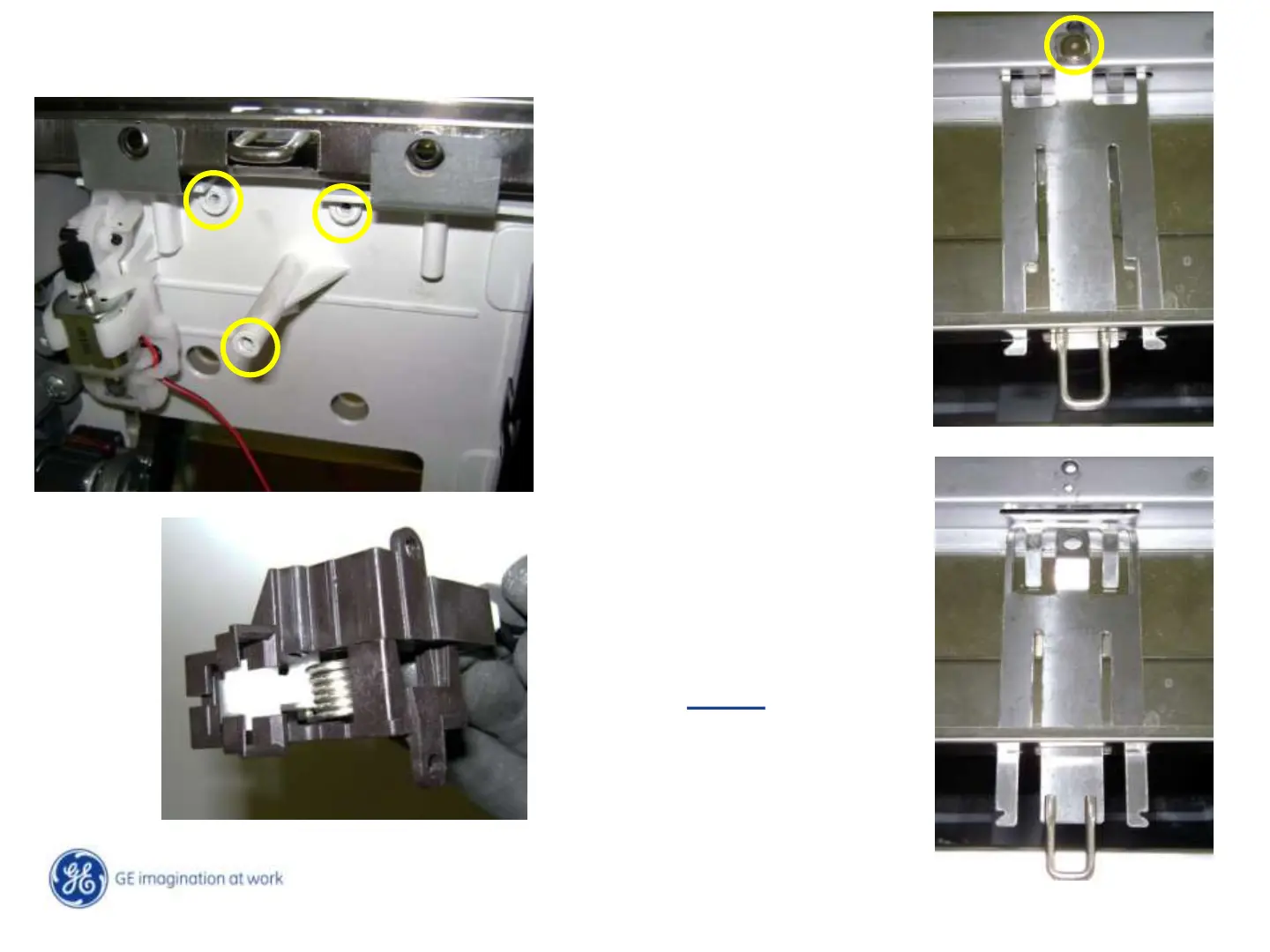

Door Switch - Strike
3 screws removed
Door Switch removed
Door strike held in
place with single
T15 screw
Remove screw
and slide strike
assembly
forward and out
NOTE: No
adjustment
