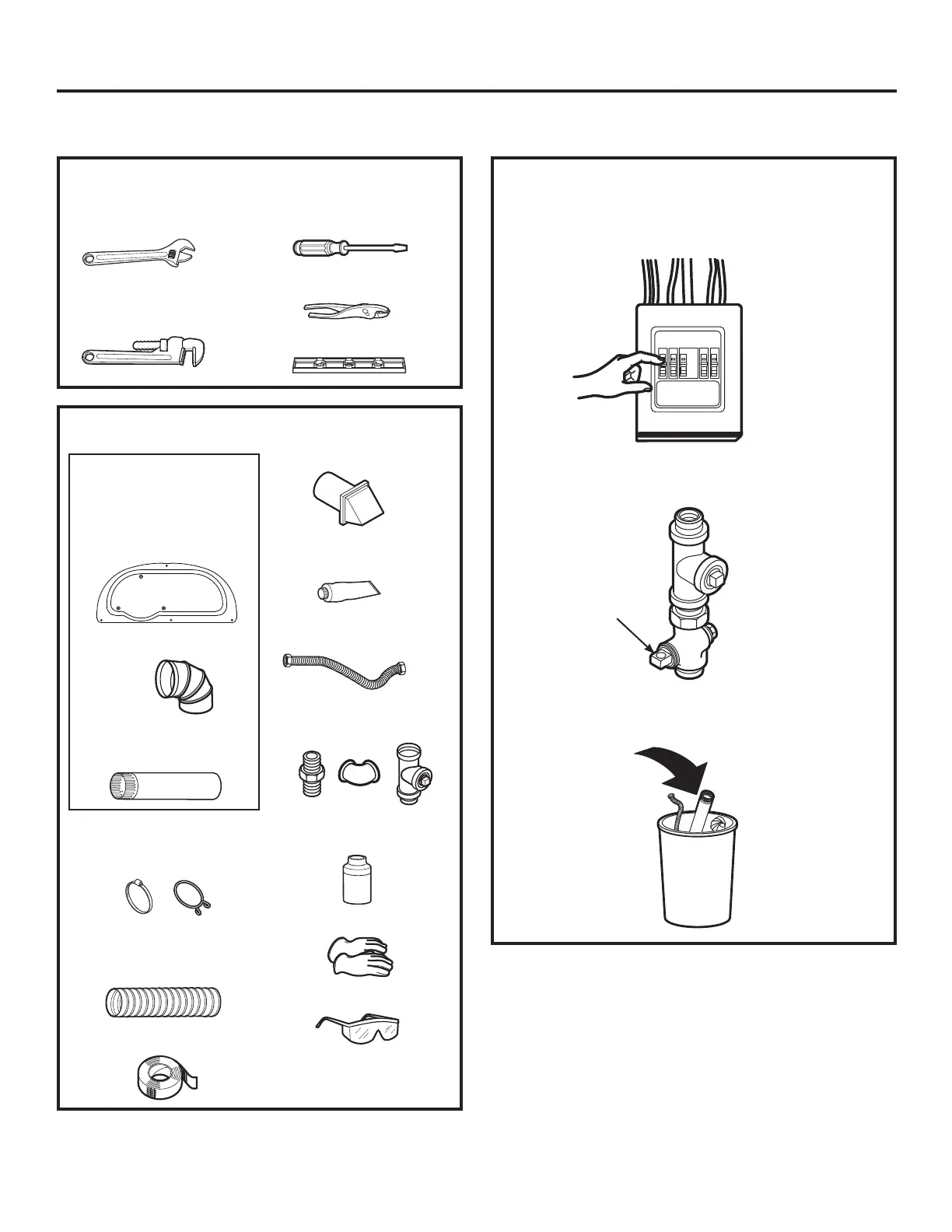

CONNECTING A GAS DRYER (skip for electric dryers)
• Before beginning the installation, turn off the circuit
breaker(s) or remove the dryer’s circuit fuse(s) at
the electrical box. Be sure the dryer
cord is unplugged from the wall.
• Turn the dryer’s gas shut-off valve in the supply line
to the OFF position.
• Disconnect and discard old flexible gas connector
and ducting material.
Shut-off
Valve
MATERIALS YOU WILL NEED
Ŷ
4” (10.2 cm) dia. metal
elbow
Ŷ
Pipe compound or
PTFE tape
Ŷ
Flexible gas line
connector
Ŷ
4” (10.2 cm) Duct
clamps (2) or 4” (10.2
cm) spring clamps (2)
Ŷ
Safety glasses
Ŷ
4” (10.2 cm) dia. metal
duct (recommended)
Ŷ
Gloves
Ŷ
Soap solution for
leak detection
Ŷ
Aluminum foil tape
Ŷ
Gas pipe adapters (2),
elbow and pipe plug
TOOLS YOU WILL NEED
Ŷ
10” (25.40 cm)
Adjustable wrenches (2)
Ŷ
8” (20.32 cm)
Pipe wrench
Ŷ
Flat-blade
screwdriver
Ŷ
Level
Ŷ
Slip-joint pliers
Ŷ
4” (10.2 cm) dia.,
UL-listed flexible
metal duct (if needed)
Ŷ
Access Panel
GFA28DSVN Kit
(All parts included in
this Kit or parts may be
purchased separately)
Ŷ
Exhaust hood
To Next Page
