20 49-3000386 Rev 0
Installation Instructions

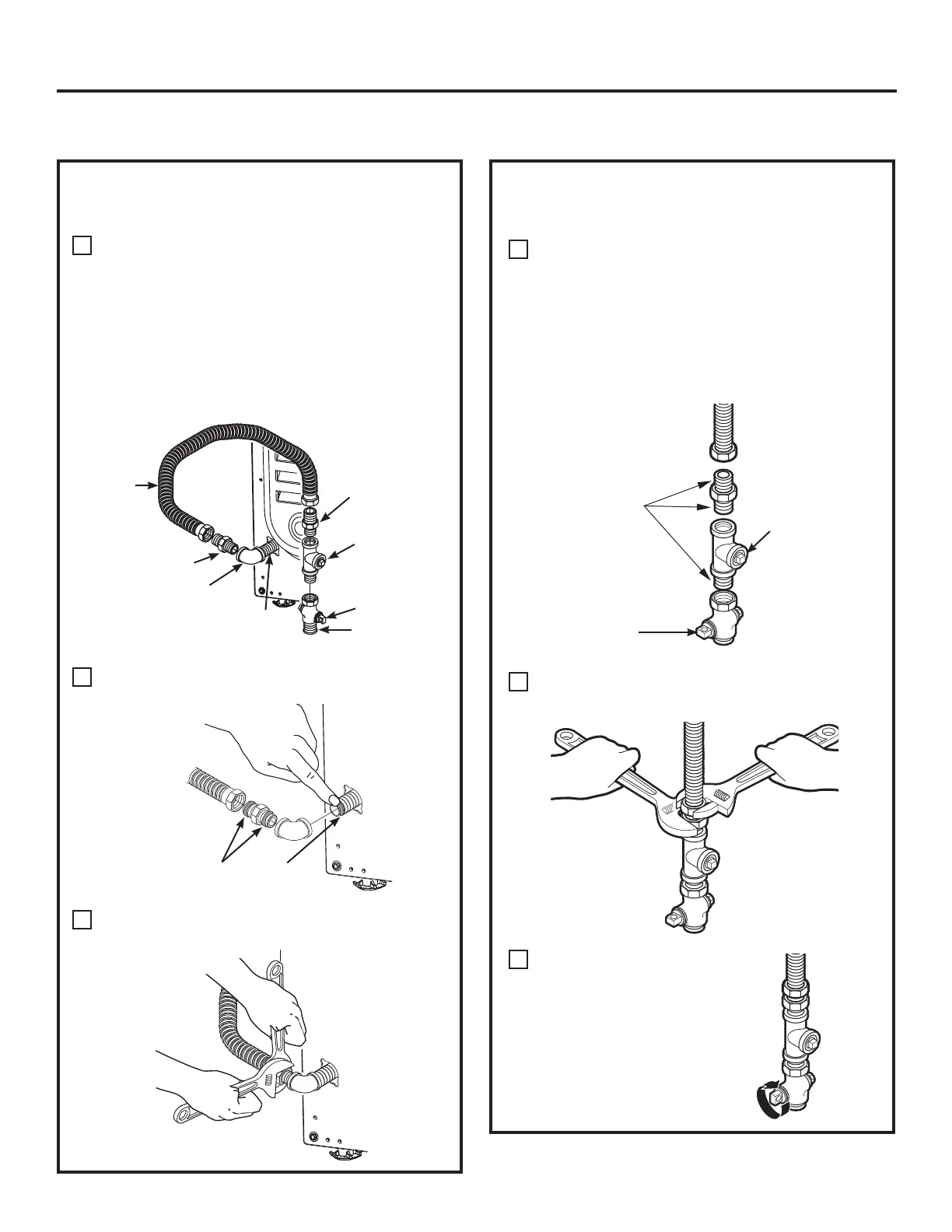

CONNECTING A GAS DRYER (cont.)
Install a 1/8” (3.2 mm) NPT plugged tapping
to the dryer gas line shut-off valve for
checking gas inlet pressure.
Install a flare union adapter to the plugged
tapping.
NOTE: Apply pipe compound or PTFE tape
to the threads of the adapter and plugged
tapping.
Attach the flexible metal gas line connector to
the adapter.
B
Tighten the flexible gas line connection, using
two adjustable wrenches.
C
D
Tighten all connections, using two adjustable
wrenches. Do not overtighten.
E
CONNECTING THE DRYER TO
THE GAS SUPPLY (cont.)
Open the gas shut-off valve.
F
Apply pipe compound
or PTFE tape to all
male threads.
Shut-Off
Valve
Plugged
Tapping
CONNECTING THE DRYER TO
THE GAS SUPPLY
Install a female 3/8” (9.6 mm) NPT elbow at
the end of the dryer gas inlet.
Install a 3/8” (9.6 mm) flare union adapter to
the female elbow.
IMPORTANT: Use a pipe wrench to securely
hold on to the end of the dryer gas inlet to
prevent twisting the inlet.
NOTE: Apply pipe compound or PTFE tape to
the threads of the adapter and dryer gas inlet.
A
Elbow
Adapter
Items not supplied
Adapter
1/8” (3.2 mm)
NPT Pipe Plug
for Checking
Gas Inlet
Pressure
Shut-Off Valve
Pipe size at
least 1/2” (12.7
mm)
3/8” (9.6 mm)
NPT
New Metal
Flexible Gas
Line Connector
Apply pipe compound to the
adapter and dryer gas inlet.
