Installation Instructions
TOOLS YOU WILL NEED
Ŷ
Phillips screwdriver
Ŷ
Pliers
Ŷ
Gloves
Ŷ
Open-ended wrench
Ŷ
Bracket 32
(2)
Ŷ
Spacer (2)
Ŷ
#8 1/2" (12.7 mm)
Screws (16)
CONTENTS
Ŷ
Level
Ŷ
Bracket 34
(2)

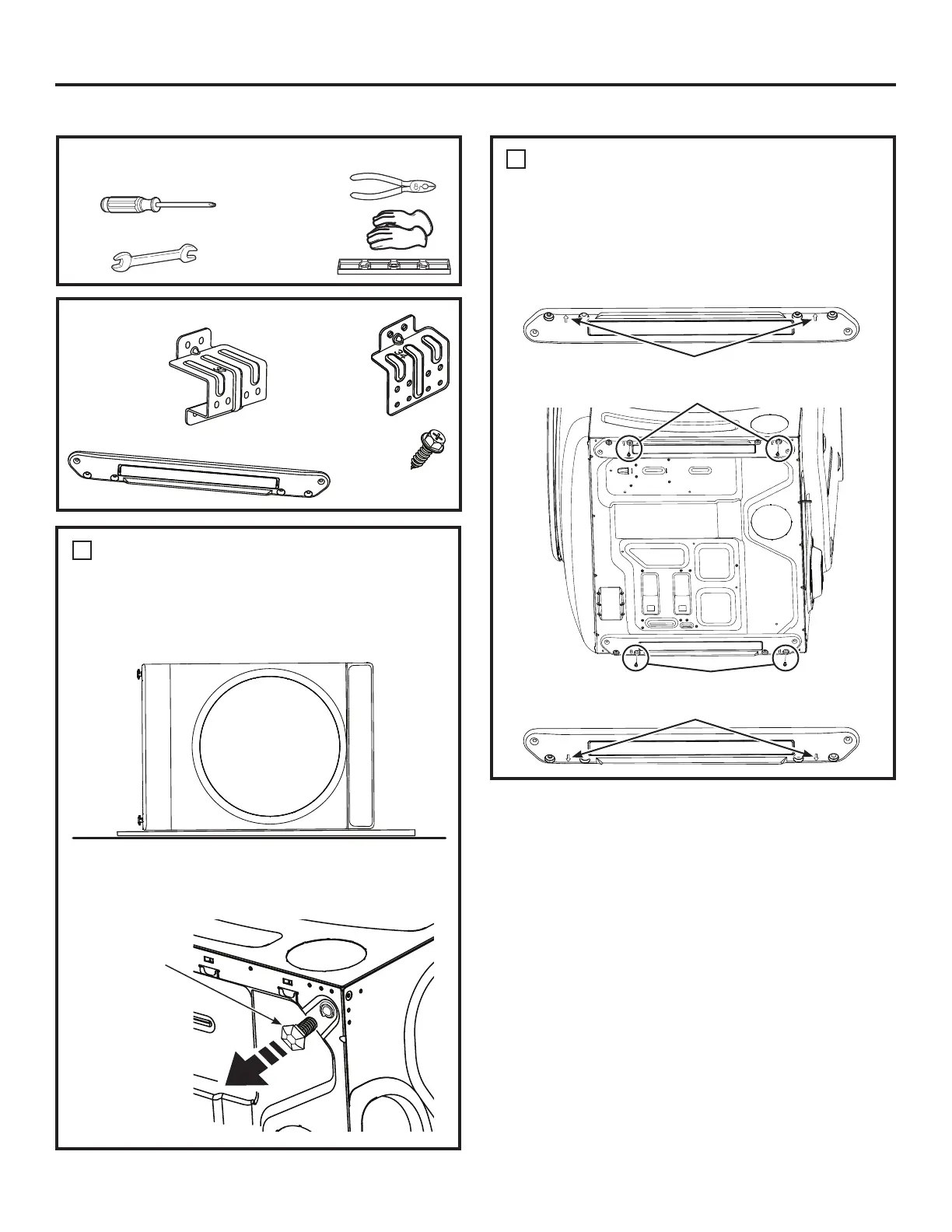

REMOVE THE DRYER LEVELING
LEGS
A. Carefully lay the dryer on its back or side. Use the
packing material so you don’t scratch the finish on
the dryer.
1
B. Use an open-end wrench or pliers to remove the
dryer leveling legs. NOTE: Retain the leveling legs
for future use.
Back out and
remove all 4
leveling legs
INSTALL SPACERS TO THE
DRYER BOTTOM
Locate a spacer on the bottom side with its holes over
the leveling leg holes. Attach spacer using 2 screws.
Attach the second spacer on the other bottom side
using 2 screws. NOTE: The arrows on the spacers
should point to the outside.
2
Attach spacer using 2 screws
Attach spacer using 2 screws
Front Back
Make sure the arrows on the spacer point to the outside.
Make sure the arrows on the spacer point to the outside.
STACKING THE WASHER AND DRYER
(Optional Kit GFA28KITN)
To Next Page
