EXHAUSTING THE DRYER (cont.)
BOTTOM VENTING (cont.) BOTTOM VENTING (cont.)

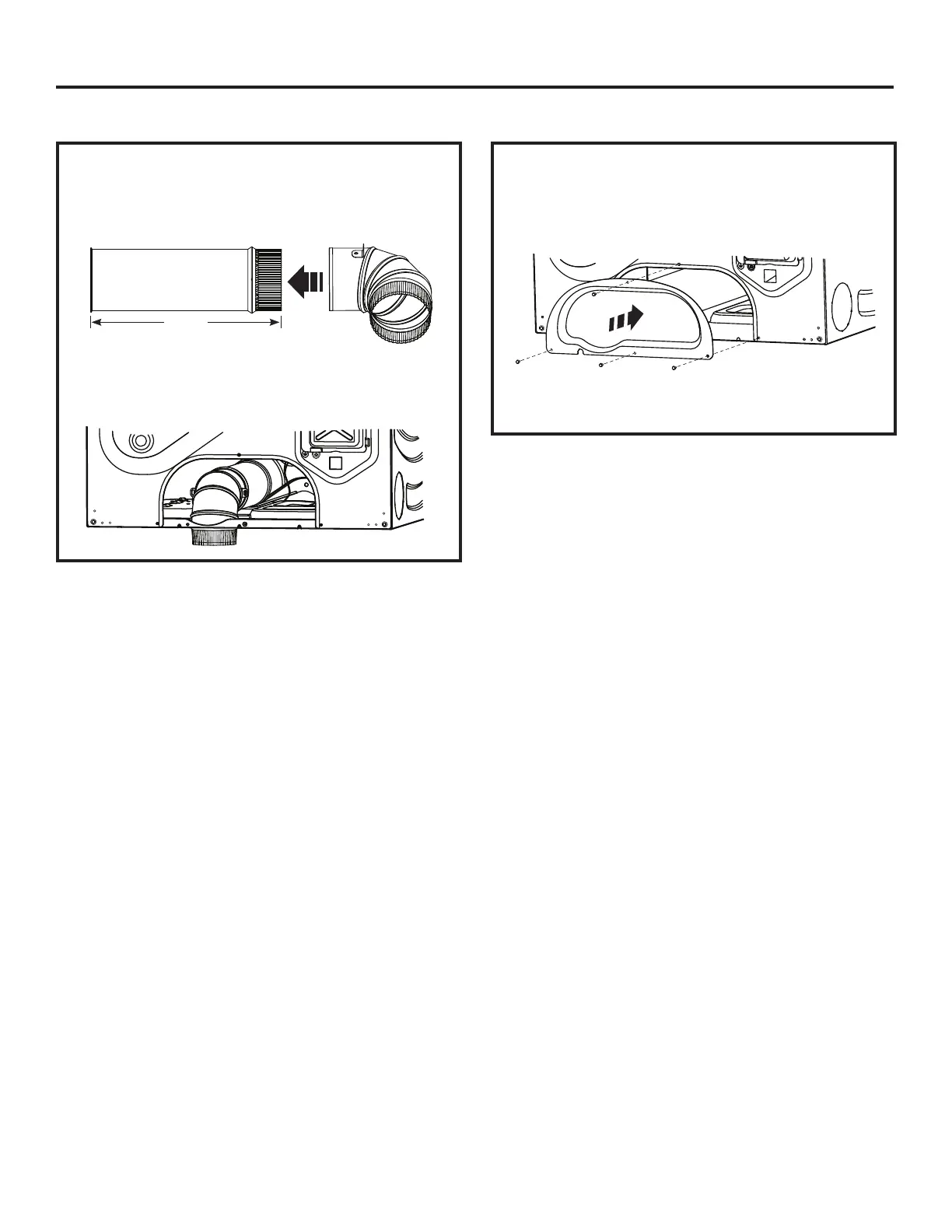

• Locate the 12-1/2” exhaust duct and elbow duct
from the kit and assemble together. Apply duct tape
around the joint to eliminate leaks between ducts.
12-1/2"
• Install the new access panel from the kit.
• Secure access panel with 4 screws saved from
earlier.
NEVER LEAVE THE BACK OPENING WITHOUT
THE ACCESS PANEL.
• Insert and connect the elbow/exhaust duct
assembly to the blower housing and insert the
elbow through the bottom knockout.
To Next Page
