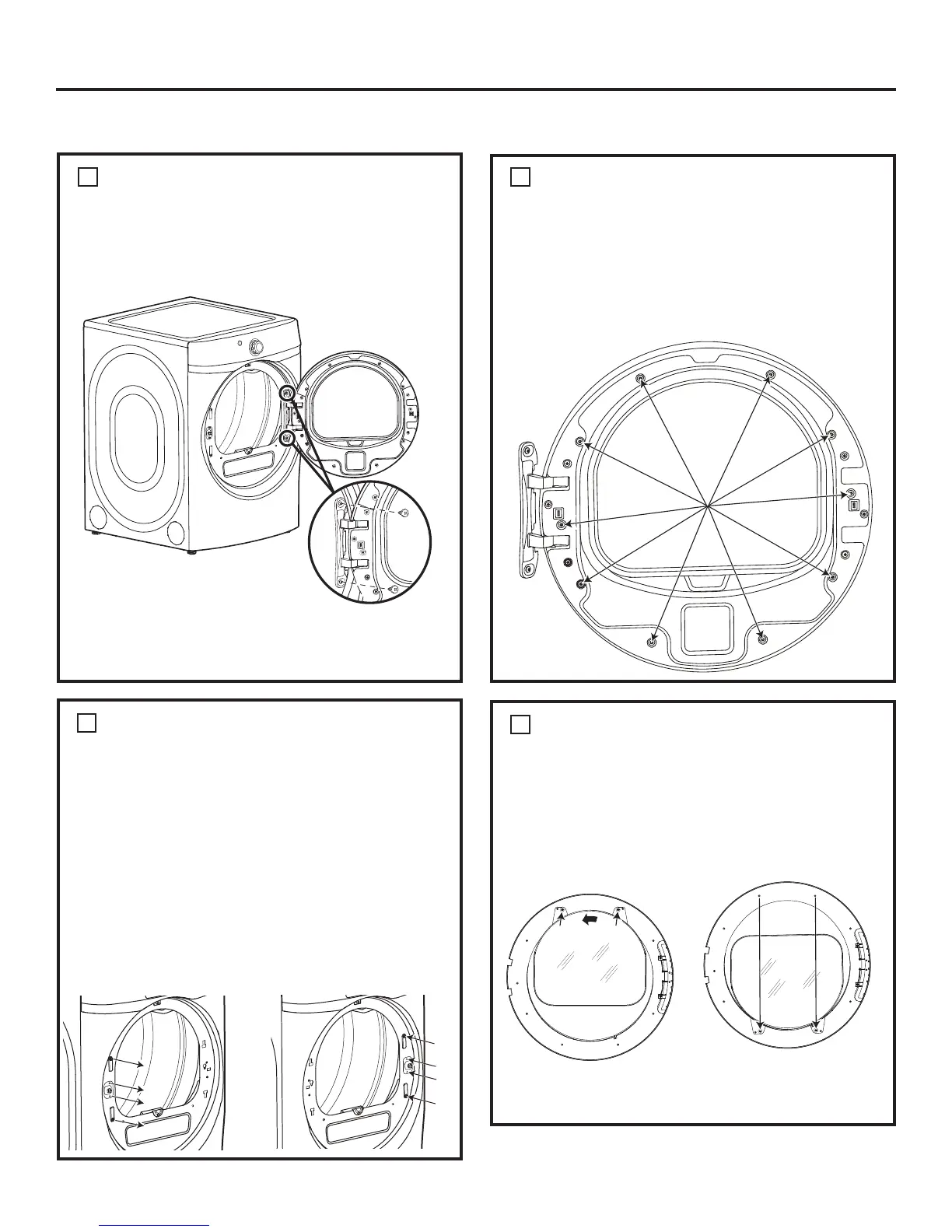

REMOVE THE DOOR ASSEMBLY
A. Open the door to fully.
1
RE-LOCATE THE HINGE STRIKER AND
FRONT PANEL PLUGS
2
IMPORTANT: Note the location of the hinge (left or
right) before removing.
A. Remove 2 screws (#10 x 5/8”) and front panel
plugs from the front panel.
B. Re-install front panel plugs and screws on
opposite side of the door opening.
C. Remove 2 screws (#8 x 1/2”) and hinge striker
from the front panel.
D. Rotate hinge striker 180 degrees and re-install
with screws on the opposite side of the door
opening.
REVERSING THE DOOR SWING (if desired)
Installation Instructions
32
B. Remove 2 screws (#10 x 5/8”) from the hinge,
starting with the bottom screw. The door will tilt
away from the front panel, but will come to rest
in place.
DISASSEMBLE THE DOOR ASSEMBLY
3
A. Place door on a soft and flat surface with the
inner door frame facing upward.
B. Remove 10 screws (#8 x 7/8”) from the perimeter
of the door frame.
C. Separate the inner door frame from the chrome
door cover. Set the inner door frame aside on a
soft and flat surface.
C. Lift the door slightly and unhook if from the front
panel.
D. Place the door on a soft and flat surface.
RE-LOCATE THE DOOR MASK
4
A. Place the chrome door cover on a soft and flat
surface so that the door mask is facing upwards.
B. Remove 2 screws (#8 x 1/2”) that secure the door
mask in place.
C. Rotate the door mask 180 degrees and re-install
screws to secure door mask.
BEFORE
AFTER
D. Re-location is complete. Set chrome door cover
aside.
