Installation Instructions

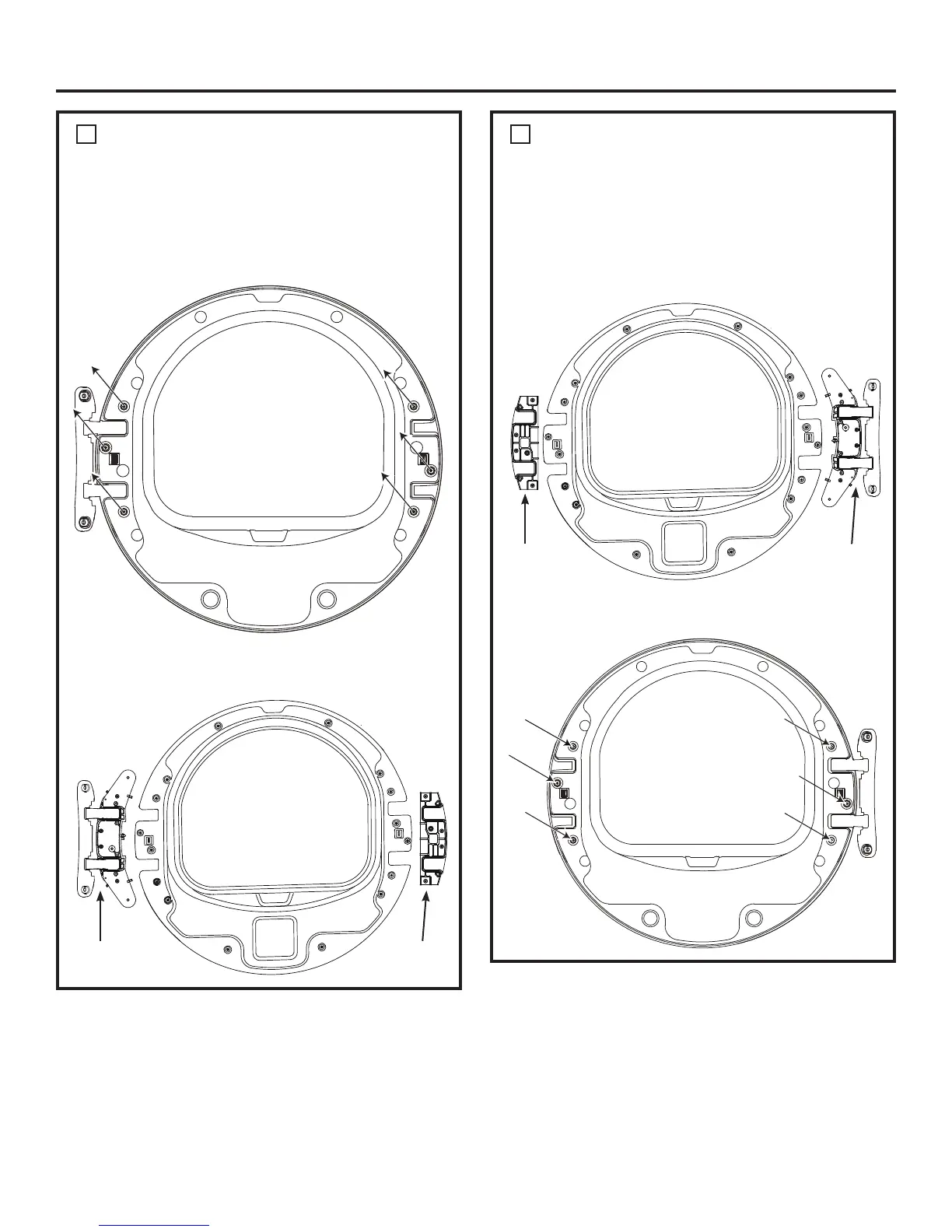

RE-LOCATE HINGE ASSEMBLY AND
HANDLE SPACER
5
A. Place the inner door frame on a soft and flat
surface so that the inner door gasket is facing
updwards.
B. Remove 6 screws (#8 x 1/2”) that secure the
hinge assembly and handle spacer.
D. Rotate hinge assembly 180 degrees and
re-locate on the opposite side of the inner door
frame.
E. Rotate the handle spacer 180 degrees and
re-locate on the opposite side of the inner door
frame.
RE-LOCATE HINGE ASSEMBLY AND
HANDLE SPACER (CONT.)
5
F. Re-install screws securing hinge assembly and
handle spacer.
C. Separate the hinge assembly and handle spacer
from the inner door frame.
Hinge
assembly
Handle
spacer
Hinge
assembly
Handle
spacer
