Installation Instructions
REVERSING THE DOOR SWING (if desired)

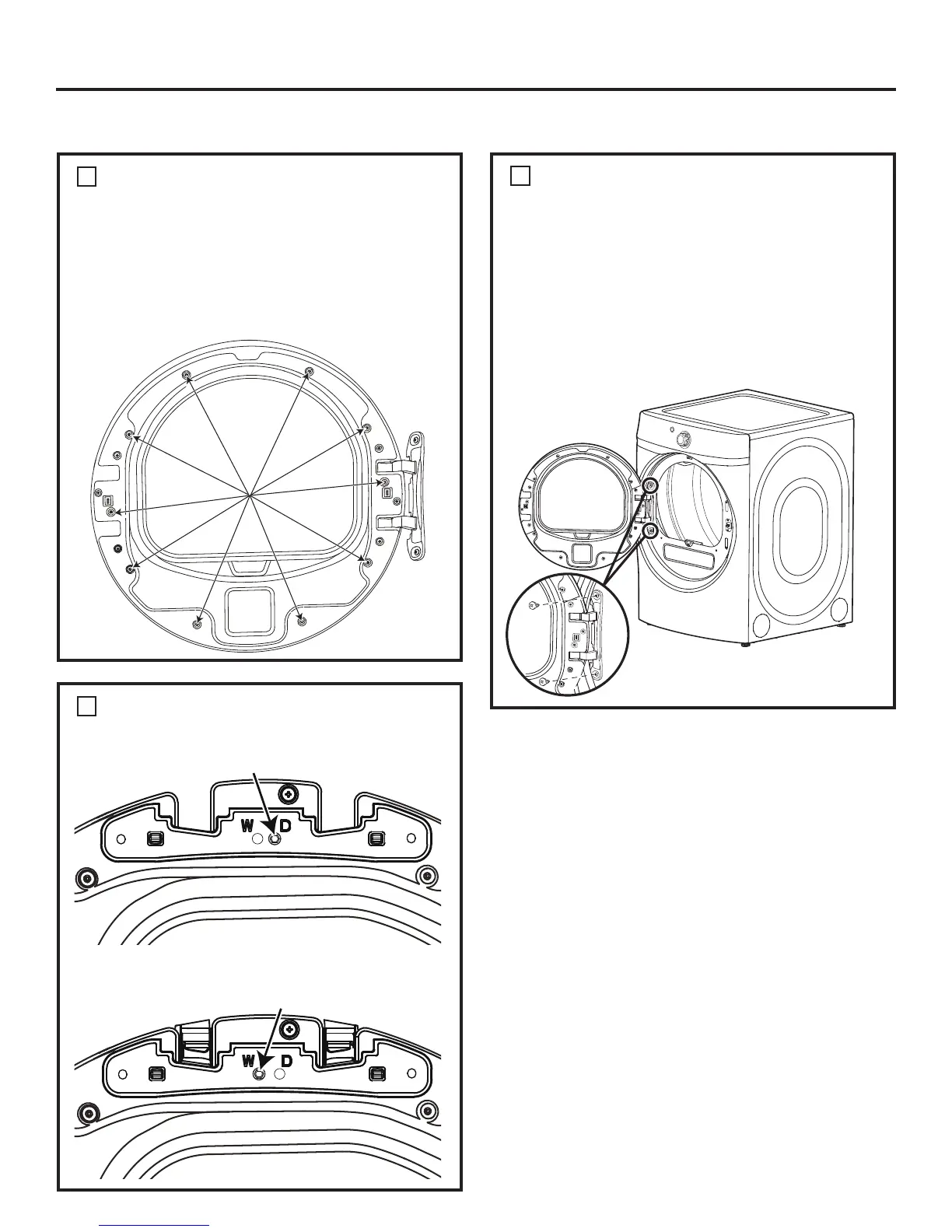

RE-ASSEMBLE DOOR ASSEMBLY
6
A. Place the chrome door cover on a soft flat
surface with the plastic outer protect cover
facing down.
B. Lower the inner door frame onto the chrome
door cover.
C. Ensure that all screw holes are aligned and
re-install 10 screws (#8 x 7/8”).
RE-LOCATE HINGE PIN SCREW
7
A. Remove the hinge pin screw from the hole
labeled “D”.
RE-INSTALL DOOR ASSEMBLY
8
A. Install the door assembly by guiding the hinge
pin screw head through the key hole on the
front panel and lowering the door assembly into
place.
B. Open the door approximately 140 degrees to
provide access to the screw hole locations.
C. Starting with the top screw, re-install the 2
screws (#10 x 5/8”) which secure the door to the
front panel.
B. Re-install the hinge pin screw into the hole
labeled “W”.
To Next Page
