Disassembly – Drum Support & Drum(3)
35
Removal:
8. Remove belt from pulleys if
necessary.

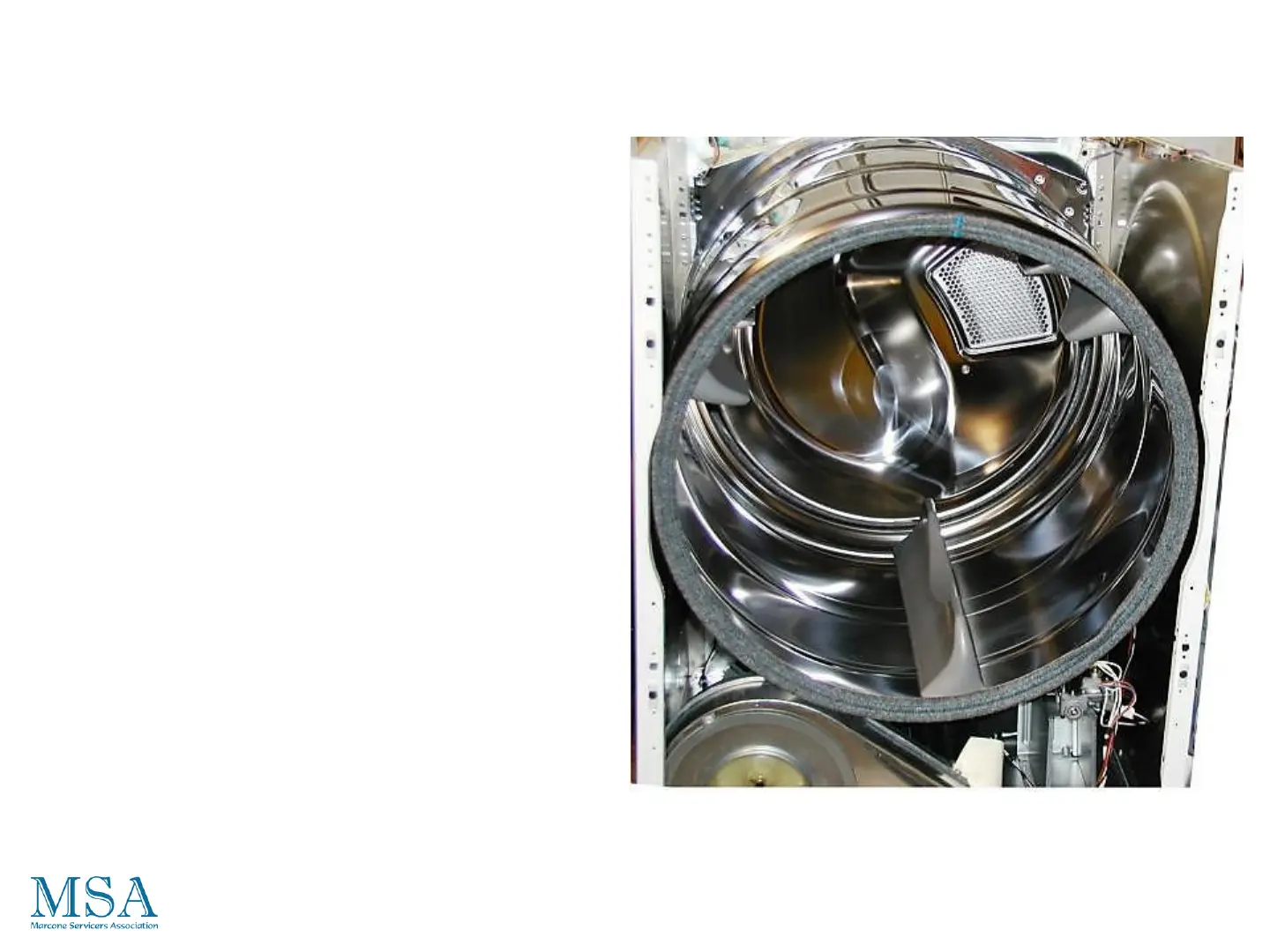

9. Using belt as a handle lift drum
and remove from machine.
