Freezer Fan

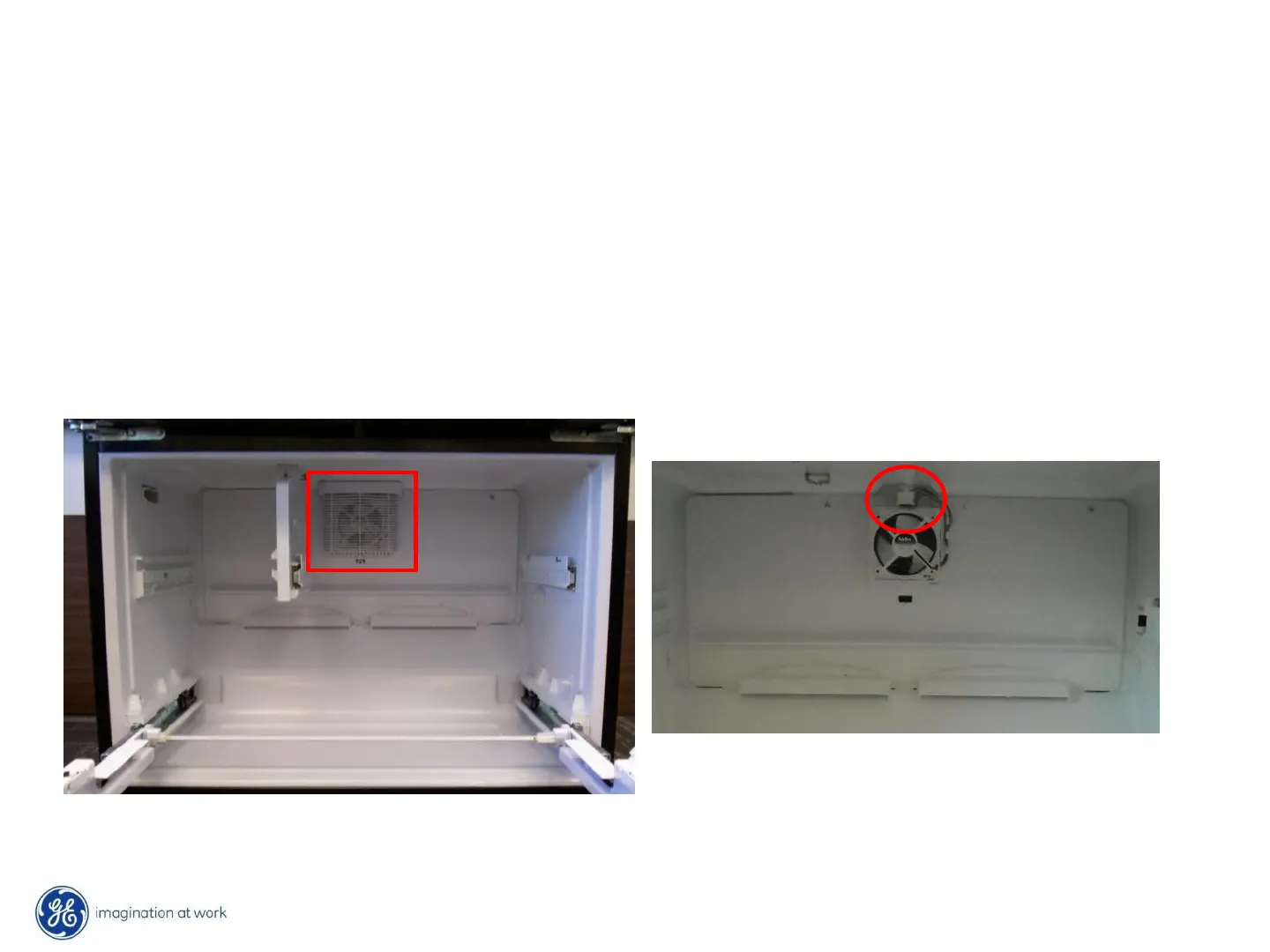

¾ The freezer fan is mounted to the freezer evaporator
cover and uses a grille to direct the air flow.
¾ The freezer fan will operate at 3 speeds with RPM
feedback to the control:
¾ The fan connector can be accessed for multi-meter
checks by removing only the grille.
1. LOW SPEED = 2200 RPM*
2. MEDIUM SPEED = 2400 RPM*
3. HIGH SPEED = 2500 RPM*
Note fan speed range is 1500 – 2900 RPM*
* Values are approximate and preliminary
