GE GFE29HSDASS

94
5/4/2012
USB PORT

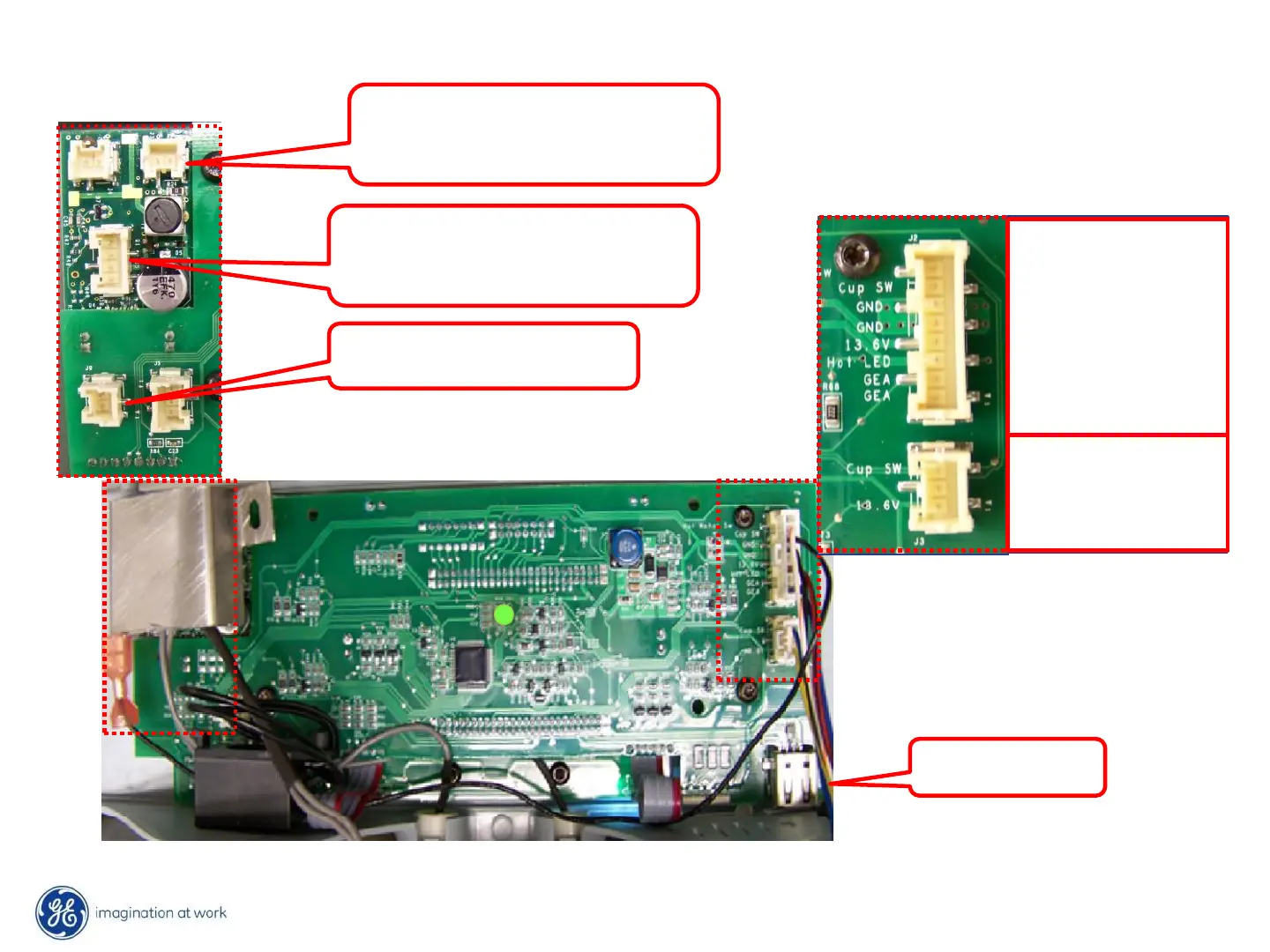

Consumer Control Board (PFE29)
J3 and J4 UPPER
ULTRASONIC SENSORS
J4 J3
J5 LOWER
ULTRASONIC SENSORS
J7 SOUND MODULE
J7
J5
8- UNUSED
7- HOT H20 CUT SW
6- BOARD GND
5- 12VDC –
4- 12VDC +
3- HOT H2O LED
2- COMMUNICATION
1-UNUSED
J4
3- PADDLE SWITCH
2- PADDLE SWITCH
1- PADDLE SWITCH
J4
J2
J2
A blinking green LED means the board’s DC power supply is on and operating.
